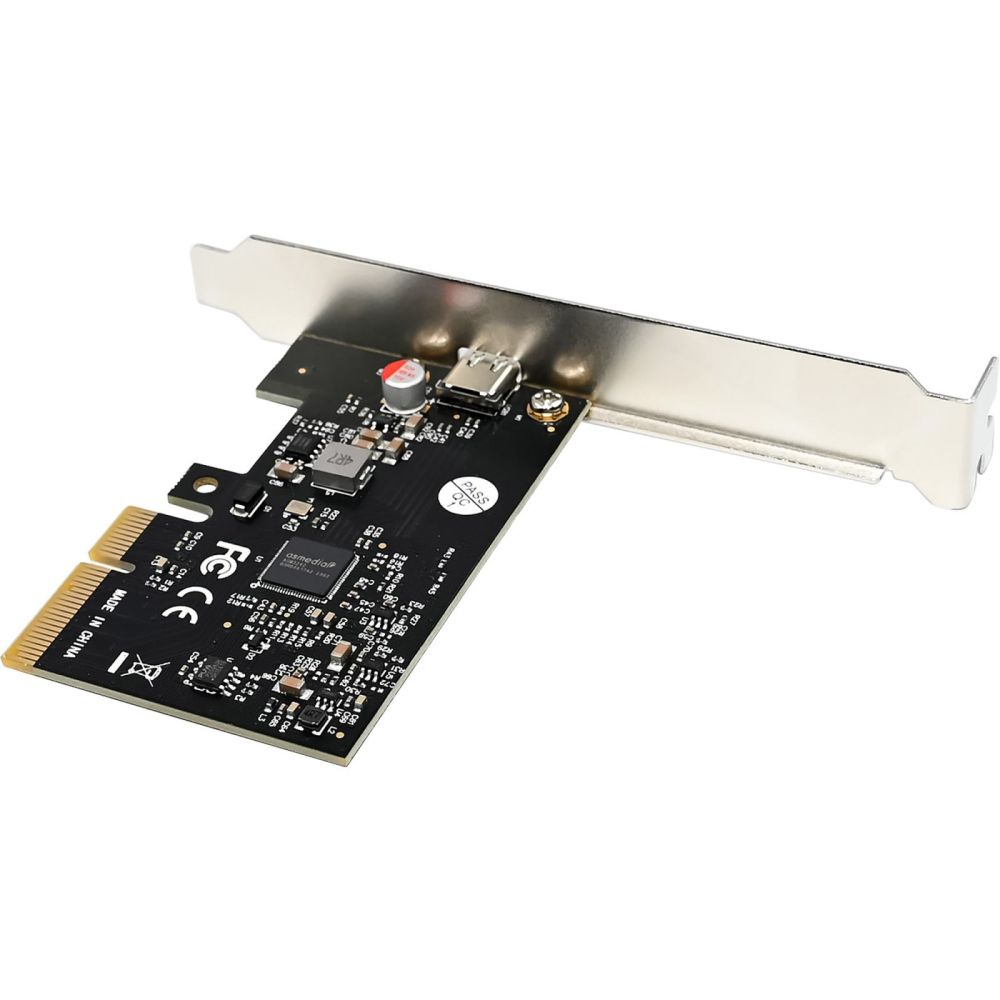

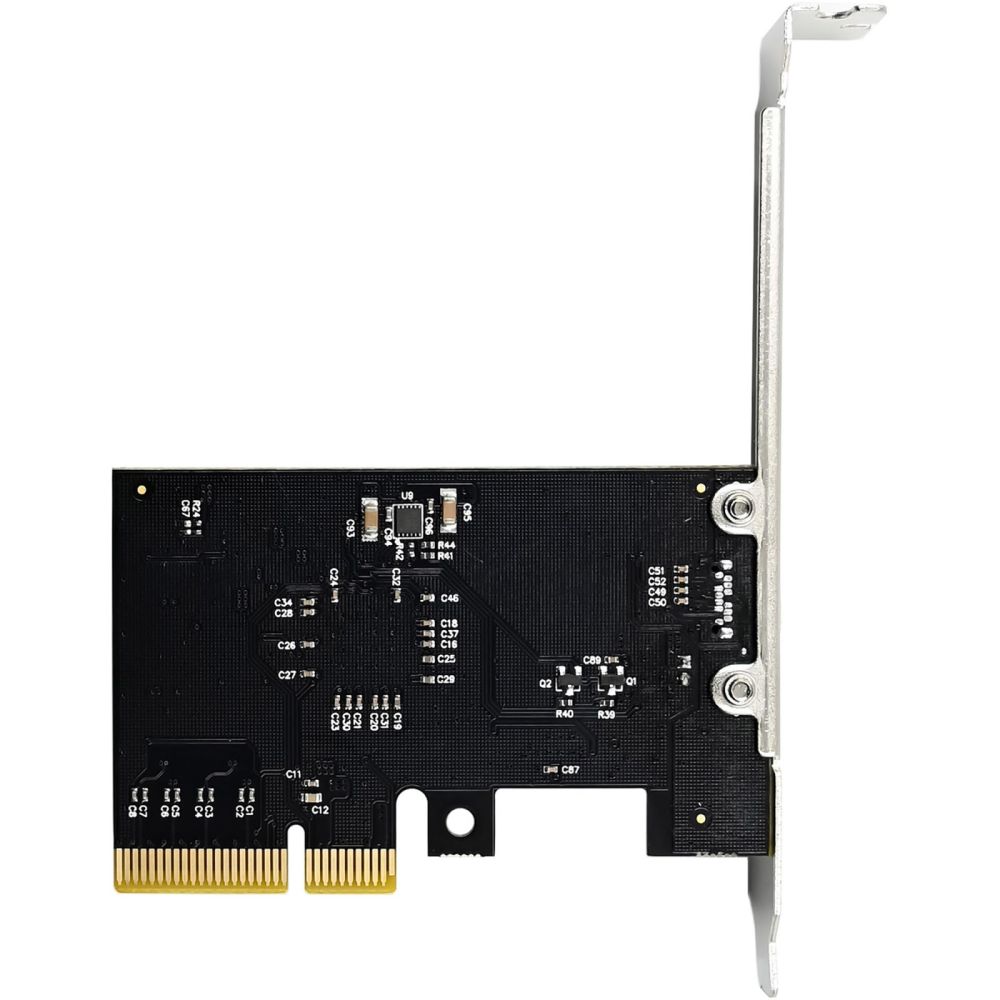

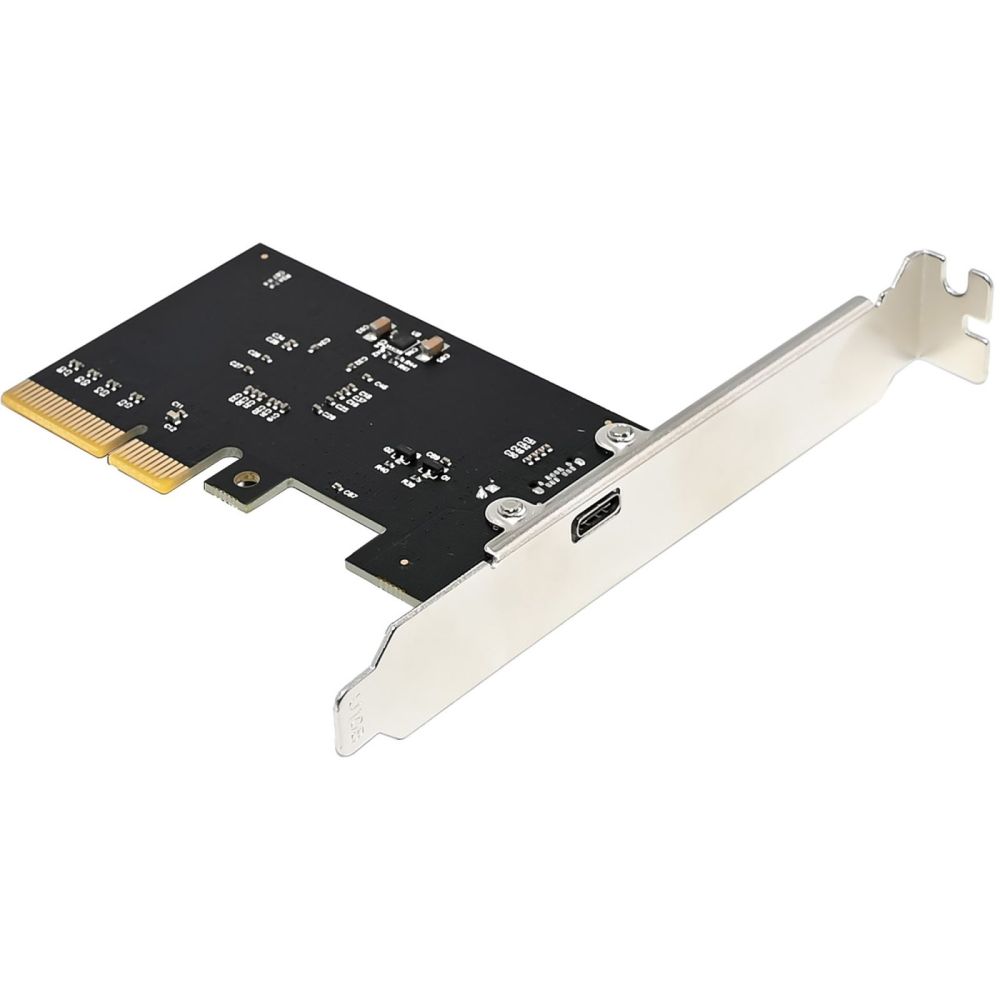

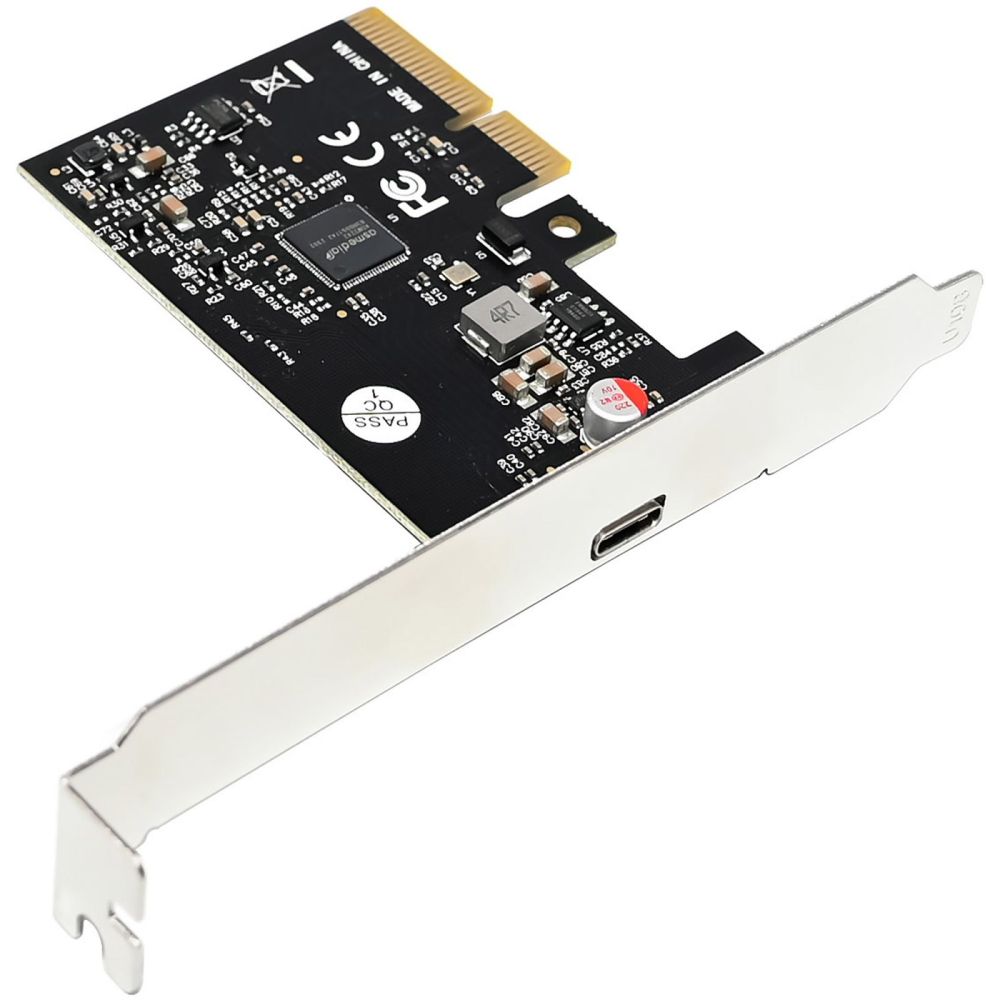

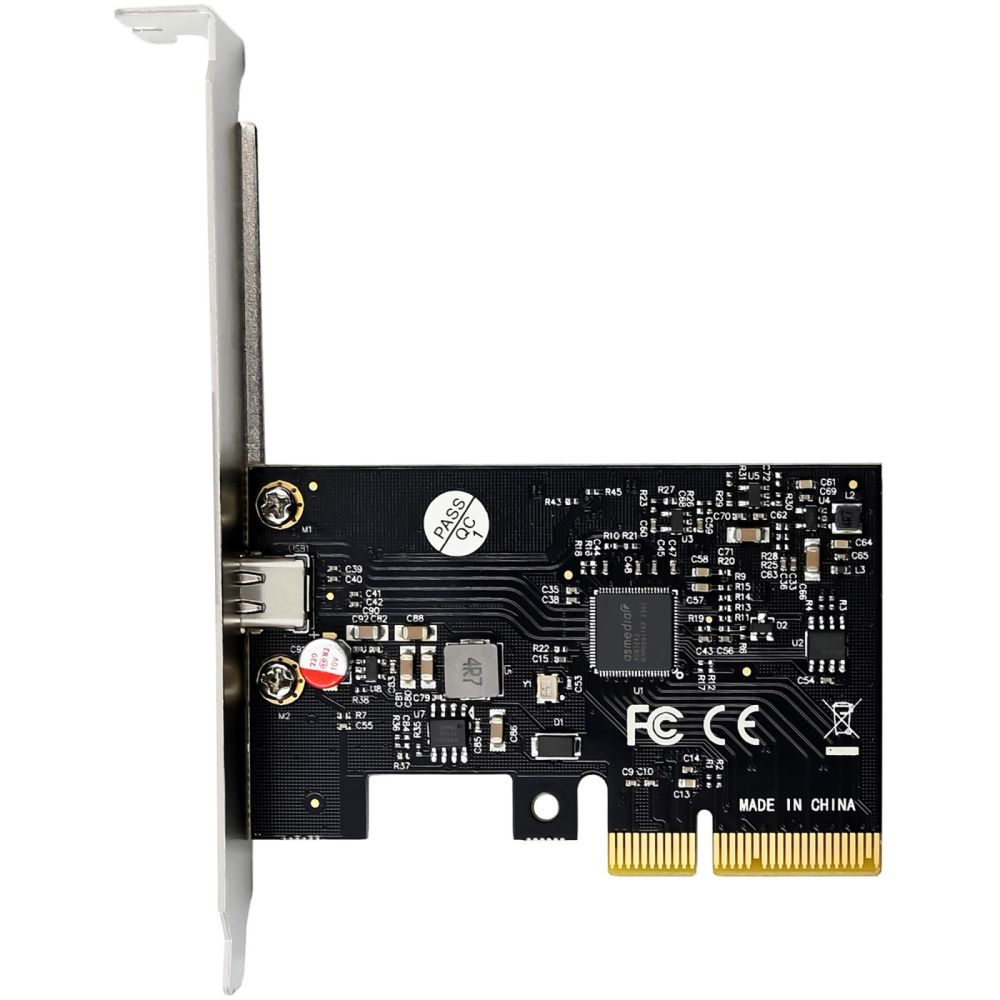

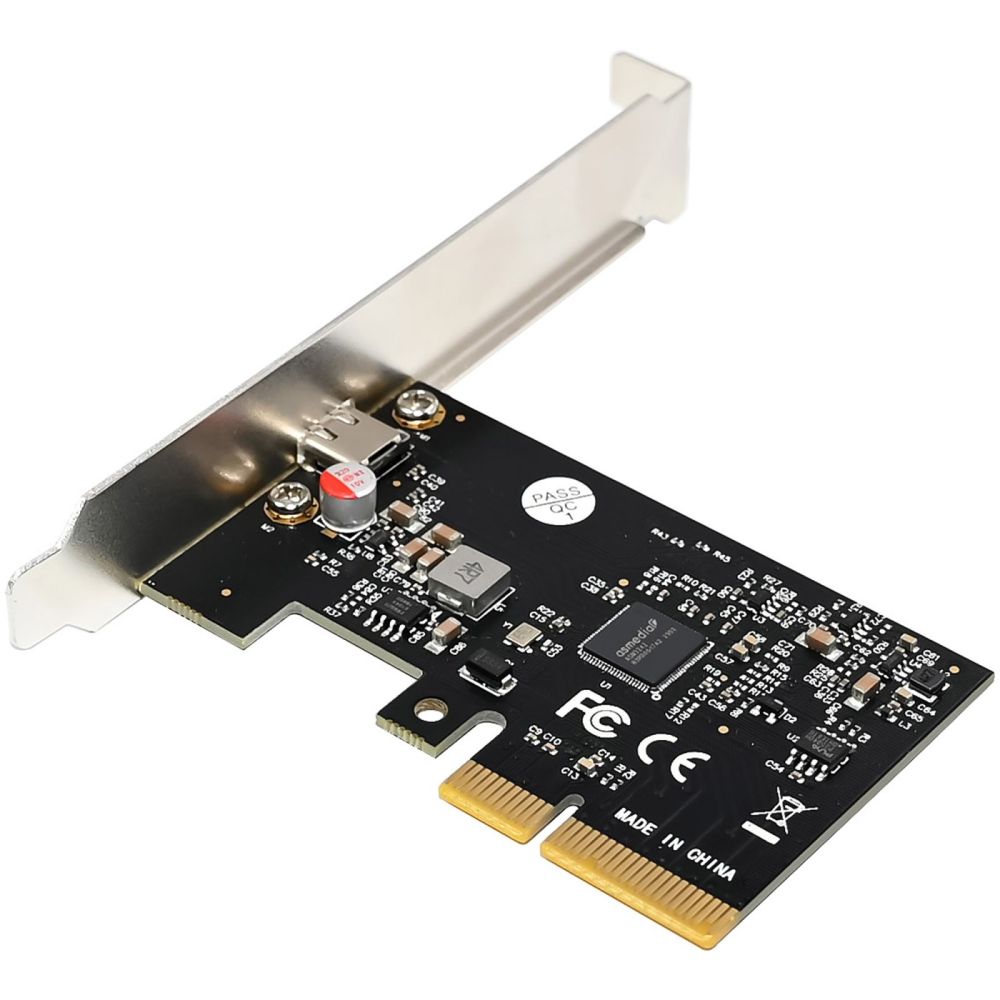

InLine® interface card, PCIe x4, 1x USB-C socket, USB 3.2 Gen.2x2 content_copy

Connection: 1x USB-C socket
Specification: USB 3.2 Gen.2x2 with up to 20 Gb/s
PCIe 3.0 x4 interface - compatible with x4, x8 and x16 slots
ASMedia ASM3242 chipset for high performance and stability
Supports UASP (USB Attached SCSI Protocol) for optimized data transfer
Plug & Play functionality - no driver required
The InLine® PCIe interface card adds a high-performance USB-C port with support for the USB 3.2 Gen.2x2 standard to your PC. This enables extremely fast data transfer rates of up to 20 Gb/s - ideal for NVMe SSDs, external storage solutions and high-performance peripherals.
Thanks to the PCIe 3.0 x4 connection, the card offers high bandwidth and is compatible with x4, x8 and x16 slots. With Plug & Play functionality, modern UASP support and optimized bandwidth management, it is a powerful addition to any system.
Technical data:
Bus type & PCIe: PCIe v3.0 (8 GT/s) x4 lane (compatible with x4, x8, x16 slots)
Chip set: ASMedia ASM3242
Power supply via USB-C: Up to 5 V/3 A
Form factor: Low profile
Dimensions: 79 mm x 51 mm (PCIe board)
Supported USB speeds:
SuperSpeed USB: 20 Gb/s, 10 Gb/s, 5 Gb/s
HiSpeed USB: 480 Mb/s
Features:
Plug & Play - no additional drivers required
Supports UASP (USB Attached SCSI Protocol) for optimized data transfer
Overcurrent protection for enhanced security
Optimized bandwidth by supporting multiple INs - ensures a stable and efficient connection
Backwards compatible with older USB standards
Operating system support:
Windows: 11, 10, 8, 7
Windows Server: 2008 R2, 2016, 2019, 2021
Linux: from kernel version 2.6.30
macOS: 10.8 and newer
Environmental conditions:
Operating temperature: 0 °C to 85 °C
Storage temperature: -25 °C to 85 °C
Maximum humidity: 90 %
Scope of delivery:
1x InLine® interface card, PCIe x4, 1x USB-C, USB 3.2 Gen.2x2

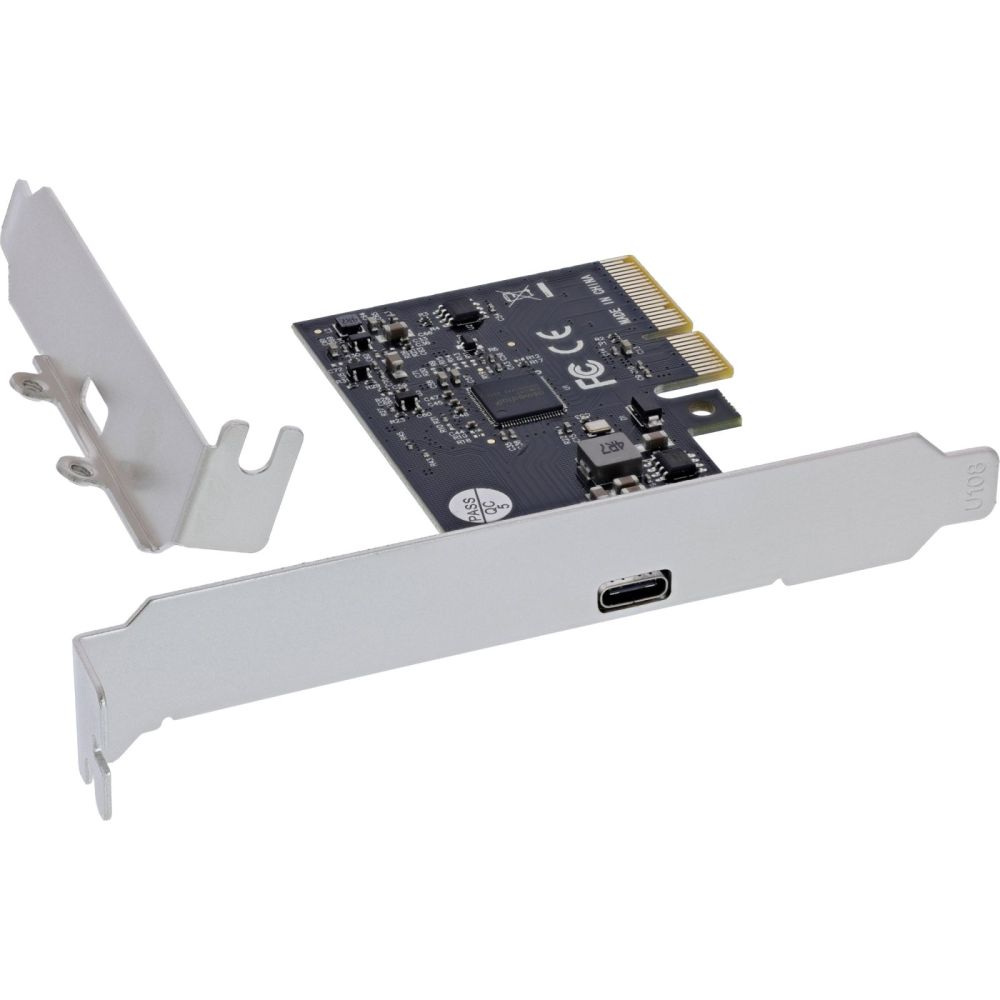

1x low-profile slot bracket
1x instruction manual (German/English)

Design
Country of origin	Taiwan
Internal
Features
Chipset	ASMedia ASM3242
Connector 1 gender	Female
Data transfer rate (max)	20 Gbit/s
UASP support
Plug and Play
Operational conditions
Operating temperature (T-T)	0 - 85 °C
Storage temperature (T-T)	-25 - 85 °C
Operating relative humidity (H-H)	0 - 90%
Other features
Dimensions (WxDxH)	91 x 0.94 x 120 mm
Packaging data
Package width	140 mm
Package depth	33 mm
Package height	155 mm
Package weight	35 g
Package type	Hanging box
Mounting brackets included
Manual
Ports & interfaces
Host interface	PCIe
Host interface gender	Male
Output interface	USB Type-C
Expansion card form factor	Low-profile
Expansion card standard	PCIe 3.0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Power
Output voltage	5 V
Output current	3 A
System requirements
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8
Mac operating systems supported	Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia
Linux operating systems supported	Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4, Linux Kernel 5.10, Linux Kernel 5.11, Linux Kernel 5.12, Linux Kernel 5.13, Linux Kernel 5.14, Linux Kernel 5.15, Linux Kernel 5.19, Linux Kernel 5.4, Linux Kernel 5.8, Linux Kernel 5.9, Linux Kernel 6.2, Linux Kernel 6.5
Server operating systems supported	Windows Server 2008 R2, Windows Server 2016, Windows Server 2019, Windows Server 2021
Technical data
Transmission rate	20Gb/s
Net weight	0.035kg
Width packaging	0.140m
Article width	12.00cm
Type	Interface card
Chipset	ASMedia ASM3242
Connections internal	None
Interface	USB 3.2 Gen.2
Article height	2.20cm
Article length	9.10cm
Height packaging	0.155m
Connections external	1x USB-C socket
Slot	PCIe
Length packaging	0.033m
Weight	0.094kg
Low Profile
Technical details
Compliance certificates	TÜV mark, Federal Communications Commission (FCC), CE
Weight & dimensions
Width	91 mm
Depth	0.94 mm
Height	120 mm
Weight	2.2 kg

---
