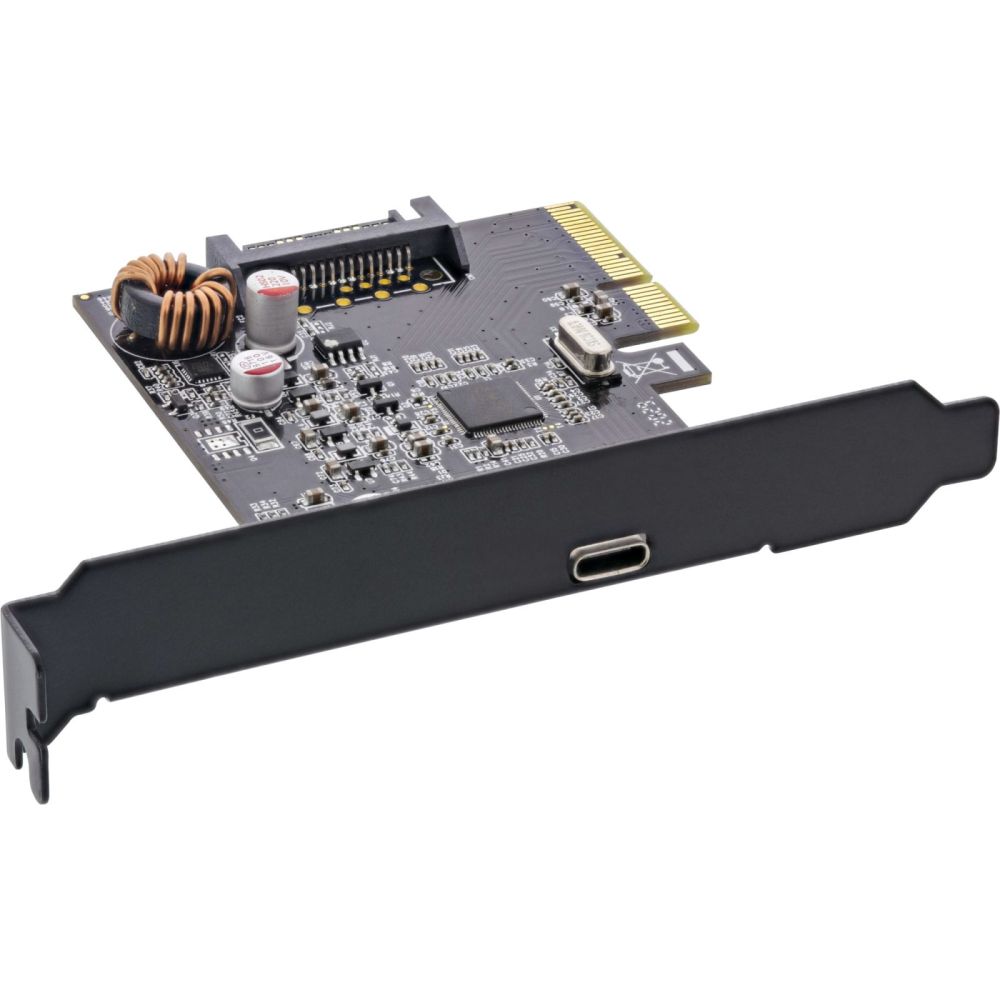

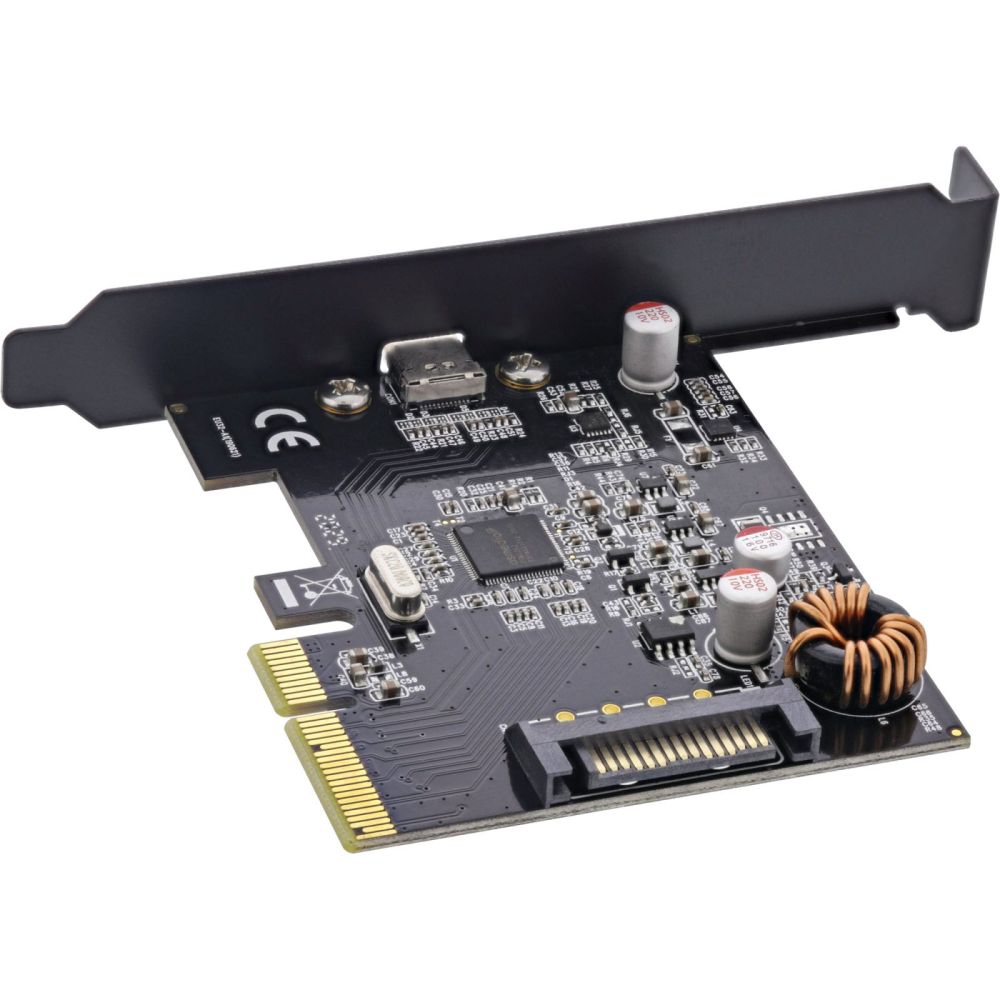

INLINE Interface card PCIe x4 USB 3.2 Gen.2x2 1x USB Type C incl. Low Profile Bracket content_copy

USB-C 20 Gb/s upgrade via PCIe x4High data rate up to 20 Gb/s: USB 3.2 Gen 2x2 over USB-C accelerates large data volumes.
Easy PC upgrade: PCIe x4 card fits standard and low-profile cases.
Stable port power supply: Internal HDD power connector provides 5 V up to 15 W (5 V/3 A).
Compatible with existing accessories: Backward compatible with USB 3.0 and USB 2.0; supports Control, Bulk, Interrupt, Isochronous.
This PCIe expansion adds a USB-C port to your desktop PC according to the USB 3.2 Gen 2x2 standard and enables data transfers up to 20 Gb/s. External drives and fast workflows benefit from the high bandwidth, while the internal HDD power connector supplies the port with 5 V and up to 15 W. DP Alt Mode and USB Power Delivery are not supported.
The card accelerates upgrades in professional IT environments, in on-site installations, and in service deployments when existing infrastructures need to be expanded without replacing the motherboard. The included low-profile slot bracket supports compact systems in companies and public institutions. Note: Do not use the website Drivers-Download mentioned in older manuals.
Connector: 1x USB-C port (USB 3.2 Gen 2x2)
Interface: PCI Express x4
Standard: USB 3.2 Rev. 1.0, PCI Express Base 3.1a
Chipset: Asmedia ASM3242
Operating systems: Windows 8/8.1/10 (32-/64-bit)
Backward compatibility: USB 3.0 (5 Gb/s), USB 2.0 (480 Mb/s, 12 Mb/s, 1.5 Mb/s)
Transfer types: Control, Bulk, Interrupt, Isochronous
Port power: max. 15 W (5 V/3 A) via internal HDD power connector
Form factor: standard- and low-profile compatible

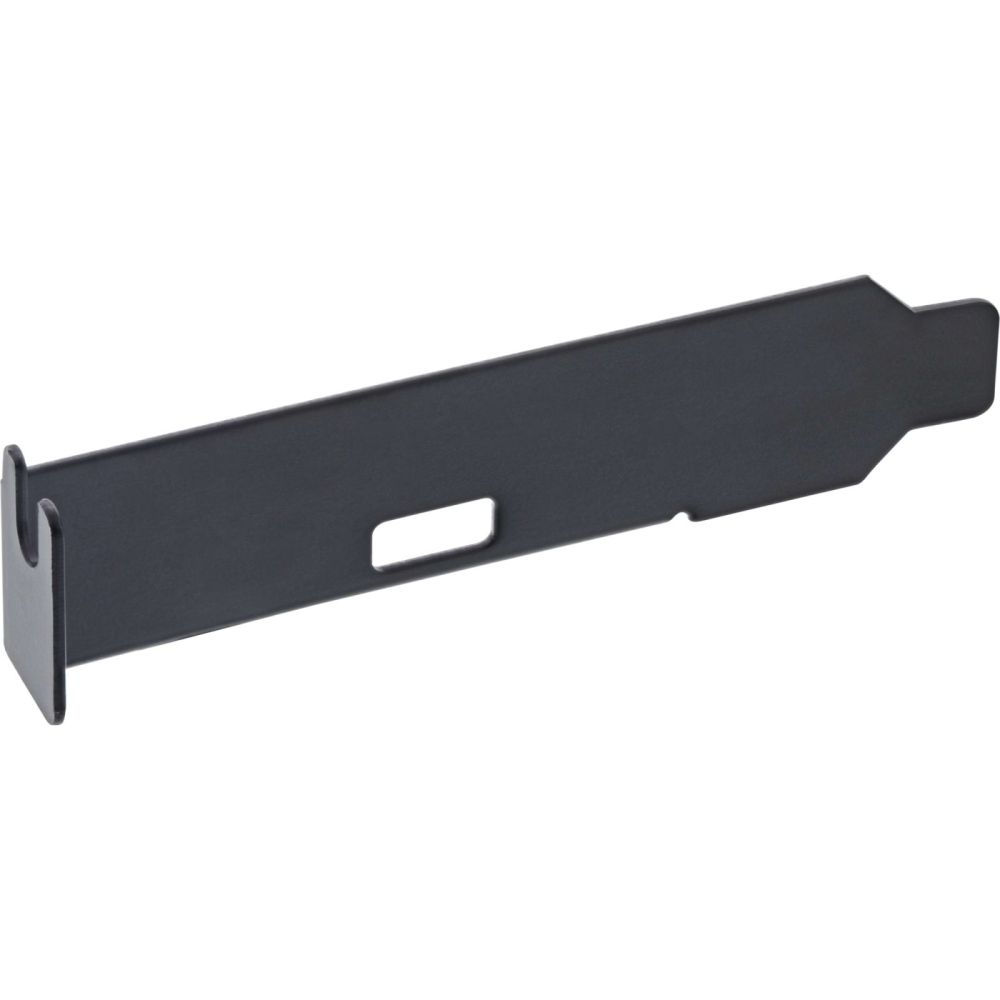

Scope of delivery: low-profile slot bracket, user manual
Note: No DP Alt Mode, no USB Power Delivery

Other features
Data transfer rate	20000 Mbit/s
Dimensions (WxDxH)	100 x 1.28 x 120 mm
Packaging data
Package width	145 mm
Package depth	180 mm
Package height	40 mm
Package weight	46 g
Package volume	1000 cm³
Ports & interfaces
Host interface	PCIe
Expansion card form factor	Low-profile
Expansion card standard	PCIe 4.0
Technical data
Connections external	1x USB-C socket
Slot	PCIe
Height packaging	0.040m
Transmission rate	20Gb/s
Packaging volume	0.0010m³
Chipset	Asmedia ASM3242
Connections internal	1x SATA power
USB specification	USB 3.2 Gen.2x2
Net weight	0.046kg
Weight	0.128kg
Type	Interface card
Article width	12.00cm
Length packaging	0.180m
Article height	2.00cm
Interface	USB 3.2 Gen.2
Article length	10.00cm
Width packaging	0.145m
Low Profile
Weight & dimensions
Width	100 mm
Depth	1.28 mm
Height	120 mm
Weight	2 kg

---
