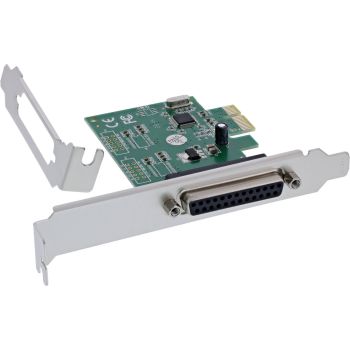

InLine® Interface card, 1x Parallel 25-pin, PCIe content_copy

Addition of a parallel DB25 port for connecting printers, scanners and other peripheral devices
PCIe x1 interface (compatible with x1, x4, x8 and x16 slots)
Bidirectional data transfer for efficient communication between devices
Supports SPP, EPP and ECP (IEEE 1284-compliant)
Low-profile format with low-profile slot bracket for compact systems
The InLine® PCIe interface card adds a powerful 25-pin parallel DB25 port to your PC. It enables reliable, bidirectional data transmission and is ideal for connecting printers, scanners or other parallel port devices.
Thanks to the PCI Express x1 interface (v1.1), the card is compatible with x1, x4, x8 and x16 slots and can be easily integrated into modern computer systems. The 256-byte FIFO buffer ensures smooth and fast transfer with a data transfer rate of up to 1.5 MB/s.
Technical data:
Bus type & PCIe: PCIe v1.1 (2.5 GT/s) x1 lane (compatible with x1, x4, x8, x16 slots)
Connector: 1 x 25-pin parallel connector (DB25)
Chip set: WCH CH382L
Duplex mode: Bidirectional transmission
FIFO buffer: 256 bytes
Form factor: Low Profile
Dimensions: 85 mm x 60 mm (PCIe board)
Supported protocols & compatibility:
IEEE 1284 compliant, supports SPP, EPP and ECP
Data transfer rate:
Up to 1.5 MB/s - efficient, bidirectional LPT data transfer
Operating system support:
Windows: 11, 10, 8, 7, Vista, XP
Windows Server: 2003, 2008
Linux: from kernel version 2.4
Environmental conditions:
Operating temperature: 0 °C to 55 °C
Storage temperature: -40 °C to 70 °C
Maximum humidity: 90 %
Scope of delivery:
1x InLine® interface card, 1x parallel 25-pin, PCIe
1x low-profile slot bracket
1x driver CD
1x user manual (German/English)

Design
Country of origin	Taiwan
Internal
Features
Chipset	WCH CH382L
Data transfer rate (max)	0.0015 Gbit/s
FIFO (First In, First Out)	256 B
Bidirectional
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Other features
Dimensions (WxDxH)	91 x 1 x 120 mm
Packaging data
Package width	140 mm
Package depth	33 mm
Package height	155 mm
Package weight	40 g
Package type	Hanging box
Mounting brackets included
Drivers included
Manual
Ports & interfaces
Host interface	PCIe
Host interface gender	Male
Output interface	Parallel
Expansion card form factor	Low-profile
Expansion card standard	PCIe 1.1
Parallel ports quantity	1
System requirements
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8, Windows Vista, Windows XP
Linux operating systems supported	Kernel 2.6, Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4, Linux Kernel 5.10, Linux Kernel 5.11, Linux Kernel 5.12, Linux Kernel 5.13, Linux Kernel 5.14, Linux Kernel 5.15, Linux Kernel 5.19, Linux Kernel 5.4, Linux Kernel 5.8, Linux Kernel 5.9, Linux Kernel 6.2, Linux Kernel 6.5
Server operating systems supported	Windows Server 2003, Windows Server 2008
Technical data
Height packaging	0.155m
Chipset	WCH CH382L
Width packaging	0.140m
Article height	2.20cm
Interface	Parallel
Connections external	1x parallel 25 pin
Slot	PCIe
Length packaging	0.033m
Transmission rate	1.5MB/s
Weight	0.100kg
Net weight	0.040kg
Type	Interface card
Article width	12.00cm
Connections internal	None
Article length	9.10cm
Low Profile
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), TÜV mark
Weight & dimensions
Width	91 mm
Depth	1 mm
Height	120 mm
Weight	2.2 kg

---
