InLine® Interface Card 4 Port Serial 9 Pin PCIe PCI-Express
|
35,42 EUR |
|
|
( 42,15 EUR incl. VAT ) ≈ £29.65 | ≈ $39.63 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| End-Of-Life: | 26. Jul 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 598163 |
| Mfg Part No: | 76623C |
| UPC/EAN: | 4043718169030 |
| Weight: | 0.17 kg |
Further Serial/Parallel from InlineFurther products in category Serial/Parallel
All products of Inline
Product information for Inline 76623C:
Easily add four RS-232 interfaces via PCIe x1Four serial ports immediately available: Add RS-232 (9-pin) via PCIe x1 to desktops and servers.
Stable communication with legacy devices: 256-byte FIFO per port and up to 230.4 kb/s for reliable data transfer.
Easy integration into existing software: Compatible with 16C450/16C550, hardware/software flow control, and flexible data, parity, and stop bit settings.
Flexible upgrade via PCIe x1: single-lane operation for broad motherboard compatibility.

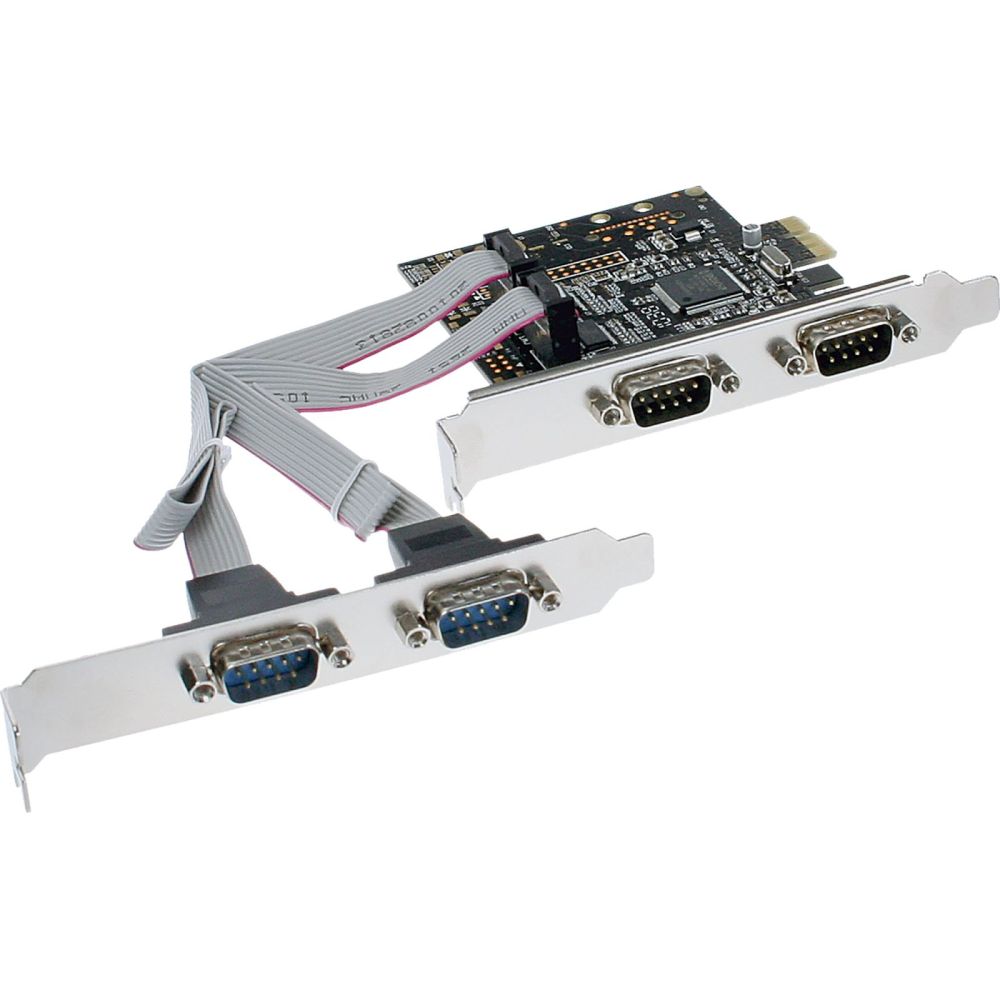

This PCIe interface card adds four serial RS-232 ports to your PC. It complies with the PCI Express base specification 1.1 and uses an x1 lane. The 256-byte FIFO buffers per port support sustained transfer up to 230.4 kb/s and facilitate reliable connection of serial peripherals.
Especially in professional IT environments, on-site installations, and service deployments, the card facilitates continued operation of existing measuring instruments, POS systems, terminals, modems, or PLCs within existing infrastructures of companies and public institutions.
Interface: PCI Express x1, 4x RS-232 (9-pin)
Standard: PCI Express 1.1, RS-232
Chipset: Moschip MCS9904CV-AA
FIFO: 256 bytes transmit/receive per port
Data rate: up to 230.4 kb/s per port
Flow control: hardware and software
Data format: 5-, 6-, 7-, 8-bit; parity: even, odd, none; stop bits: 1 or 2
Operating systems: Windows 2000/XP/Server 2003/Vista/Server 2008/7/8 (each 32/64 bit), Linux, Mac OS X 10.5, DOS 6.22
PCIe throughput: up to 2.5 Gb/s (single-lane)
Installation: requires 2 slot bracket positions
Stable communication with legacy devices: 256-byte FIFO per port and up to 230.4 kb/s for reliable data transfer.
Easy integration into existing software: Compatible with 16C450/16C550, hardware/software flow control, and flexible data, parity, and stop bit settings.
Flexible upgrade via PCIe x1: single-lane operation for broad motherboard compatibility.
This PCIe interface card adds four serial RS-232 ports to your PC. It complies with the PCI Express base specification 1.1 and uses an x1 lane. The 256-byte FIFO buffers per port support sustained transfer up to 230.4 kb/s and facilitate reliable connection of serial peripherals.
Especially in professional IT environments, on-site installations, and service deployments, the card facilitates continued operation of existing measuring instruments, POS systems, terminals, modems, or PLCs within existing infrastructures of companies and public institutions.
Interface: PCI Express x1, 4x RS-232 (9-pin)
Standard: PCI Express 1.1, RS-232
Chipset: Moschip MCS9904CV-AA
FIFO: 256 bytes transmit/receive per port
Data rate: up to 230.4 kb/s per port
Flow control: hardware and software
Data format: 5-, 6-, 7-, 8-bit; parity: even, odd, none; stop bits: 1 or 2
Operating systems: Windows 2000/XP/Server 2003/Vista/Server 2008/7/8 (each 32/64 bit), Linux, Mac OS X 10.5, DOS 6.22
PCIe throughput: up to 2.5 Gb/s (single-lane)
Installation: requires 2 slot bracket positions
| Features | |
| Chipset | Moschip MCS9904CV-AA |
| Other features | |
| Data transfer rate | 2500 Mbit/s |
| I/O ports | 4x DB-9 M |
| Connectivity technology | Wired |
| Compatible operating systems | Microsoft Windows 2000/XP 32/64-bit/erver 2003 32/64-bit/Vista 32/64-bit/Server 2008 32/64-bit/Windows 7 32/64-bit, Linux, Mac OS/X 10.5, DOS 6.22 |
| Mac compatibility | |
| Packaging data | |
| Package width | 144 mm |
| Package depth | 177 mm |
| Package height | 40 mm |
| Package weight | 111 g |
| Package volume | 1000 cm³ |
| Ports & interfaces | |
| Host interface | PCIe |
| Serial ports quantity | 4 |
| Technical data | |
| Transmission rate | 2.5Gb/s |
| Chipset | Moschip MCS9904CV-AA |
| Length packaging | 0.177m |
| Slot | PCIe |
| Packaging volume | 0.0010m³ |
| Connections external | 4x 9pin serial |
| Weight | 0.176kg |
| Width packaging | 0.144m |
| Interface | Serial |
| Height packaging | 0.040m |
| Net weight | 0.111kg |
| Connections internal | None |
| Type | Interface card |
| Low Profile | |
| Weight & dimensions | |
| Depth | 1.7 mm |
| Weight | 111 g |
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
