InLine® Interface card, 2x PS/2, PCIe, USB post connector, MCS9990 content_copy

Add two PS/2 ports via PCIe: Connect classic PS/2 keyboards and mice to modern systems without native ports.
Internal USB 2.0 header connector: Enables the connection of internal USB devices or front ports – ideal for case integration.
Reliable Moschip MCS9990 chipset: Stable communication for PS/2 and USB signals, supports PCIe 1.1.
Downward-compatible USB port: Supports USB 2.0, 1.1 and 1.0 transfer modes – versatile.
Compatible with many systems: Works with Windows 2000 and above and Linux kernel 2.6.x – also suitable for older PCs.

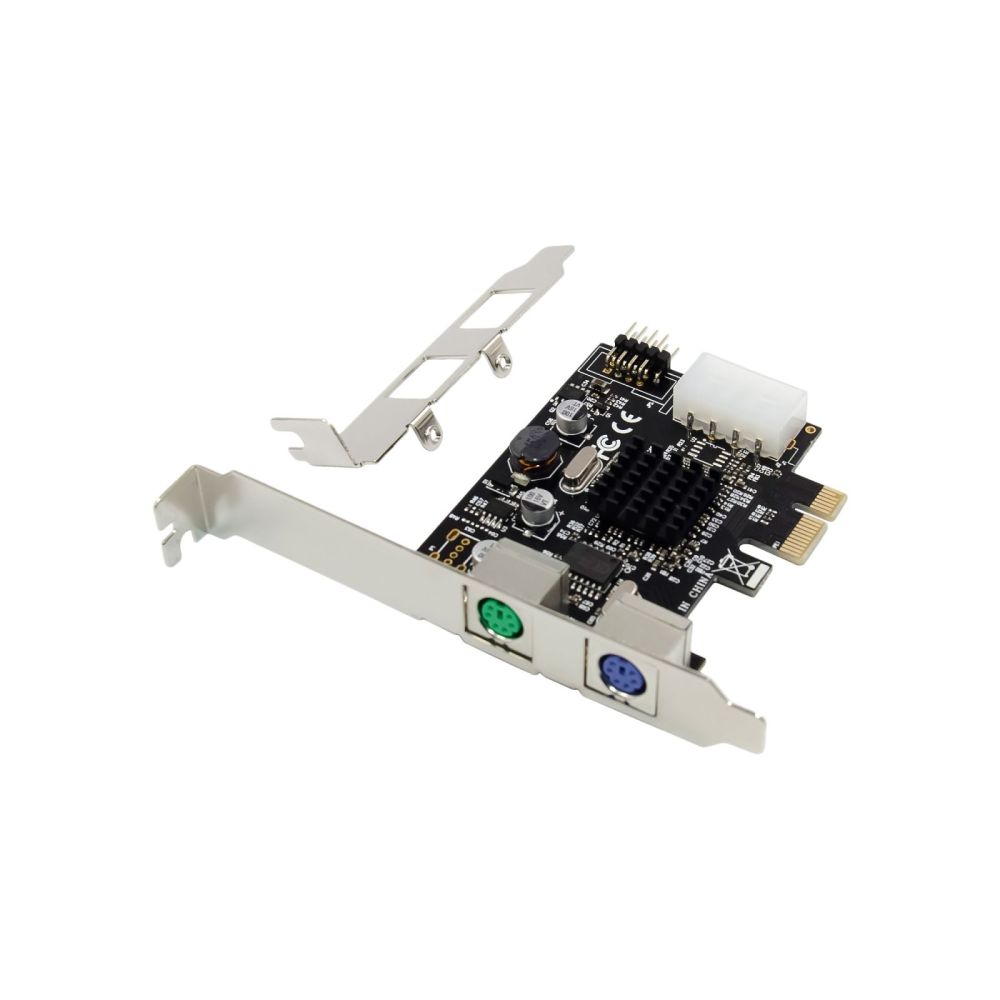

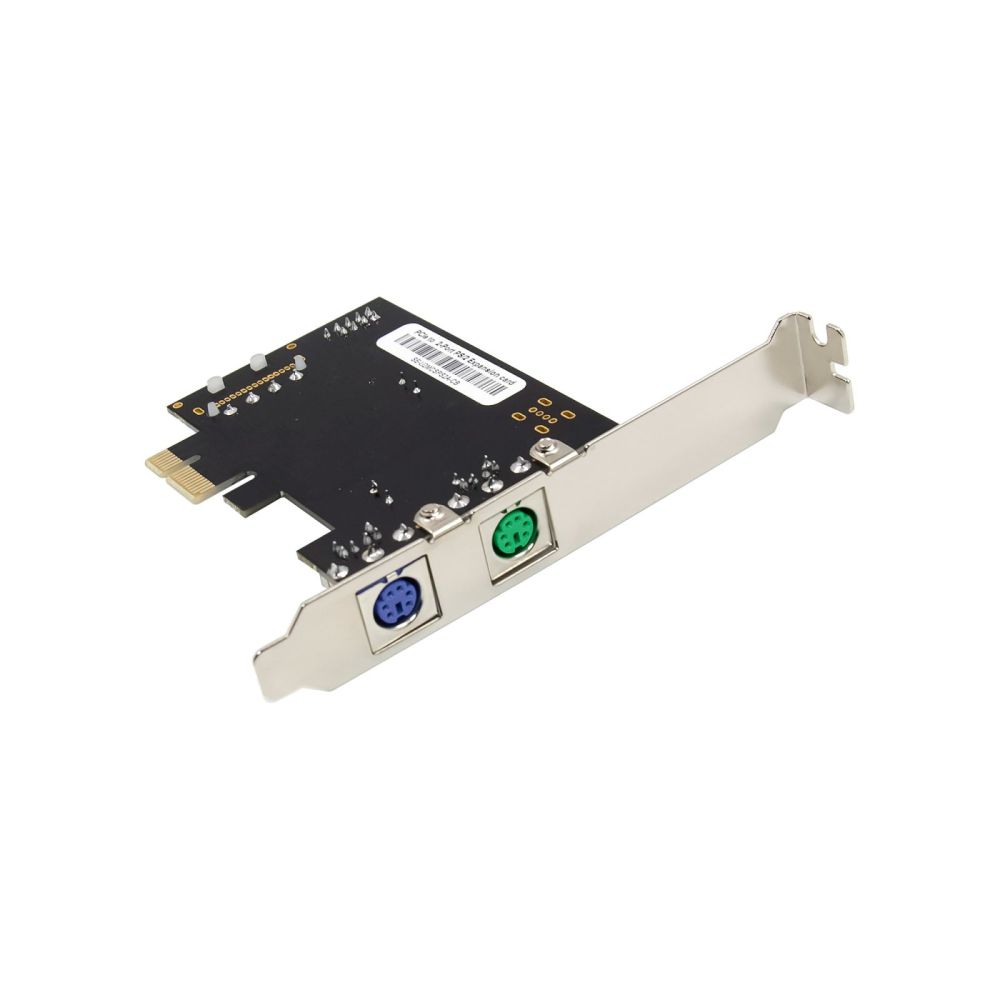

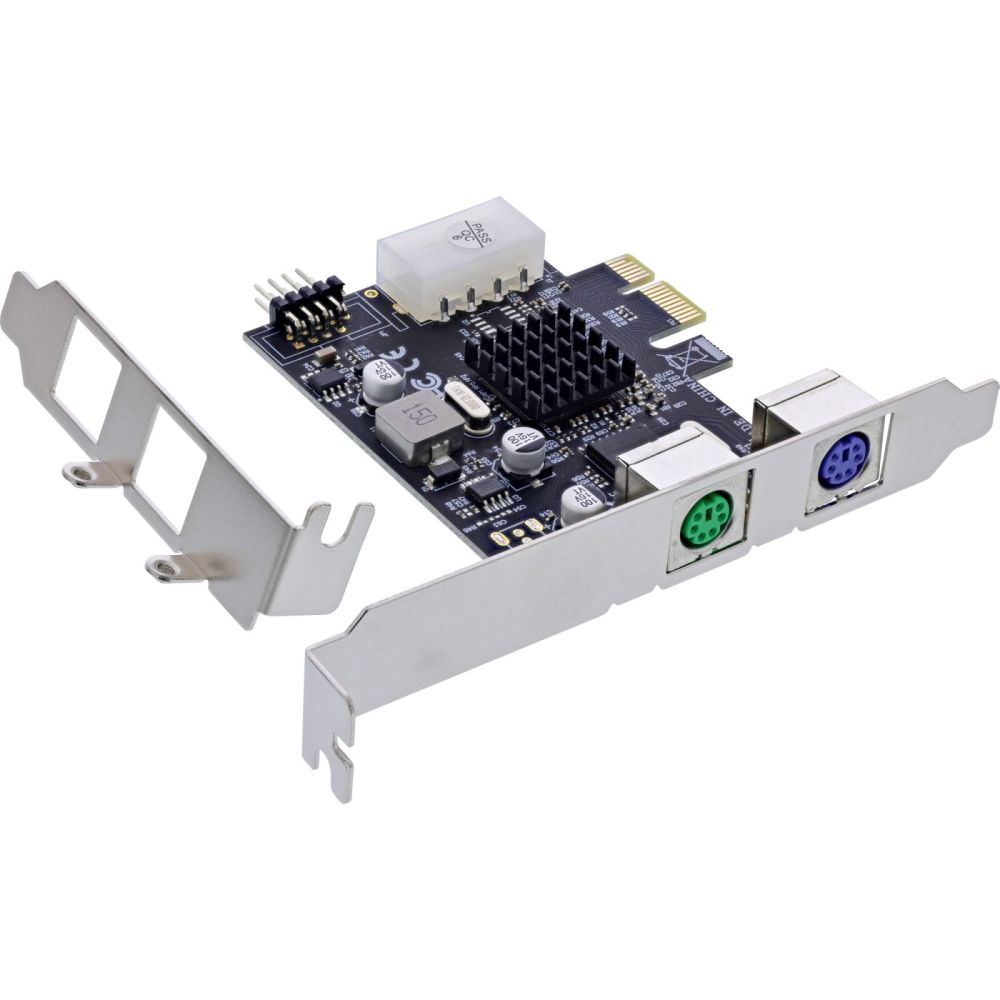

The InLine® PCIe interface card brings classic PS/2 interfaces back to modern PCs. Two PS/2 ports allow you to connect a keyboard and mouse with the tried-and-tested connector format – particularly useful for retro fans or professional applications with special input technology.

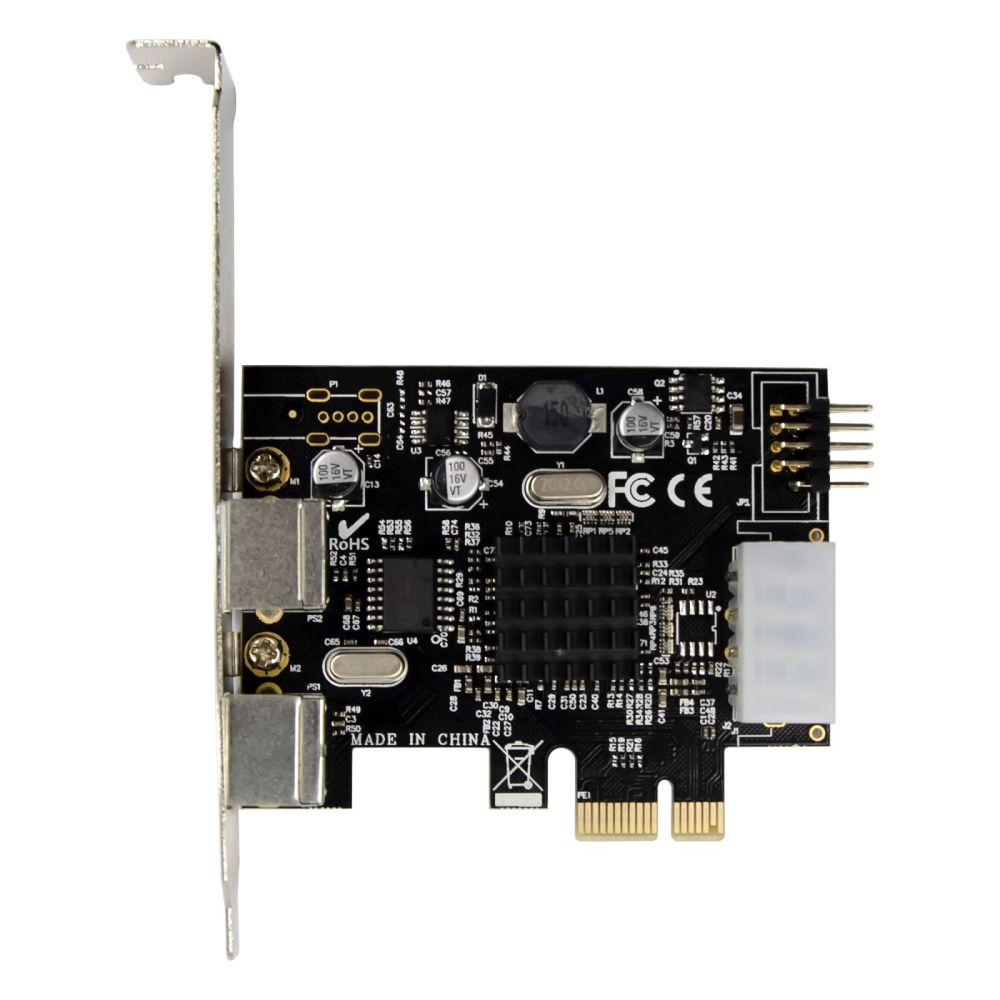

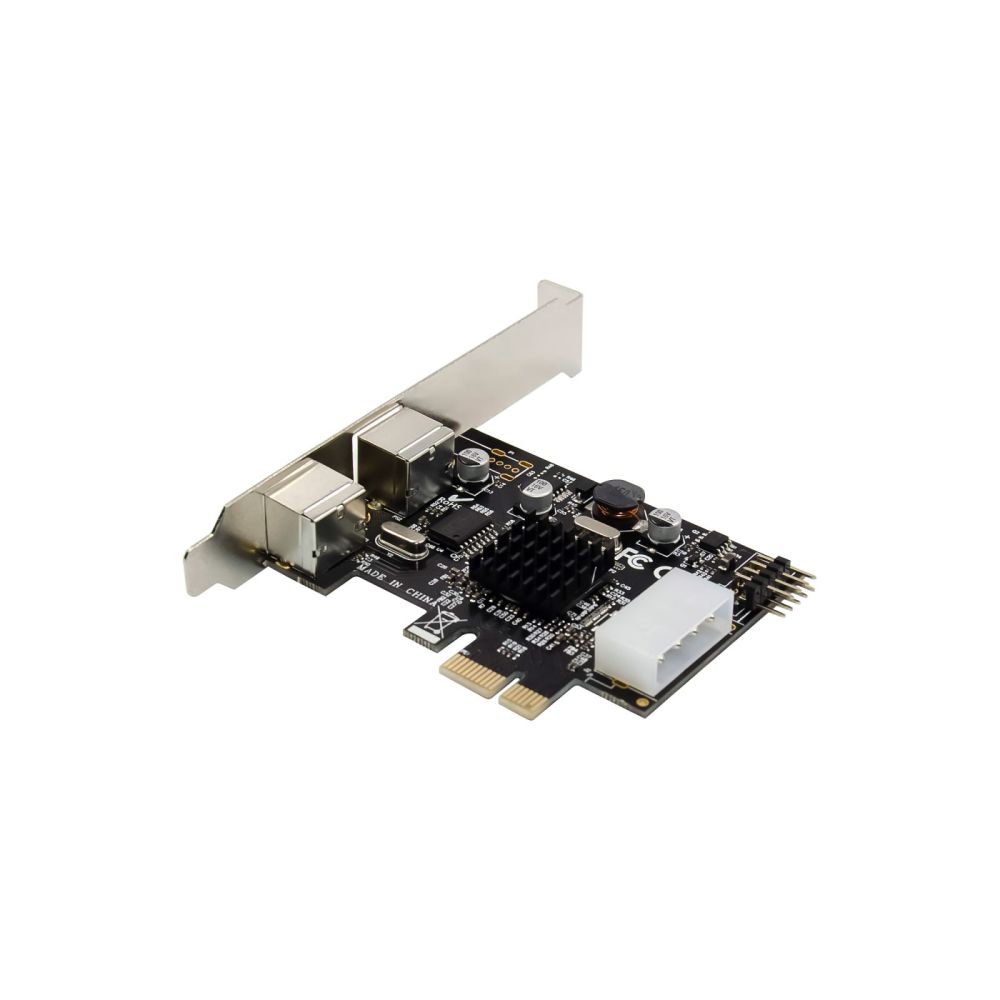

In addition, the card offers an internal USB 2.0 pin header, which can be used to implement internal USB devices or front panel connections. Optionally, additional power can be provided via the integrated power connector – e.g. for power-hungry USB devices.
The reliable Moschip MCS9990 chipset ensures stable signal transmission, supports PCIe 1.1 and is compatible with Windows and Linux systems. The card is particularly useful in service environments or with older industrial PCs.
Simply install, connect and use classic peripherals as usual.
Interface: PCI Express 1.1 x1
External connections: 2x PS/2 (keyboard, mouse)
Internal connections: 1x USB 2.0 pin header (9-pin), 1x power connection (4-pin)
USB data rates: 480 / 12 / 1.5 Mb/s (USB 2.0 / 1.1 / 1.0)
Chipset: Moschip MCS9990
Supported OS: Windows 2000+, Linux from kernel 2.6.x

Design
Country of origin	China
Internal
Features
Data transfer rate (max)	0.48 Gbit/s
Other features
Dimensions (WxDxH)	120 x 1.18 x 100 mm
Packaging data
Package width	140 mm
Package depth	150 mm
Package height	30 mm
Package weight	50 g
Package volume	700 cm³
Mounting brackets included
Ports & interfaces
Host interface	PCIe
Host interface gender	Male
Output interface	PS2, USB 2.0 header - 9 pin
Expansion card standard	PCIe 1.1
Power
Supplementary power connectors	4-pin Molex
System requirements
Windows operating systems supported	Windows 10, Windows 11, Windows 2000, Windows 7, Windows 8, Windows Vista, Windows XP
Linux operating systems supported	Kernel 2.6, Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4, Linux Kernel 5.10, Linux Kernel 5.11, Linux Kernel 5.12, Linux Kernel 5.13, Linux Kernel 5.14, Linux Kernel 5.15, Linux Kernel 5.19, Linux Kernel 5.4, Linux Kernel 5.8, Linux Kernel 5.9, Linux Kernel 6.2
Technical data
Connections external	2x PS/2 socket
Transmission rate	480Mb/s
Packaging volume	0.0007m³
Width packaging	0.140m
Article width	10.00cm
Connections internal	None
Type	Interface card
Chipset	Moschip MCS9990 CV
Length packaging	0.150m
Weight	0.118kg
Article height	2.00cm
Interface	PS/2
Net weight	0.050kg
Article length	12.00cm
Height packaging	0.030m
Slot	PCIe
Low Profile
Weight & dimensions
Width	120 mm
Depth	1.18 mm
Height	100 mm
Weight	2 kg

---
