InLine® USB 3.2 Gen.1 PCIe interface card, 4-port, internal/external content_copy

USB 3.2 Gen.1 PCIe card with 4 dedicated ports for fast USB expansionDedicated data transfer: Each USB 3.2 Gen.1 port operates with its own bandwidth of up to 5 Gb/s. Ideal for external SSDs, storage devices and high-speed USB devices.
Four USB ports for flexible use: The PCIe USB card offers 2 external and 2 internal USB 3.2 Gen.1 ports for expanding existing PC systems and cases.
Stable performance under high USB load: The PCIe x4 connection supports parallel data transfers from multiple USB devices without shared bandwidth or performance losses.
High compatibility with existing systems: Supports USB 3.2 Gen.1 as well as USB 3.0, USB 2.0 and USB 1.1 devices. Suitable for Windows and Linux systems.
Flexible installation even in compact PCs: With the included low-profile slot bracket, the USB expansion card is also suitable for small cases and industrial systems.

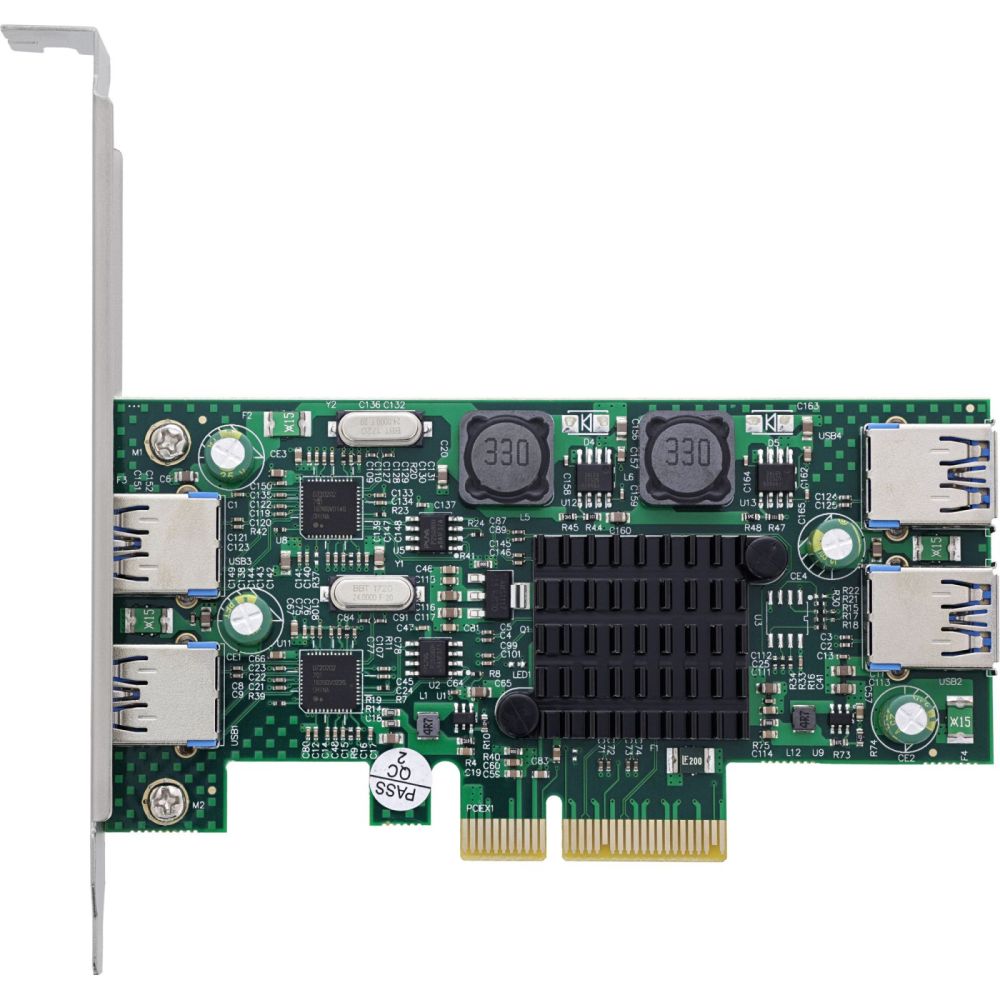

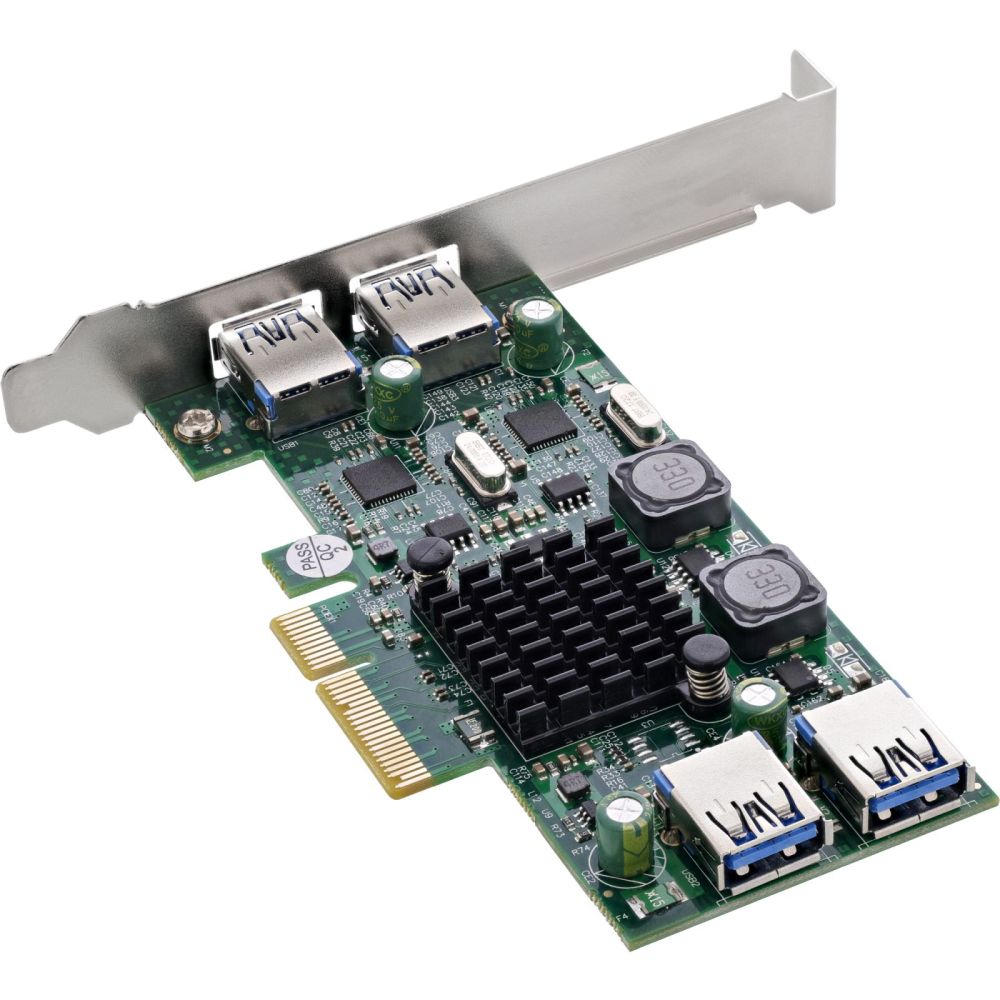

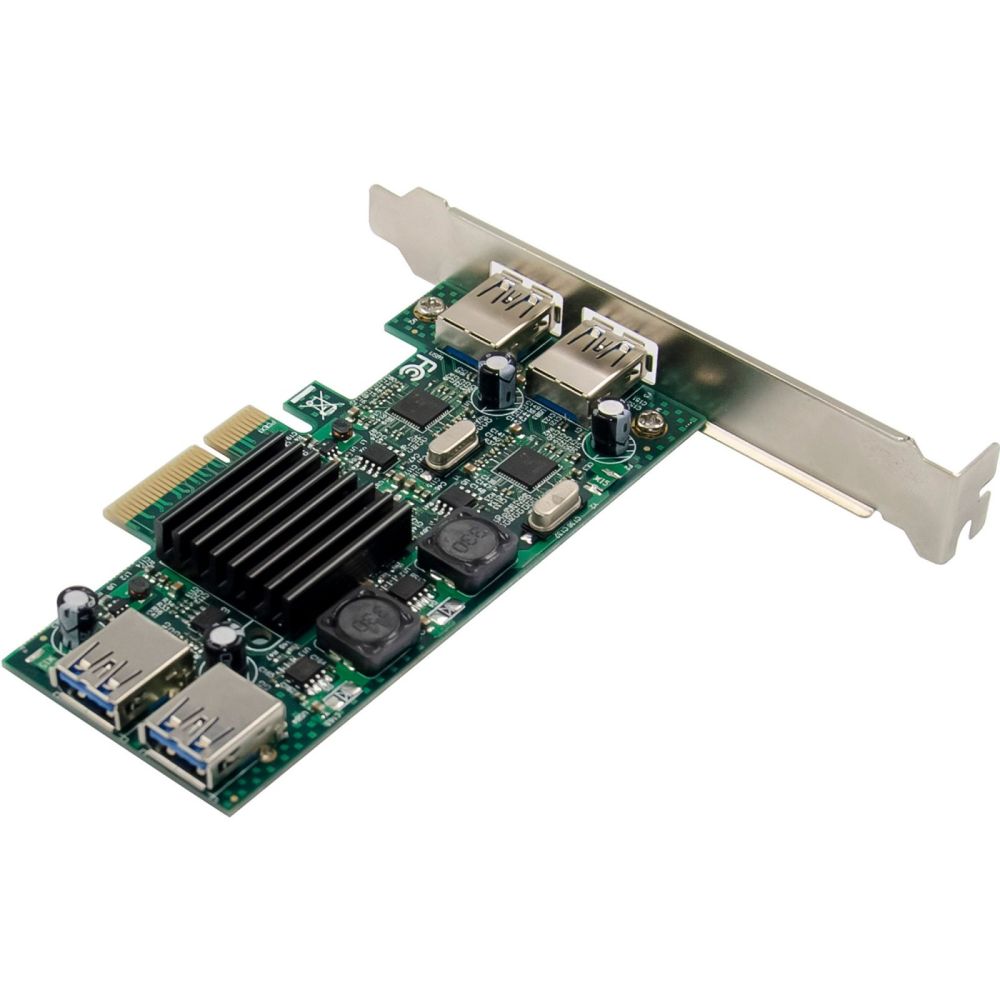

The InLine USB 3.2 Gen.1 PCIe card adds four additional USB ports to desktop PCs, with up to 5 Gb/s per port. The combination of two external and two internal USB ports allows for flexible expansion for storage devices, internal USB solutions or other USB peripherals.
Thanks to the PCIe v2.0 x4 connection, each USB port operates with dedicated bandwidth. This makes the USB expansion card particularly suitable for parallel data transfers with external SSDs, hard drives, cameras or other USB devices with high data loads.
The integrated NEC/Renesas uPD720202 controller supports USB 3.2 Gen.1 as well as older USB standards. Existing USB 3.0, USB 2.0 and USB 1.1 devices can still be used. Thanks to hot-swapping, USB devices can be connected or removed whilst the system is running.

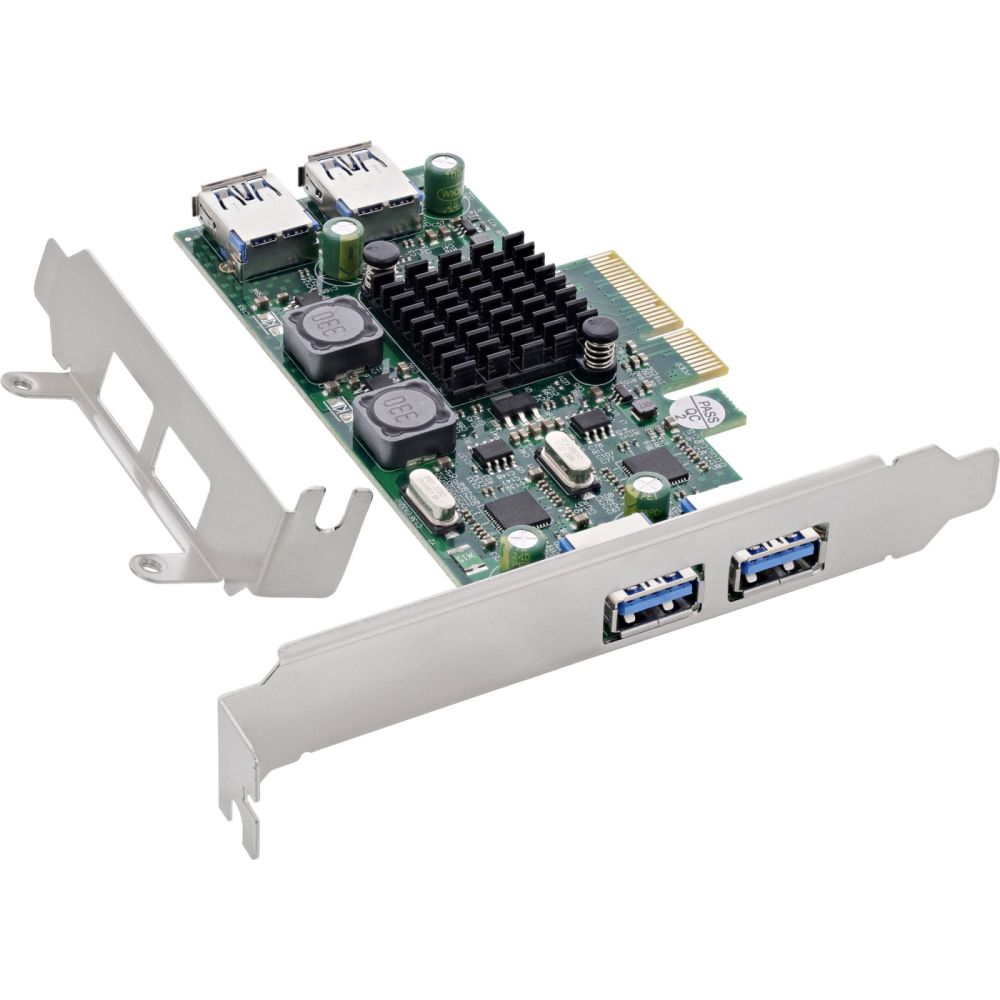

The additional 4-pin power connector ensures a stable power supply for connected USB devices. With the included low-profile slot bracket, the card is also suitable for compact PC cases and industrial systems.
Technical Specifications
PCIe standard: PCIe v2.0, x4-lane
Chipset: NEC/Renesas uPD720202
USB standard: USB 3.0 / USB 3.2 Gen.1
Host controller interface: Intel xHCI Specification 1.0
Ports:
Internal: 2x USB 3.2 Gen.1 downstream ports
External: 2x USB 3.2 Gen.1 downstream ports
Port bandwidth: up to 5 Gb/s per USB 3.2 port, not shared
Simultaneous operation: supports parallel operation of multiple USB 3.2 Gen.1, USB 2.0 and USB 1.1 devices
Power supply per USB port: max. 5 V / 900 mA
Additional power connection: integrated 4-pin power connector for additional power supply via the PC system
Hot-swapping: USB devices can be connected or disconnected whilst the system is running
Power management: PCI Bus Power Management Interface Specification Revision 1.2
Supported operating systems
Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11, 32/64-bit
Linux
Contents
1x InLine interface card, USB 3.2 Gen.1, 4-port
1x low-profile slot bracket
1x driver CD
1x user manual (German/English)

Design
Product colour	Green, Silver
Purpose	PC
Internal
Easy to install
Features
Plug and Play
Other features
Dimensions (WxDxH)	120 x 1.2 x 122 mm
Packaging data
Package width	140 mm
Package depth	150 mm
Package height	30 mm
Package weight	58 g
Package volume	600 cm³
Ports & interfaces
Host interface	PCI
Host interface gender	Male
Output interface	USB 3.2 Gen 1 (3.1 Gen 1)
Expansion card standard	PCIe 2.0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
System requirements
Windows operating systems supported	Windows XP, Windows Vista, Windows 7, Windows 8, Windows 11, Windows 10
Linux operating systems supported
Technical data
Chipset	NEC/Renesas uPD720202
USB specification	USB 3.2 Gen.1
Article width	12.20cm
Connections internal	2x USB-A socket
Type	Interface card
Transmission rate	5Gb/s
Length packaging	0.150m
Article length	12.00cm
Weight	0.120kg
Connections external	2x USB-A socket
Width packaging	0.140m
Height packaging	0.030m
Net weight	0.058kg
Slot	PCIe
Packaging volume	0.0006m³
Article height	2.00cm
Interface	USB 3.2 Gen.1
Low Profile
Weight & dimensions
Width	120 mm
Depth	1.2 mm
Height	122 mm
Weight	2 kg

---
