InLine® Interface card, PCIe x1 to 2x PCI 32-bit, incl. 60 cm cable content_copy

Adds two classic PCI slots to modern systems: Ideal for continuing to use proven PCI expansion cards in new PC or industrial systems.
Reliable signal transmission via connection cable: 60 cm long cable connects PCIe main card with add-on card and ensures stable data communication.
Flexible power supply via SATA 15-pin connector: Power supply directly to the main card – no additional adapter required.
Driverless installation for maximum compatibility: Operating system automatically recognizes the card – no manual setup required.

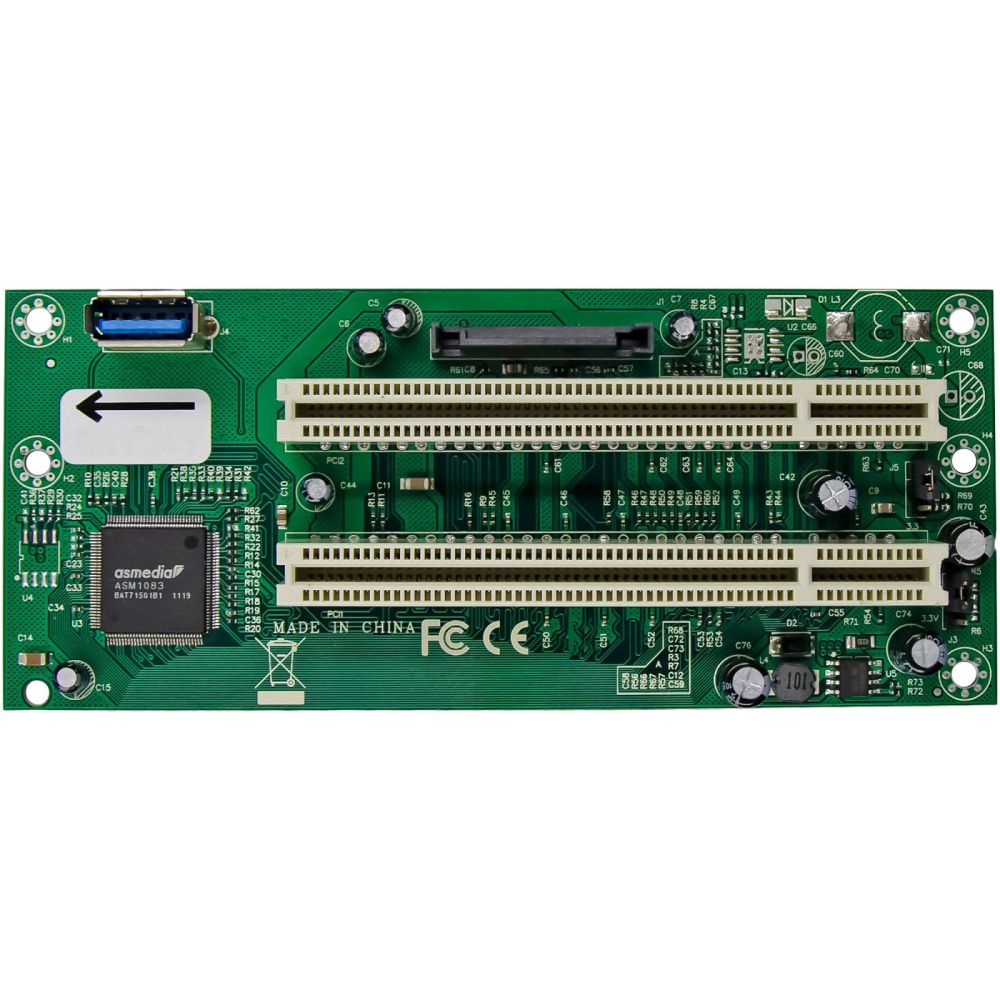

ASMedia bridge chip for high compatibility: The integrated ASM1083 chipset ensures stable PCIe-to-PCI conversion even under older operating systems.

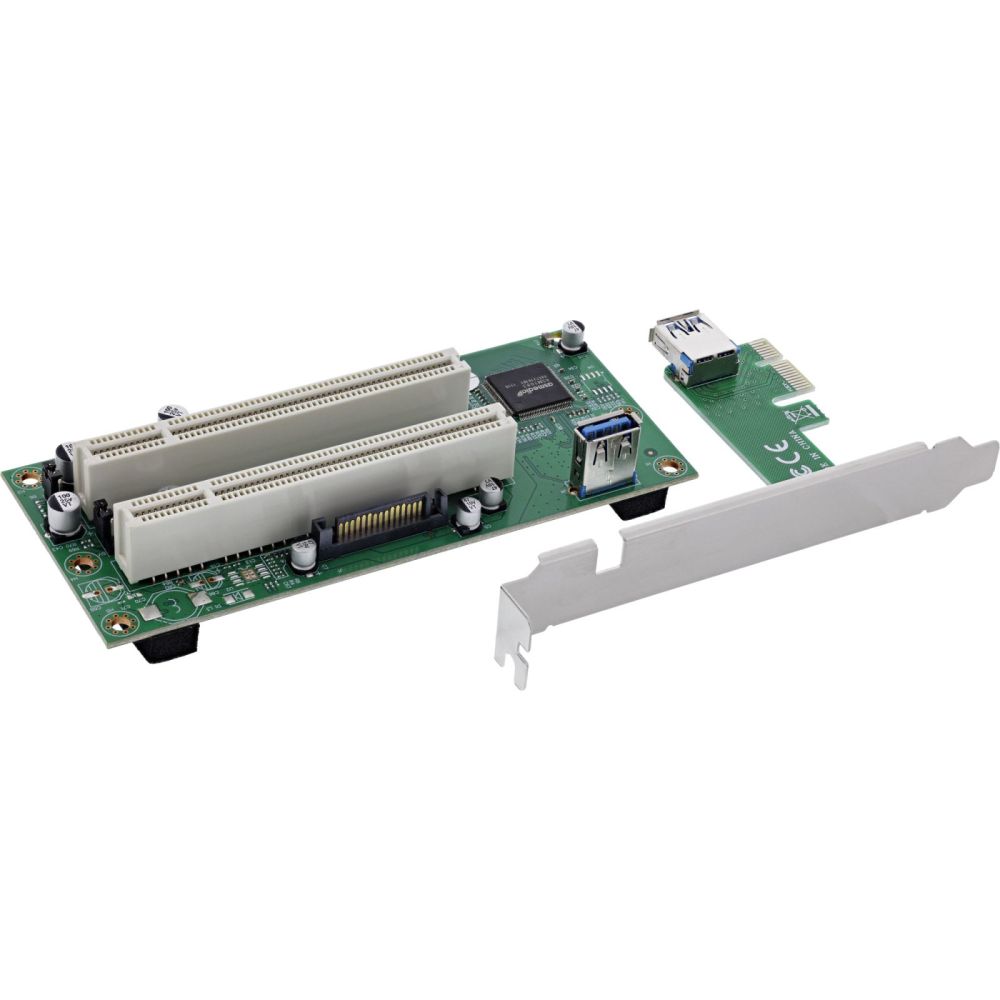

With the InLine® interface card, PCIe x1 to 2x PCI 32-bit, you can expand modern computers with two classic PCI slots. The system consists of a PCIe main card with ASMedia ASM1083 bridge chip and an add-on card connected via a 60 cm cable. This makes the card ideal for continuing to use older but functionally relevant PCI expansion cards – for example, in industrial PCs, test systems, or special applications where PCIe is not a substitute.
The card is driverless and compatible with a wide range of operating systems, including all Windows versions from XP onwards and Linux kernels from version 2.4 onwards. Power is supplied via a standardized SATA 15-pin connector, which allows for easy integration into existing setups. The PCI signals are reliably transmitted to the add-on card via the connection cable, which has two 32-bit slots.
Whether in a professional environment or in ambitious DIY projects, this solution offers a high-quality and durable way to continue using proven PCI hardware – without compromising on system updates.
Technical data
PCIe standard: PCIe v1.1 x1 lane (connection to the main card)
Interfaces: 2× PCI 32-bit, 33/66 MHz (provided on the add-on card)
Chipset: ASMedia ASM1083 (PCIe-to-PCI bridge)

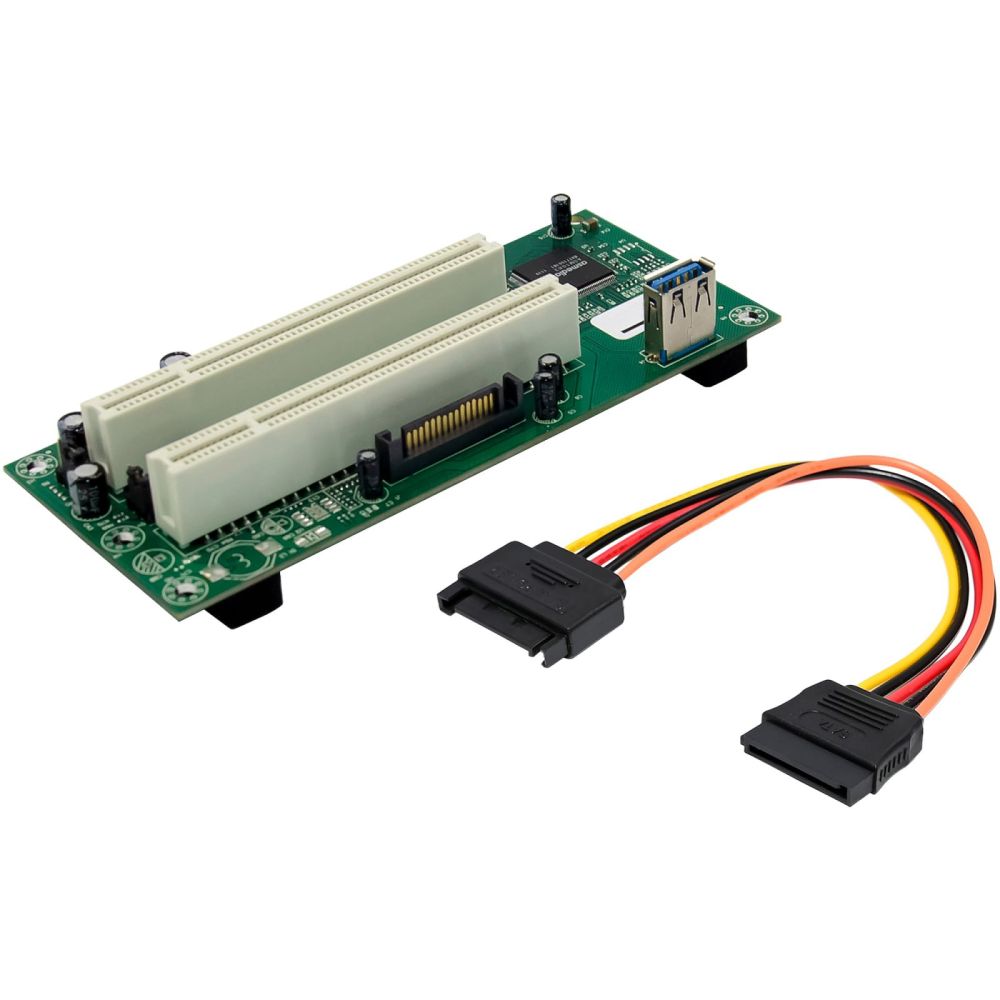

Power supply: SATA 15-pin power connector on the main card
Driver: No driver installation required
Supported operating systems
Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11 (32/64-bit)
Windows Server 2003 / 2008 / 2012 / 2016
Linux kernel 2.4 or newer

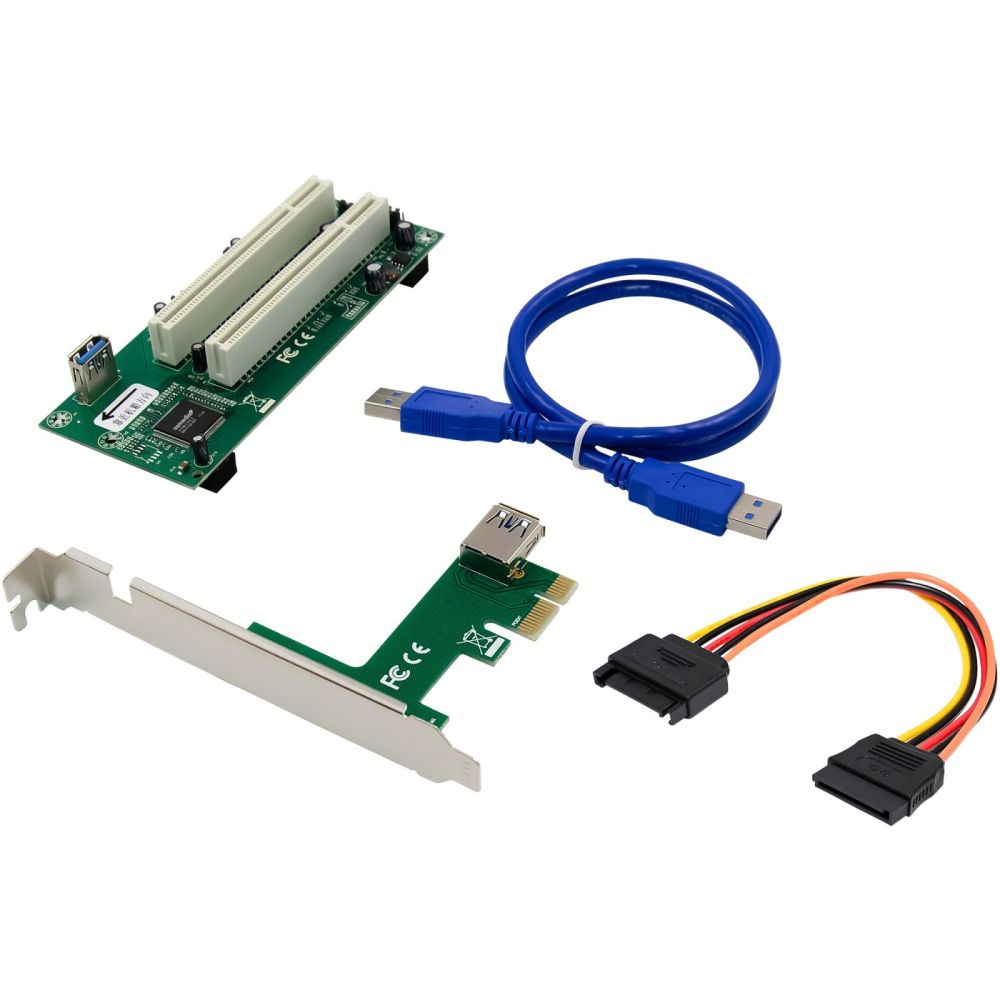

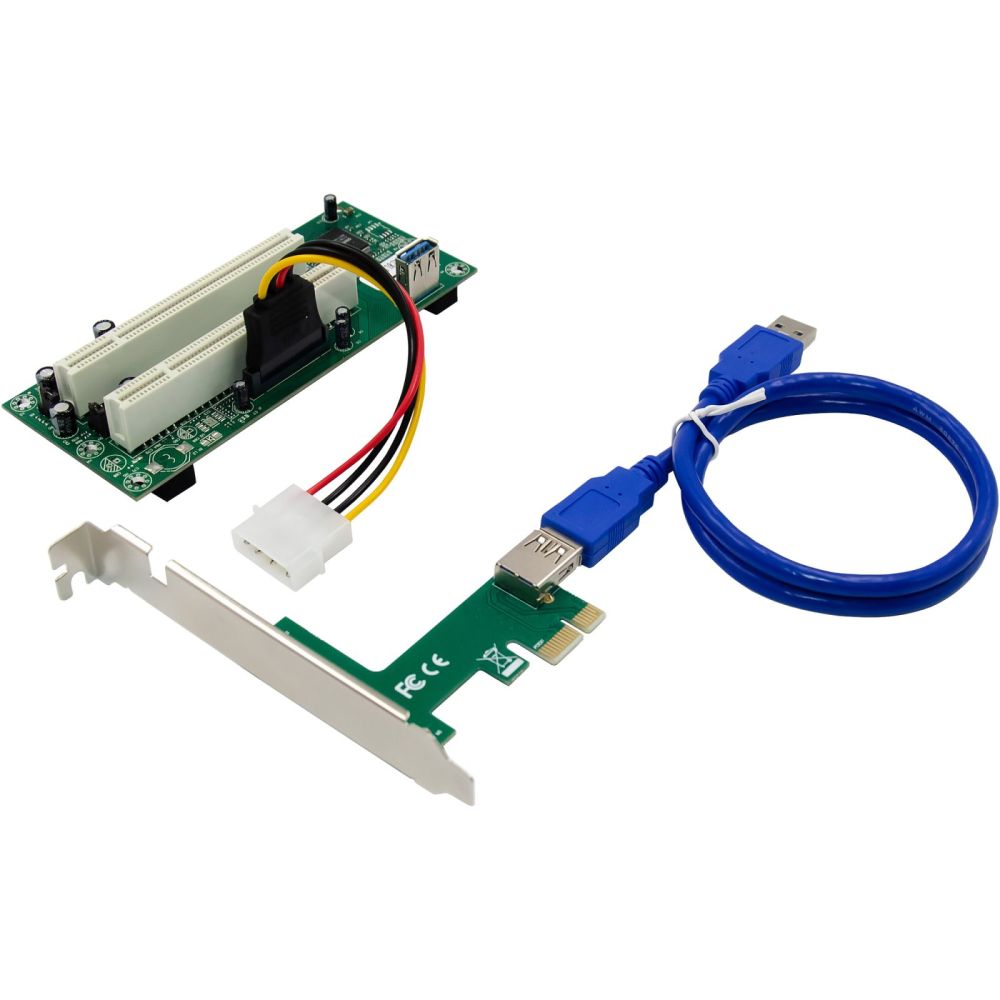

Scope of delivery
1x InLine PCIe x1 to 2× PCI interface card (main card, with PCIe plug-in card)

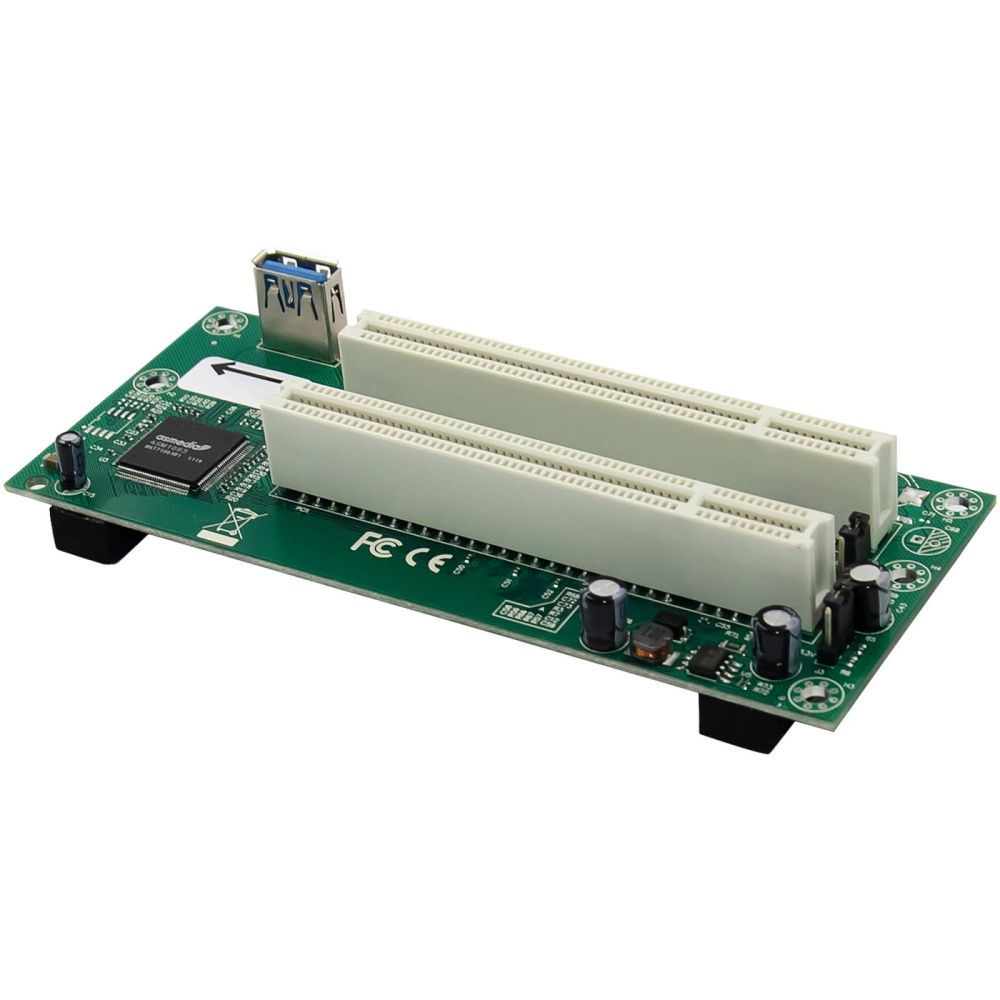

1x Add-on card with 2× PCI slots
1x 60 cm connection cable between main card and add-on card
1x SATA 15-pin power cable (approx. 5 cm)
1x User manual German/English

Design
Internal
Features
Chipset	ASMedia ASM1083
Plug and Play
Other features
Dimensions (WxDxH)	132 x 1.84 x 60 mm
Packaging data
Cables included	SATA, USB
Package width	125 mm
Package depth	180 mm
Package height	30 mm
Package weight	60 g
Package volume	700 cm³
Package type	Box
Manual
Ports & interfaces
Host interface	PCIe
Host interface gender	Male
Output interface	PCI
Expansion card standard	PCIe 1.1
SATA power connector type	SATA 15-pin
System requirements
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP
Linux operating systems supported	Kernel 2.6, Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4, Linux Kernel 5.10, Linux Kernel 5.11, Linux Kernel 5.12, Linux Kernel 5.13, Linux Kernel 5.14, Linux Kernel 5.15, Linux Kernel 5.19, Linux Kernel 5.4, Linux Kernel 5.8, Linux Kernel 5.9, Linux Kernel 6.2, Linux Kernel 6.5
Server operating systems supported	Windows Server 2003, Windows Server 2008, Windows Server 2012, Windows Server 2016
Technical data
Height packaging	0.030m
Connections internal	1x USB-A socket
Type	Interface card
Packaging volume	0.0007m³
Slot	PCIe
Width packaging	0.125m
Connections external	2x PCI 32-Bit
Length packaging	0.180m
Interface	PCIe to 2x PCI
Weight	0.184kg
Net weight	0.060kg
Chipset	ASMedia ASM1083
Article width	6.00cm
Article height	2.50cm
Article length	13.20cm
Low Profile
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), TÜV mark
Weight & dimensions
Width	132 mm
Depth	1.84 mm
Height	60 mm
Weight	2.5 kg

---
