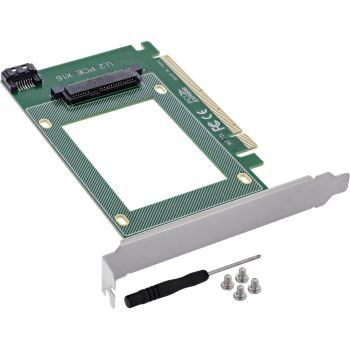

InLine® Interface card, PCIe x16 to U.2 NVMe, SFF-8639, internal content_copy

Flexible system expansion for NVMe SSDs: Enables the integration of 2.5-inch U.2 NVMe drives into systems without a native U.2 interface.
High transfer speed thanks to PCIe 3.0 x16: Utilizes the full bandwidth of modern PCIe SSDs for fast data access and transfers.
Additional SATA port for greater versatility: Supports 2.5-inch SATA SSDs or HDDs via the included SATA III connector.
Driverless installation for maximum compatibility: Works directly under Windows and Linux thanks to native NVMe support – no software required.
Includes accessories for immediate installation: With screw, screwdriver, and SATA cable for direct and easy commissioning.
The InLine® PCIe x16 U.2 NVMe interface card is the ideal solution for anyone who wants to integrate 2.5-inch NVMe SSDs with U.2 connection into existing systems. It offers a simple and reliable expansion option, especially in servers, workstations, or high-performance PCs without a native U.2 interface.
The card is inserted into a free PCIe x16 or x16 slot and uses PCIe 3.0 for fast data connection. Modern operating systems automatically recognize NVMe SSDs, so no driver installation is required. In addition to the U.2 connection, the card also offers an additional SATA port, allowing SATA SSDs or HDDs to be flexibly integrated.
The included accessories make installation straightforward and immediate. Whether for professional server environments, system integrators, or demanding users, this interface card combines maximum performance with maximum compatibility.
Technical data:
PCIe standard: PCIe 3.0 x16 (compatible with PCIe 2.0 and PCIe 1.0)
Interfaces:
1x U.2 NVMe SFF-8639 (for 2.5-inch NVMe SSDs)
1x SATA port (for 2.5-inch SATA SSDs or HDDs)
Compatibility: 2.5-inch U.2 NVMe SSDs (e.g., Intel SSD 750)
SATA operation: Connection via SATA III cable (included)
Drivers: No driver installation required
Supported PCIe generations: Gen3 / Gen2 / Gen1
Supported drive size: 2.5 inches
Mounting: Screw mounting for 2.5-inch drives
Note: NVMe boot support depends on the motherboard.
Supported operating systems:
Windows 8 / 8.1 / 10 / 11
Windows Server 2012 R2 and newer
Linux with native NVMe support (e.g., Ubuntu, Fedora, SUSE, Red Hat)
Scope of delivery:
1x InLine PCIe x16 U.2 NVMe interface card
1x screw
1x screwdriver
1x SATA III cable
1x user manual in German/English

Design
Country of origin	Taiwan
Internal
Features
PCI Express CEM revision	3.0
Other features
Dimensions (WxDxH)	160 x 1.23 x 120 mm
Packaging data
Cables included	SATA
Package width	125 mm
Package depth	180 mm
Package height	30 mm
Package weight	49 g
Package volume	700 cm³
Package type	Box
Manual
Ports & interfaces
Host interface	PCIe
Host interface gender	Male
Output interface	SATA, U.2
Expansion card standard	PCIe 3.0
SATA revision	3.0
Internal SATA ports quantity	1
NVMe
System requirements
Windows operating systems supported	Windows 10, Windows 11, Windows 8, Windows 8.1
Server operating systems supported	Windows Server 2012 R2, Windows Server 2013, Windows Server 2016, Windows Server 2019, Windows Server 2022
Linux operating systems supported
Technical data
Slot	PCIe
Length packaging	0.180m
Article width	12.00cm
Article length	16.00cm
Width packaging	0.125m
Article height	2.00cm
Height packaging	0.030m
Packaging volume	0.0007m³
Weight	0.123kg
Type	Interface card
Connections internal	1x U.2 NVMe SFF-8639
Interface	NVMe
Net weight	0.049kg
Connections external	None
Low Profile
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), TÜV mark
Weight & dimensions
Width	160 mm
Depth	1.23 mm
Height	120 mm
Weight	2 kg

---
