InLine® Interface card, PCIe x4 to M.2 NVMe Key M (22110), low-profile content_copy

Flexible SSD compatibility: Supports M.2 SSDs with Key M and B+M keys based on NVMe – ideal for high-performance storage solutions.
Wide case compatibility: Thanks to low-profile sheet metal, also suitable for compact computer cases and server environments.
No additional cabling required: Power is supplied directly via the PCIe bus – easy integration without additional effort.
High performance reserves: PCIe v3.0 x4 for fast data transfer with low latency – ideal for demanding applications.
Extensive SSD form factor support: Compatible with SSD lengths from 2230 to 22110 – maximum flexibility in system design.
The InLine PCIe x4 interface card offers a powerful solution for integrating modern NVMe SSDs into existing systems. Developed in accordance with PCI Express v3.0, it allows the use of M.2 SSDs with Key M and B+M Key, provided they are based on the NVMe protocol. SATA or PCIe x2 variants are consistently excluded to ensure maximum performance and compatibility.
Particularly practical: the card supports SSD lengths from 2230 to 22110, making it suitable for numerous applications – from compact mini PCs to high-performance workstations. Power is supplied entirely via the PCIe bus at 3.3 V, eliminating the need for a separate power supply. This makes installation much easier, especially in cramped system environments.
Mechanical integration is also flexible: the card fits into PCIe slots from x4 upwards (x4, x8, x16) and comes with a low-profile slot bracket, making installation in small cases easy. The included heat sink supports thermally stable use even under full load.
Compatibility with current operating systems such as Windows 10/11, Windows Server, and Linux (with NVMe support) rounds off the profile of this powerful interface card – ideal for professional users and ambitious tech enthusiasts alike.
Technical data
PCIe version: PCIe v3.0 x4 lanes (backward compatible with PCIe v2.0 / v1.0)
Interface: PCIe x4 (mechanically usable in x4/x8/x16)
Supported SSD formats: 2230 / 2242 / 2260 / 2280 / 22110
Supported SSD types:

• M.2 Key M (NVMe)
• M.2 Key B+M (NVMe only, no SATA)
Not compatible:

• M.2 SATA SSDs (B-Key)
• M.2 PCIe x2 SSDs (B-Key)
Protocol: NVMe (optimized for high I/O performance and low latency)
Power supply: directly via PCIe bus (3.3 V)
Operating temperature: -40 °C to +85 °C
Storage temperature: -40 °C to +85 °C
Maximum humidity: 90%, non-condensing
Supported operating systems
Windows 8 / 8.1 / 10 / 11
Windows Server 2012 R2 or newer
Linux (with NVMe support)

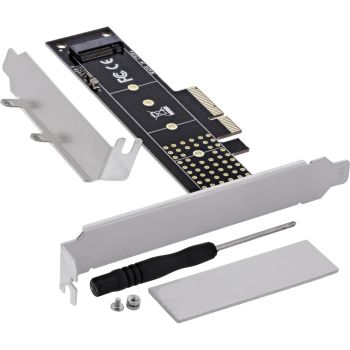

Scope of delivery
1x InLine PCIe x4 interface card to M.2 Key M (NVMe)
1x low-profile slot bracket
1x heat sink
1x screwdriver
1x screw
1x user manual German/English



Design
Internal
Operational conditions
Operating temperature (T-T)	-40 - 85 °C
Storage temperature (T-T)	-40 - 85 °C
Other features
Dimensions (WxDxH)	145 x 1.06 x 120 mm
Packaging data
Package width	125 mm
Package depth	180 mm
Package height	30 mm
Package weight	30 g
Package volume	700 cm³
Package type	Box
Manual
Ports & interfaces
Host interface	PCIe
Host interface gender	Male
Output interface	M.2
Expansion card standard	PCIe 3.0
Number of M.2 (M) slots	1
NVMe
System requirements
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1
Server operating systems supported	Windows Server 2012 R2, Windows Server 2013, Windows Server 2016, Windows Server 2019, Windows Server 2022
Linux operating systems supported
Technical data
Interface	NVMe
Connections external	None
Slot	PCIe
Packaging volume	0.0007m³
Article width	12.00cm
Weight	0.106kg
Width packaging	0.125m
Net weight	0.030kg
Type	Interface card
Article height	2.00cm
Connections internal	M.2-NVMe-SSD
Height packaging	0.030m
Length packaging	0.180m
Article length	14.50cm
Low Profile
Technical details
Compliance certificates	TÜV mark
Weight & dimensions
Width	145 mm
Depth	1.06 mm
Height	120 mm
Weight	2 kg

---
