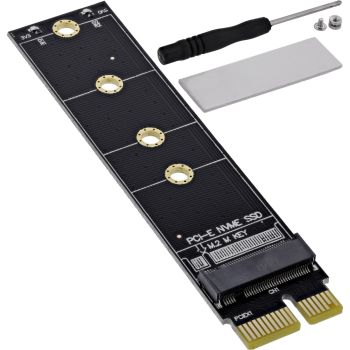

InLine® Interface card, PCIe x1 to M.2 Key M NVMe SSD content_copy

Full NVMe compatibility: Supports M.2 Key M and B+M SSDs with PCIe NVMe protocol for maximum performance.
Easy retrofitting: Enables quick installation of an NVMe SSD in PCs without an M.2 slot—ideal for upgrades.
Flexible design support: Compatible with common SSD lengths 2230, 2242, 2260, and 2280.
Powered directly via PCIe: No separate power cable required—power is supplied via the PCIe bus.
Universally applicable: Works in x1, x4, x8, and x16 slots under Windows and Linux.
The InLine® PCIe x1 to M.2 Key M interface card enables quick and easy integration of NVMe SSDs into existing PC or server systems. The adapter was developed for professional applications and ambitious users who do not want to do without modern NVMe performance – even if the motherboard does not offer its own M.2 slot.
The card supports SSDs with M.2 Key M and B+M Key, provided they use the PCIe NVMe protocol. SATA SSDs or PCIe x2 solutions with B-Key are deliberately not supported in order to ensure maximum performance and compatibility. The flexible acceptance of SSDs in form factors 2230 to 2280 allows the use of a wide variety of modules – from compact industrial applications to powerful desktop upgrades.
An additional highlight: Power is supplied entirely via the PCIe bus, eliminating the need for external cabling. The mechanical design allows use in different PCIe slots – from x1 to x16. The included components, such as a screwdriver, screw, and passive heat sink, make commissioning particularly convenient.
Thanks to support for current Windows and Linux versions, the adapter is versatile—for example, in workstations, test systems, or as a fast memory expansion. The InLine® PCIe x1 interface card stands for reliability, easy handling, and high data rates—in a compact format.
PCIe version: PCIe v3.0 x1 lane (backward compatible with PCIe v2.0 / v1.0)
Interface: PCIe x1 lane (mechanically usable in x4/x8/x16 slots)
Supported SSD formats: 2230 / 2242 / 2260 / 2280
Supported SSD types:

• M.2 Key M (NVMe)
• M.2 Key B+M (NVMe only, no SATA)
Not compatible:

• M.2 SATA SSDs (B-Key)
• M.2 PCIe x2 SSDs (B-Key)
Protocol: NVMe (Non-Volatile Memory Express, optimized for high I/O performance)
Power supply: Directly via PCIe bus (3.3 V)
Operating temperature: -40 °C to +85 °C
Storage temperature: -40 °C to +85 °C
Maximum humidity: 90%, non-condensing
Supported operating systems:
Windows 8 / 8.1 / 10 / 11
Windows Server 2012 R2 or newer
Linux (with NVMe support)
A free PCIe x1, x4, x8, or x16 slot is required.
Scope of delivery:
1x InLine PCIe x1 interface card to M.2 Key M
1x heat sink
1x screwdriver
1x screw
1x user manual German/English



Design
Country of origin	Taiwan
Internal
Operational conditions
Operating temperature (T-T)	-40 - 85 °C
Storage temperature (T-T)	-40 - 85 °C
Other features
Dimensions (WxDxH)	100 x 0.7 x 24 mm
Packaging data
Package width	145 mm
Package depth	150 mm
Package height	30 mm
Package weight	9 g
Package volume	1000 cm³
Package type	Hanging box
Manual
Ports & interfaces
Host interface	PCIe
Host interface gender	Male
Output interface	M.2
Expansion card standard	PCIe 3.0
Number of M.2 (M) slots	1
NVMe
System requirements
Windows operating systems supported	Windows 10, Windows 11, Windows 8, Windows 8.1
Server operating systems supported	Windows Server 2012 R2, Windows Server 2013, Windows Server 2016, Windows Server 2019, Windows Server 2022
Linux operating systems supported
Technical data
Weight	0.070kg
Interface	NVMe
Net weight	0.009kg
Connections external	None
Width packaging	0.145m
Article length	10.00cm
Height packaging	0.030m
Slot	PCIe
Length packaging	0.150m
Article width	2.40cm
Connections internal	M.2-NVMe-SSD
Packaging volume	0.0010m³
Type	Interface card
Article height	0.70cm
Low Profile
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), TÜV mark
Weight & dimensions
Width	100 mm
Depth	0.7 mm
Height	24 mm
Weight	700 g

---
