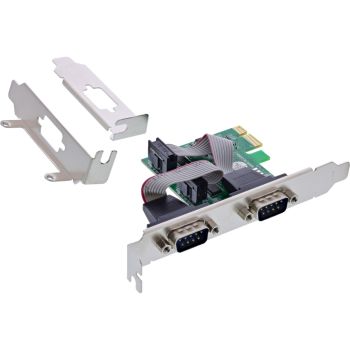

InLine® Interface card, 2x serial RS-232, PCIe, AX99100, low-profile content_copy

Two RS-232 interfaces via PCIe: Ideal for connecting older serial devices such as modems, measurement systems or industrial hardware.
Full protocol support: Supports various data formats, parity types and freely configurable baud rates.
Integrated flow control and 256-byte FIFO: Stable data transmission thanks to hardware/software control and large buffers for professional applications.
Compatible with Windows & Linux: Supports Windows XP, Server 2003 and Linux from kernel 2.6.x – easy driver integration.
Low-profile & full-profile compatible: Includes both slot brackets for full flexibility when installing in different types of enclosures.
With the InLine® PCIe interface card with two RS-232 ports, you can bring classic serial interfaces back into modern PC systems. Perfect for anyone who continues to rely on devices with COM ports – for example, in measurement technology, cash register solutions or industrial control systems.
The card uses the proven ASIX AX99100 chipset for stable and reliable communication. It supports a transfer speed of up to 115,200 bps, a wide range of parity types and bit formats, as well as flow control via hardware or software. A large 256-byte FIFO buffer on each channel prevents data loss even under high loads.
The low-profile bezel supplied makes the card suitable not only for standard housings but also for compact form factors. Thanks to support for current Windows and Linux systems, installation is extremely easy.
Whether for retro technology, machine connection or diagnostic hardware, this interface card is the ideal solution for anyone who continues to rely on RS-232.
Interface: PCIe 2.0 x1
Connections: 2x RS-232 (9-pin Sub-D)
Chipset: ASIX AX99100
Baud rate: up to 115,200 bps
FIFO: 256 bytes send/receive
Parity: even, odd, none, space, mark
Data formats: 5–9 bits
Flow control: hardware & software
Supports IrDA mode
Compatible with Windows XP+, Linux 2.6.x and higher
Slot covers: standard & low-profile included

Design
Country of origin	China
Internal
Other features
Dimensions (WxDxH)	120 x 1.24 x 75 mm
Packaging data
Package width	140 mm
Package depth	150 mm
Package height	30 mm
Package weight	46 g
Package volume	1000 cm³
Ports & interfaces
Host interface	PCIe
Host interface gender	Male
Output interface	Serial
Expansion card standard	PCIe 2.0
Serial ports quantity	2
Serial interface type	RS-232, 9-pin
Power
Power management
System requirements
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8, Windows Vista, Windows XP
Linux operating systems supported	Kernel 2.6, Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4, Linux Kernel 5.10, Linux Kernel 5.11, Linux Kernel 5.12, Linux Kernel 5.13, Linux Kernel 5.14, Linux Kernel 5.15, Linux Kernel 5.19, Linux Kernel 5.4, Linux Kernel 5.8, Linux Kernel 5.9, Linux Kernel 6.2
Server operating systems supported	Windows Server 2003, Windows Server 2007, Windows Server 2008, Windows Server 2012, Windows Server 2013, Windows Server 2016, Windows Server 2019, Windows Server 2022
Technical data
Length packaging	0.150m
Chipset	ASIX AX99100
Connections internal	None
Type	Interface card
Article width	7.50cm
Packaging volume	0.0010m³
Net weight	0.046kg
Interface	Serial
Slot	PCIe
Height packaging	0.030m
Transmission rate	115.2Kb/s
Weight	0.124kg
Connections external	2x 9pin serial
Article length	12.00cm
Width packaging	0.140m
Article height	2.50cm
Low Profile
Weight & dimensions
Width	120 mm
Depth	1.24 mm
Height	75 mm
Weight	2.5 kg

---
