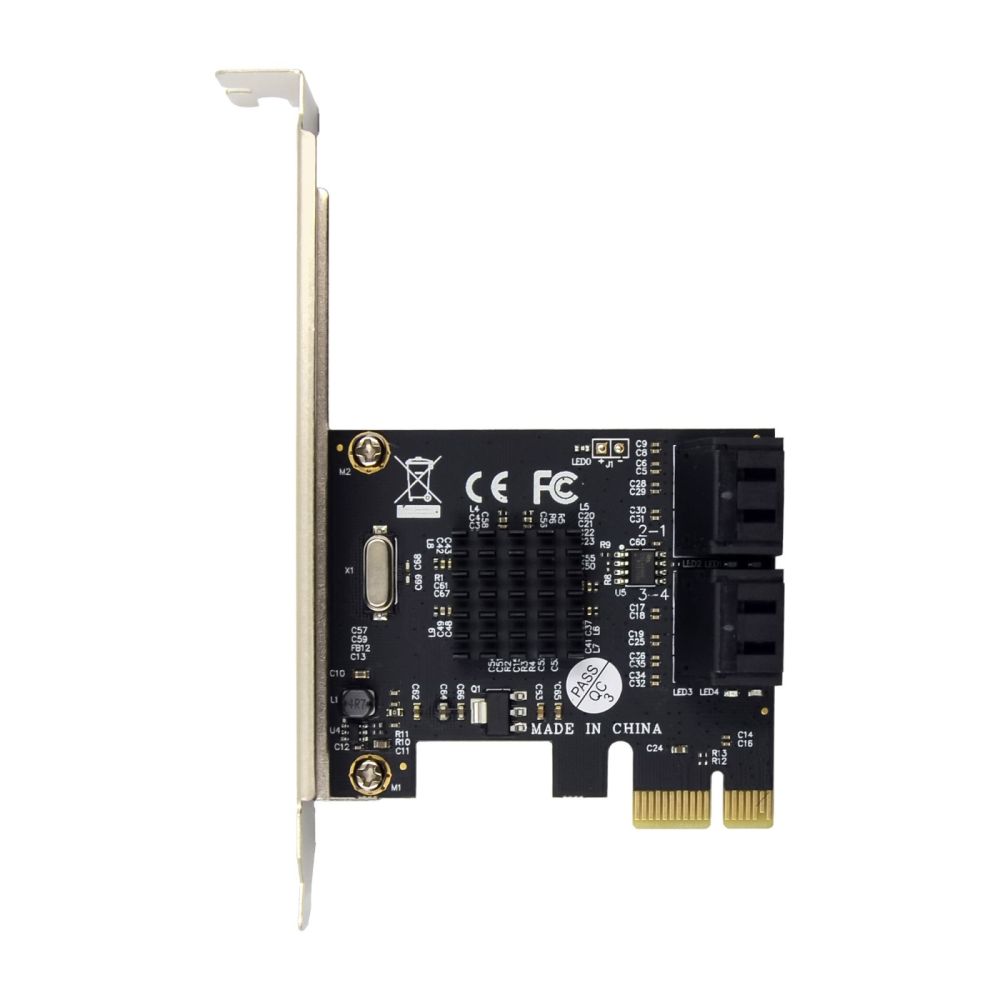

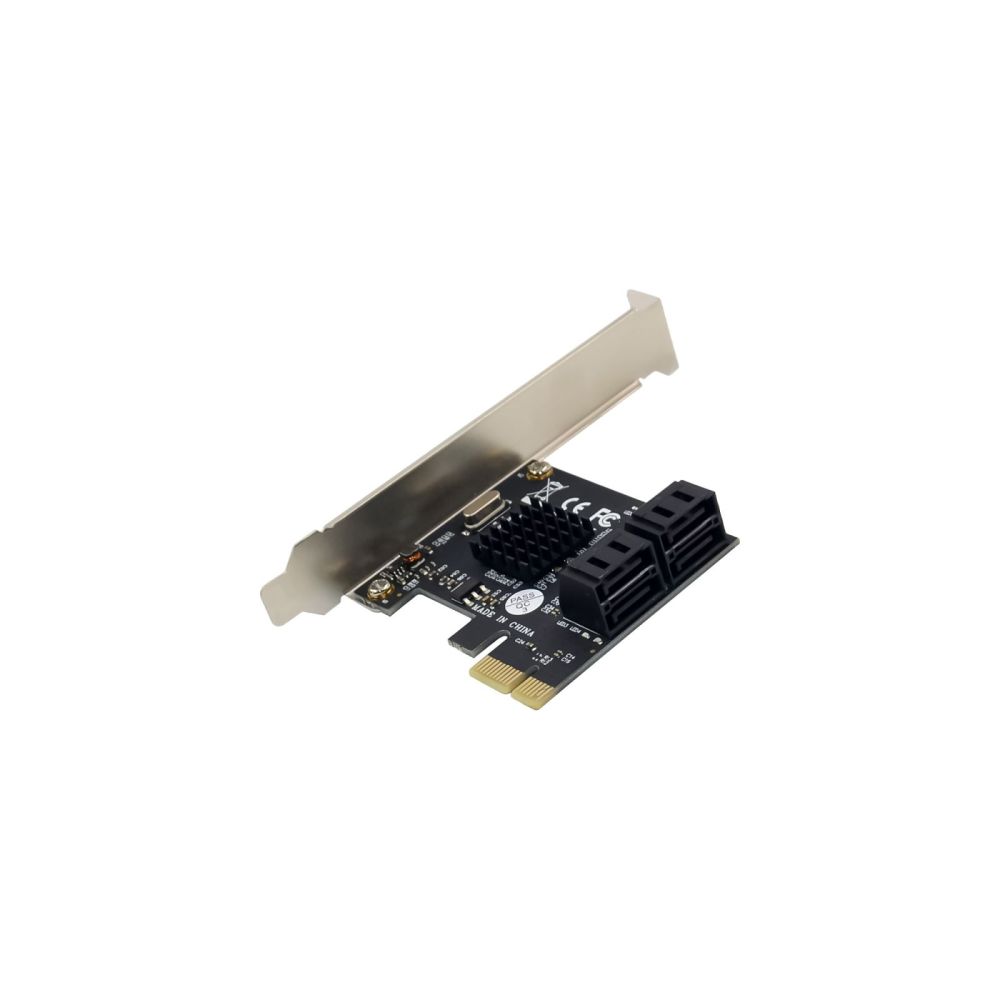

InLine® Interface card, 4x SATA 6Gb/s, PCIe 2.0, Hot Swap, NCQ content_copy

Four additional SATA ports: Ideal for expanding your system with SSDs or hard drives – up to 6Gb/s data transfer rate per channel.
Hot swap & hot plug supported: Swap or add drives while in operation – no reboot or installation required.
Broad PCIe compatibility: Works with PCIe x1, x4, x8 and x16 slots – maximum flexibility for PC and server upgrades.
Optimised by Marvell chipset: Reliable performance and compatibility with NCQ, port multipliers and modern operating systems.
Backward compatible with older drives: Also supports SATA 3 Gb/s and 1.5 Gb/s – ideal for mixed storage environments.
The InLine® PCIe interface card with four SATA 6Gb/s ports brings modern storage connectivity to your PC or server. The card is ideal for users who want to integrate SSDs or hard drives for data expansion, backup or RAID systems.
It can be conveniently installed in any PCIe slot (x1 to x16) and supports all common SATA speeds – from 1.5Gb/s to 3Gb/s to 6Gb/s. Integration is quick and easy, with no complicated configuration required. Hot plug and hot swap allow drives to be added or replaced during operation.
The high-quality Marvell chipset ensures stable performance and supports Native Command Queuing (NCQ) and port multipliers for advanced storage solutions. Whether for a home server, creative workstation or simply for storage upgrades, this card is the ideal companion.
The card is compatible with Windows XP, Server 2003 or newer, as well as modern Linux systems.
Interface: PCI Express 2.0 x1 (compatible with x1, x4, x8, x16)
Connections: 4x SATA 6Gb/s ports
Chipset: Marvell 88SE9215
Supports hot plug, hot swap, NCQ
Supports port multipliers (FIS / command-based)
Compatible with SATA 6Gb/s, 3Gb/s, 1.5Gb/s
Operating systems: Windows XP or newer, Server 2003 or newer, Linux kernel 2.6.x or higher

Design
Internal
Hot-swap
Hot-Plug support
Features
Data transfer rate (max)	6 Gbit/s
Other features
Dimensions (WxDxH)	120 x 1.1 x 80 mm
Packaging data
Package width	140 mm
Package depth	150 mm
Package height	30 mm
Package weight	38 g
Package volume	700 cm³
Ports & interfaces
Host interface	SATA
Host interface gender	Male
Output interface	SATA
Expansion card standard	PCIe 2.0
SATA revision	3.0
System requirements
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8, Windows Vista, Windows XP
Linux operating systems supported	Kernel 2.6, Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4, Linux Kernel 5.10, Linux Kernel 5.11, Linux Kernel 5.12, Linux Kernel 5.13, Linux Kernel 5.14, Linux Kernel 5.15, Linux Kernel 5.19, Linux Kernel 5.4, Linux Kernel 5.8, Linux Kernel 5.9, Linux Kernel 6.2
Server operating systems supported	Windows Server 2003, Windows Server 2007, Windows Server 2008, Windows Server 2012, Windows Server 2013, Windows Server 2016, Windows Server 2019, Windows Server 2022
Technical data
Packaging volume	0.0007m³
Net weight	0.038kg
Weight	0.110kg
Length packaging	0.150m
Chipset	Marvell 88SE9215
Type	Interface card
Article width	8.00cm
Connections internal	4x SATA 6Gb/s
Article length	12.00cm
Width packaging	0.140m
Article height	2.00cm
Interface	SATA
Connections external	None
Transmission rate	6Gb/s
Slot	PCIe
Height packaging	0.030m

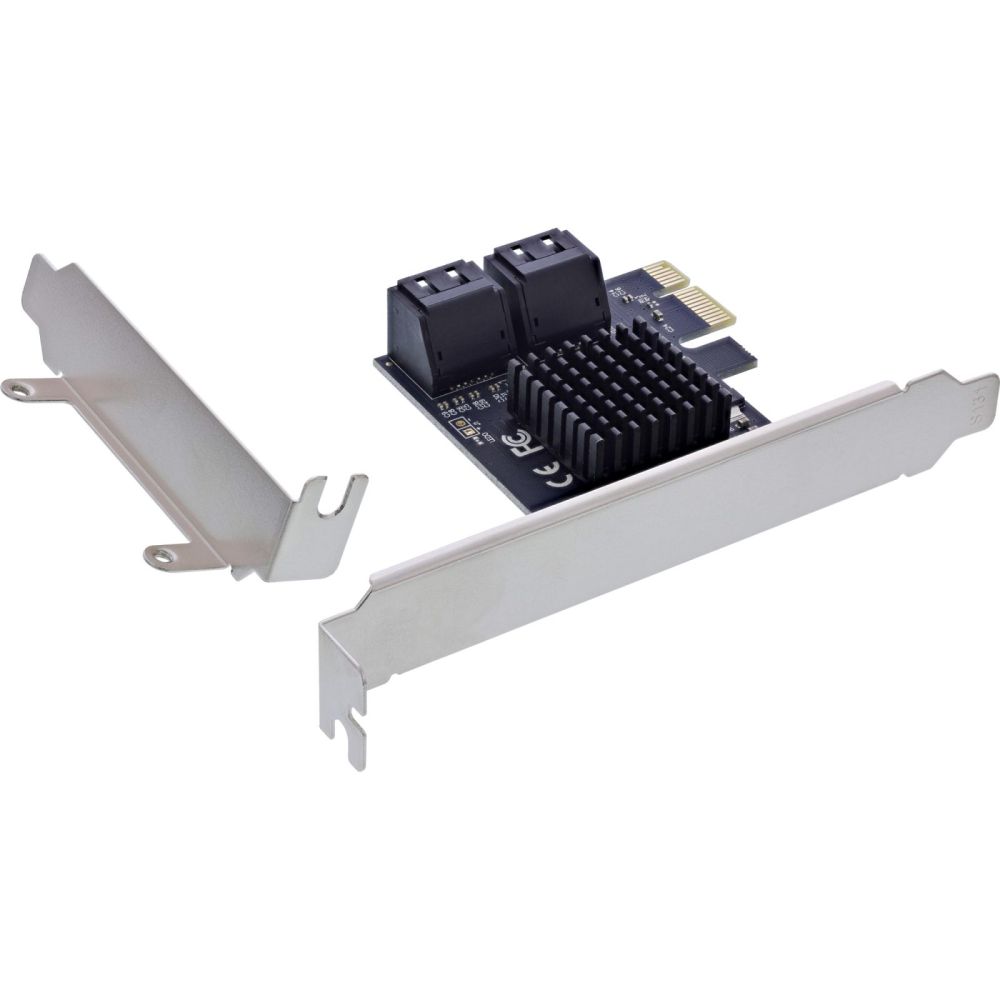

Low Profile
Weight & dimensions
Width	120 mm
Depth	1.1 mm
Height	80 mm
Weight	2 kg

---
