InLine® SATA 6Gb/s Controller with 4x SATA, PCIe 2.0 content_copy

Easily add four SATA 6 Gb/s ports via PCIe x1Four additional drive ports: 4x SATA with 6 Gb/s for SSDs and HDDs.
Compatible with older drives: Also works with 3 Gb/s and 1.5 Gb/s devices.
Stable performance with parallel access: AHCI, NCQ, and port multiplier support.
Maintenance-friendly operation: Hot Swap enables quick drive changes.
Fast status check: Activity LED shows read/write access.

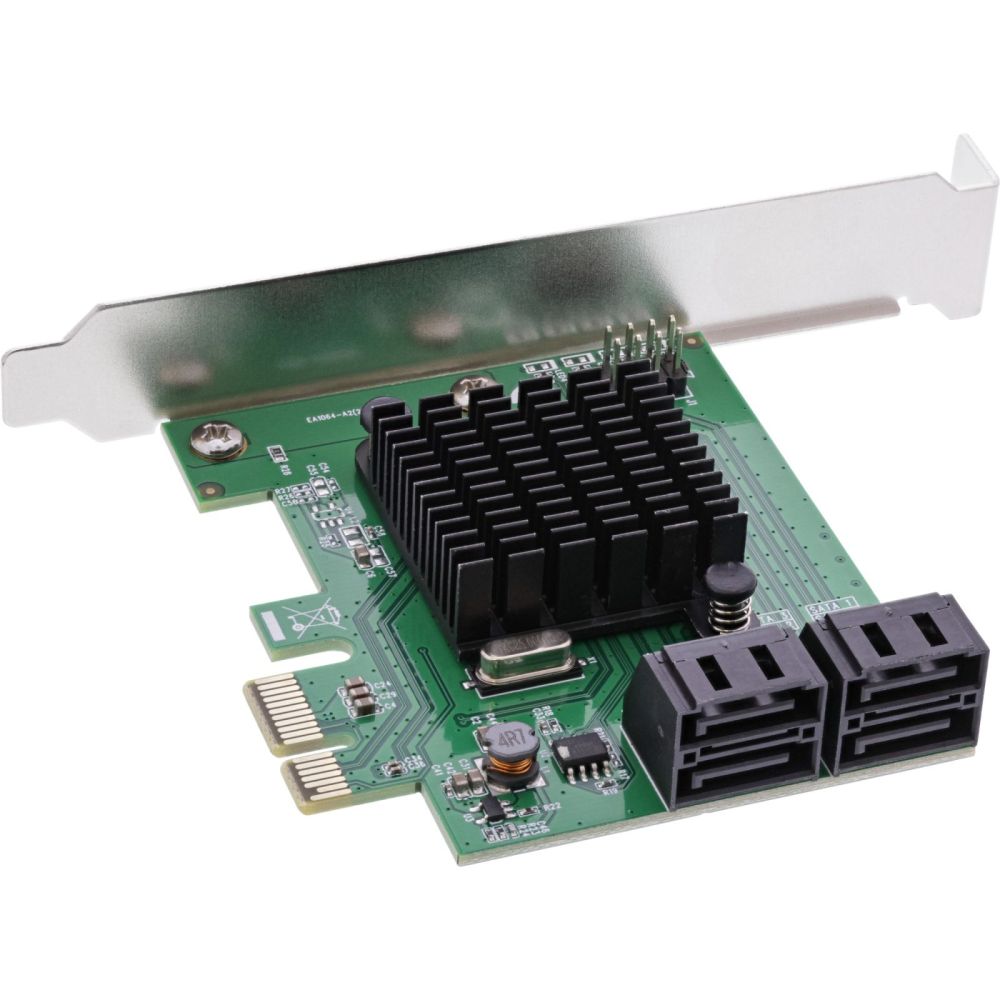

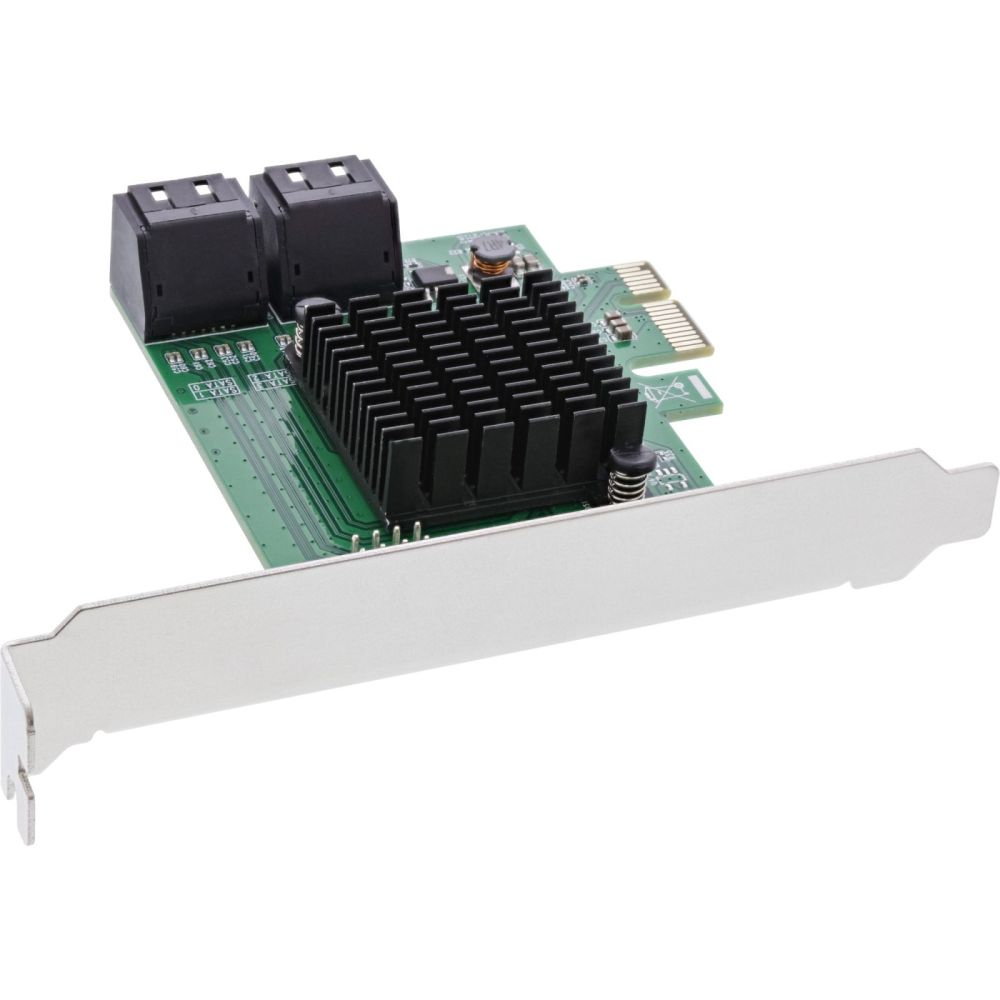

This PCIe expansion card adds four SATA ports with 6 Gb/s and expands storage capacity and data throughput without replacing the motherboard. It supports operation of modern SSDs and HDDs as well as features such as AHCI, NCQ, and port multiplier (FIS- or command-based) for efficient transfers. An activity LED clearly indicates access.
In professional IT environments, in on-site installations and service deployments, the card facilitates the swift expansion of existing infrastructures. It can be installed in available PCI Express x1 slots and enables flexible storage expansions in companies and public institutions.
Connector: 4x SATA 6 Gb/s
Bus interface: PCI Express x1
Standard: SATA 6 Gb/s
Compatibility: SATA 6 Gb/s, 3 Gb/s, 1.5 Gb/s HDD/SSD
Modes: AHCI
Features: NCQ, port multiplier (FIS- or command-based), Hot Swap
Controller: ASMedia ASM1064
Operating systems: Windows 10/8/7 (32/64 bit), Linux, Mac OS
LED indicator: Activity LED for drive access

Design
LED indicators	Activity
Internal
Hot-Plug support
Features
Data transfer rate (max)	6 Gbit/s
Native Command Queuing (NCQ)
Other features
Data transfer rate	6000 Mbit/s
Minimum system requirements	PCI Express X1; PCI-EX2 X4 X8 X16
Dimensions (WxDxH)	120 x 1.34 x 20 mm
Packaging data
Quantity per pack	1 pc(s)
Package width	170 mm
Package depth	175 mm
Package height	40 mm
Package weight	56 g
Package volume	1200 cm³
Package type	Box
Manual
Ports & interfaces
Host interface	PCIe
Host interface gender	Male
Output interface	SATA
Expansion card form factor	Low-profile
Expansion card standard	PCIe 2.0
SATA revision	3.0
Internal SATA ports quantity	4
System requirements
Windows operating systems supported	Windows 10, Windows 7, Windows 8
Mac operating systems supported	MacOS
Linux operating systems supported
Technical data
Type	Interface card
Article height	9.00cm
Transmission rate	6Gb/s
Connections external	None
Width packaging	0.170m
Slot	PCIe
Height packaging	0.040m
Chipset	ASMedia ASM1064
Weight	0.134kg
Length packaging	0.175m
Article length	12.00cm
Connections internal	4x SATA 6Gb/s
Interface	SATA
Net weight	0.056kg
Packaging volume	0.0012m³
Article width	2.00cm
Low Profile
Weight & dimensions
Width	120 mm
Depth	1.34 mm
Height	20 mm
Weight	9 kg

---
