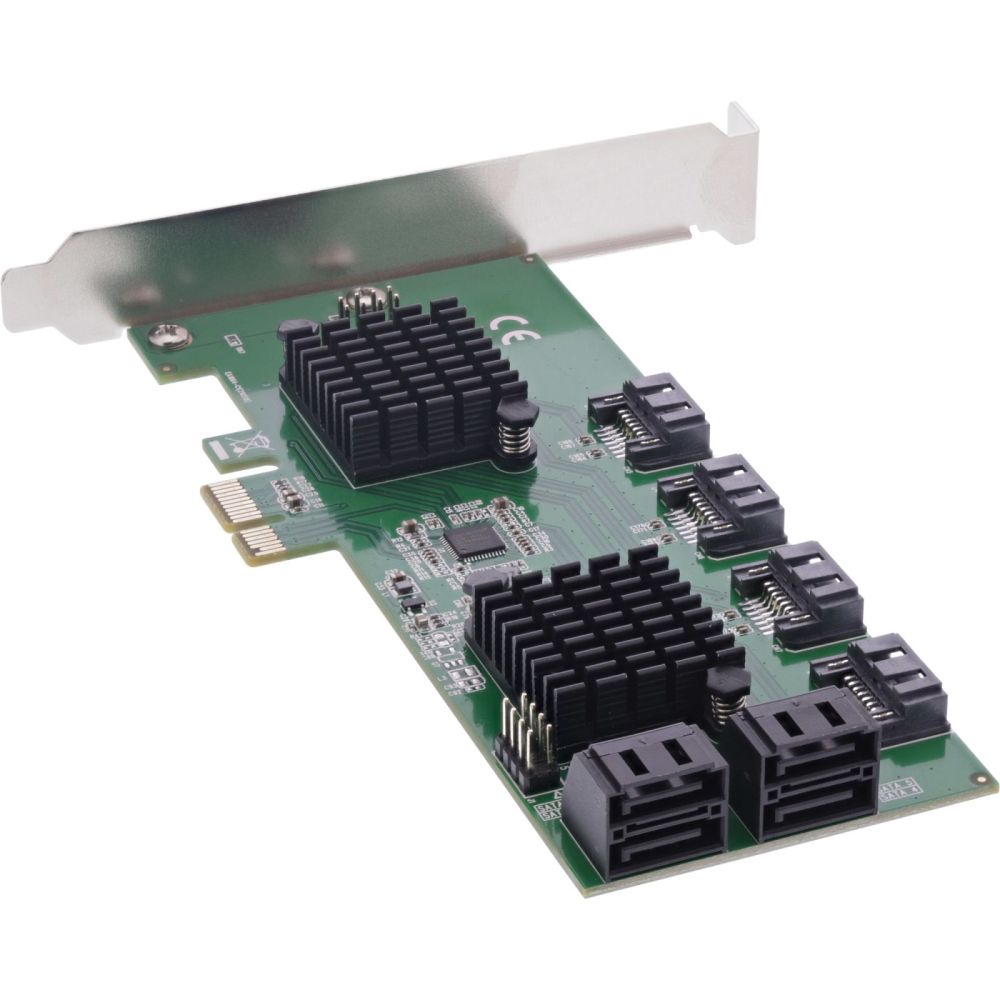

InLine® Interface card, 8x SATA 6Gb/s controller, PCIe 2.0 (PCI Express)
|
111,58 EUR |
|
|
( 132,78 EUR incl. VAT ) ≈ £93.39 | ≈ $124.86 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 22196931 |
| Mfg Part No: | 76617K |
| UPC/EAN: | 4043718302079 |
| Weight: | 0.154 kg |
Product information for Inline 76617K:
Eight additional SATA ports via PCIe for flexible storage expansionConnect up to 8 drives immediately: 8 SATA ports for HDDs and SSDs supplement missing motherboard ports.
Easy retrofit via PCIe x1: PCIe 2.0 compatible, backward compatible with PCIe 1.0 and usable in x2/x4/x8/x16 slots.
Efficient data management: AHCI and NCQ support high-performance access and queuing.
Fast drive changes during operation: Hot Plug and Hot Swap facilitate service and upgrades.
Scalability via port multiplier: Support for FIS and command switch for flexible connectivity.
The PCIe interface card adds eight SATA 3.0 ports with 6 Gb/s to desktop and workstation systems when the existing motherboard ports are not sufficient. This lets you connect additional HDDs and SSDs and benefit from AHCI, NCQ as well as Hot Plug/Hot Swap for efficient integration and short interruptions.
In professional IT environments, in on-site installations and in service deployments, the solution integrates seamlessly into existing infrastructures. Use in PCIe slots from x1 to x16 and support for port multipliers facilitate scalable storage expansions in companies and public institutions.
Interface expansion: 8x SATA 3.0 (6 Gb/s)
Bus interface: PCI Express 2.0 x1, backward compatible with PCI Express 1.0
Support: AHCI, NCQ, Hot Plug, Hot Swap
Port multiplier: FIS switch, command switch
System requirements: PCI Express x1 slot, compatible with x2, x4, x8, x16
Operating systems: Windows 10/8/7 (32/64 bit), Linux, Mac OS
Chipset: ASM1182E + 2x ASM1064

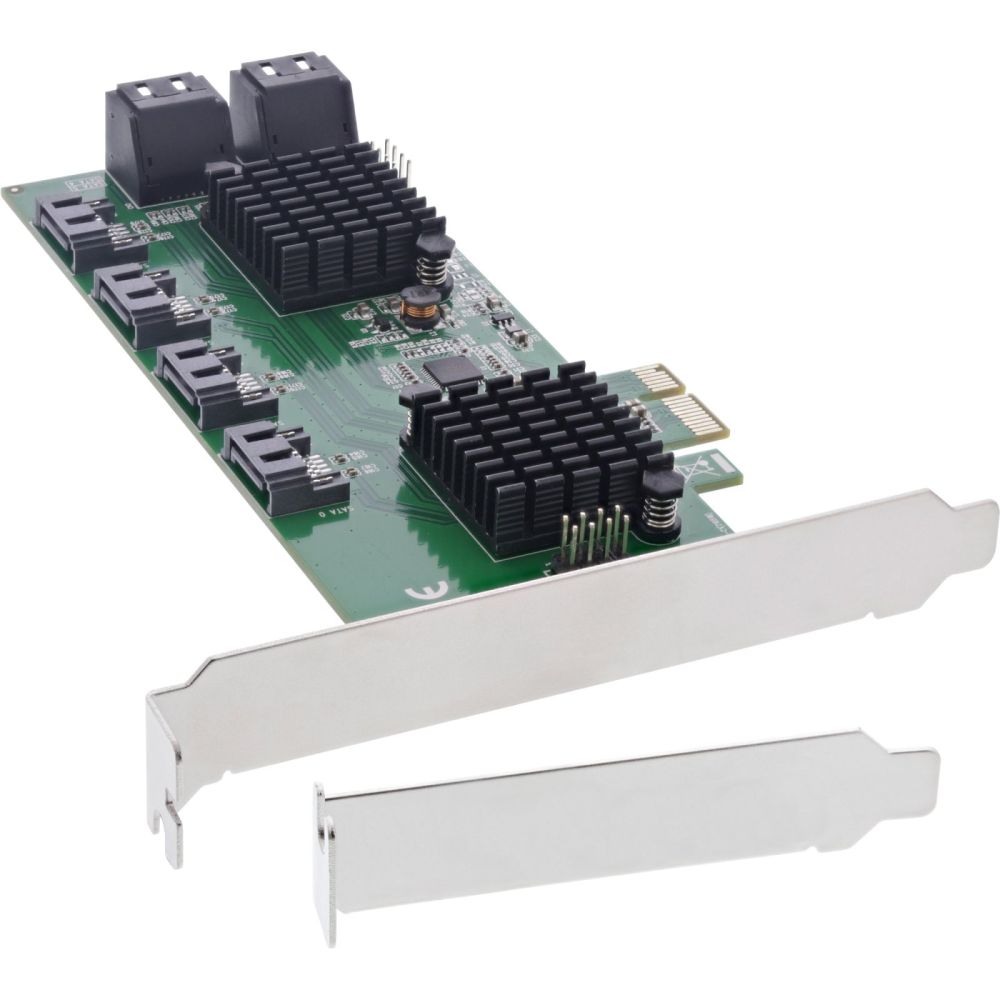

Scope of delivery: PCI Express SATA controller, low-profile slot bracket, manual
Backward compatibility: SATA 2.0, SATA 1.0
Easy retrofit via PCIe x1: PCIe 2.0 compatible, backward compatible with PCIe 1.0 and usable in x2/x4/x8/x16 slots.
Efficient data management: AHCI and NCQ support high-performance access and queuing.
Fast drive changes during operation: Hot Plug and Hot Swap facilitate service and upgrades.
Scalability via port multiplier: Support for FIS and command switch for flexible connectivity.
The PCIe interface card adds eight SATA 3.0 ports with 6 Gb/s to desktop and workstation systems when the existing motherboard ports are not sufficient. This lets you connect additional HDDs and SSDs and benefit from AHCI, NCQ as well as Hot Plug/Hot Swap for efficient integration and short interruptions.
In professional IT environments, in on-site installations and in service deployments, the solution integrates seamlessly into existing infrastructures. Use in PCIe slots from x1 to x16 and support for port multipliers facilitate scalable storage expansions in companies and public institutions.
Interface expansion: 8x SATA 3.0 (6 Gb/s)
Bus interface: PCI Express 2.0 x1, backward compatible with PCI Express 1.0
Support: AHCI, NCQ, Hot Plug, Hot Swap
Port multiplier: FIS switch, command switch
System requirements: PCI Express x1 slot, compatible with x2, x4, x8, x16
Operating systems: Windows 10/8/7 (32/64 bit), Linux, Mac OS
Chipset: ASM1182E + 2x ASM1064
Scope of delivery: PCI Express SATA controller, low-profile slot bracket, manual
Backward compatibility: SATA 2.0, SATA 1.0
| Design | |
| Product colour | Multicolour |
| Purpose | PC |
| Internal | |
| Other features | |
| Data transfer rate | 6000 Mbit/s |
| Dimensions (WxDxH) | 165 x 1.54 x 120 mm |
| Packaging data | |
| Quantity | 1 |
| Package width | 165 mm |
| Package depth | 175 mm |
| Package height | 40 mm |
| Package weight | 78 g |
| Package volume | 1200 cm³ |
| Ports & interfaces | |
| Host interface | PCIe |
| Output interface | SATA |
| Expansion card form factor | Low-profile |
| Expansion card standard | PCIe 2.0 |
| SATA revision | 3.0 |
| Internal SATA ports quantity | 8 |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, |
| Technical data | |
| Type | Interface card |
| Article height | 2.50cm |
| Height packaging | 0.040m |
| Chipset | ASMedia ASM1182E + 2x ASMedia ASM1064 |
| Connections external | None |
| Interface | SATA |
| Net weight | 0.078kg |
| Width packaging | 0.165m |
| Length packaging | 0.175m |
| Article length | 16.50cm |
| Weight | 0.154kg |
| Transmission rate | 6Gb/s |
| Slot | PCIe |
| Packaging volume | 0.0012m³ |
| Article width | 12.00cm |
| Connections internal | 8x SATA 6Gb/s |
| Low Profile | |
| Weight & dimensions | |
| Width | 165 mm |
| Depth | 1.54 mm |
| Height | 120 mm |
| Weight | 2.5 kg |
