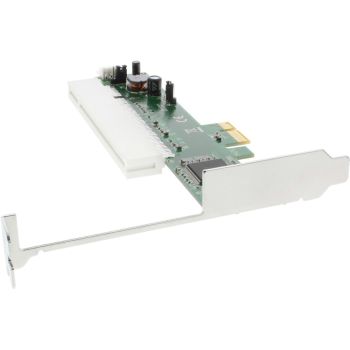

InLine® Interface adapter card, PCI to PCIe, for PCIe x1/x4/x8/x16 content_copy

PCI functionality on modern motherboards: Adapter card converts a PCI Express slot into an independent PCI slot.
Flexible compatibility with PCIe interfaces: Supports PCIe x1, x4, x8, and x16 for versatile applications.
Stable data transfer without loss of performance: Data rate of 2.5 Gb/s at 3.3 V PCI signaling with 5 V I/O tolerance.
Complies with established industry standards: Compatible with PCIe 1.1, PCI/PCI-X Bridge 1.0, and PCI Local Bus 3.0.
Easy integration thanks to plug-and-play: No driver required, can be used immediately in existing infrastructures.
The InLine PCI to PCIe interface adapter card is a powerful solution for expanding modern systems with classic PCI functionality. It enables the use of existing PCI expansion cards on motherboards with PCI Express slots.
The adapter card converts a free PCIe slot into an independent 32-bit PCI slot. Compatible with PCIe x1, x4, x8, and x16. Data transfer takes place at 2.5 Gb/s. The card works with 3.3 V PCI signaling and is 5 V I/O tolerant.
The implementation is based on established specifications: PCI Express Base Revision 1.1, PCI Express to PCI/PCI-X Bridge Revision 1.0, and PCI Local Bus Revision 3.0. This ensures reliable operation even in demanding applications.
The card plugs directly into the PCIe slot. No additional drivers are required. The compact design allows for easy integration into existing structures. Ideal for integrating proven PCI components into current systems.
Interface: PCI Express to 32-bit PCI
PCIe version: 1.1
PCI bridge: Compatible with PCI/PCI-X Bridge Revision 1.0
PCI specification: Revision 3.0
Data rate: 2.5 Gb/s (PCIe x1)
Signaling: 3.3 V with 5 V I/O tolerance
Scope of delivery: 1x adapter card, 1x user manual (DE/EN)
System requirements: Free PCIe slot (x1, x4, x8, x16)


Design
Purpose	PC
Internal
Features
Data transfer rate (max)	2.5 Gbit/s
Other features
Data transfer rate	2500 Mbit/s
Packaging data
Package width	178 mm
Package depth	144 mm
Package height	40 mm
Package weight	44 g
Package volume	1000 cm³
Manual
Ports & interfaces
Host interface	PCIe
Output interface	PCIe
Technical data
Transmission rate	2.5Gb/s
Type	Interface card
Connections external	None
Connections internal	PCI
Net weight	0.044kg
Weight	0.102kg
Packaging volume	0.0010m³
Height packaging	0.040m
Interface	PCI to PCIe adapter
Length packaging	0.144m
Slot	PCIe
Width packaging	0.178m
Low Profile
Technical details
Compliance certificates	RoHS
Weight & dimensions
Depth	1.02 mm
Weight	44 g

---
