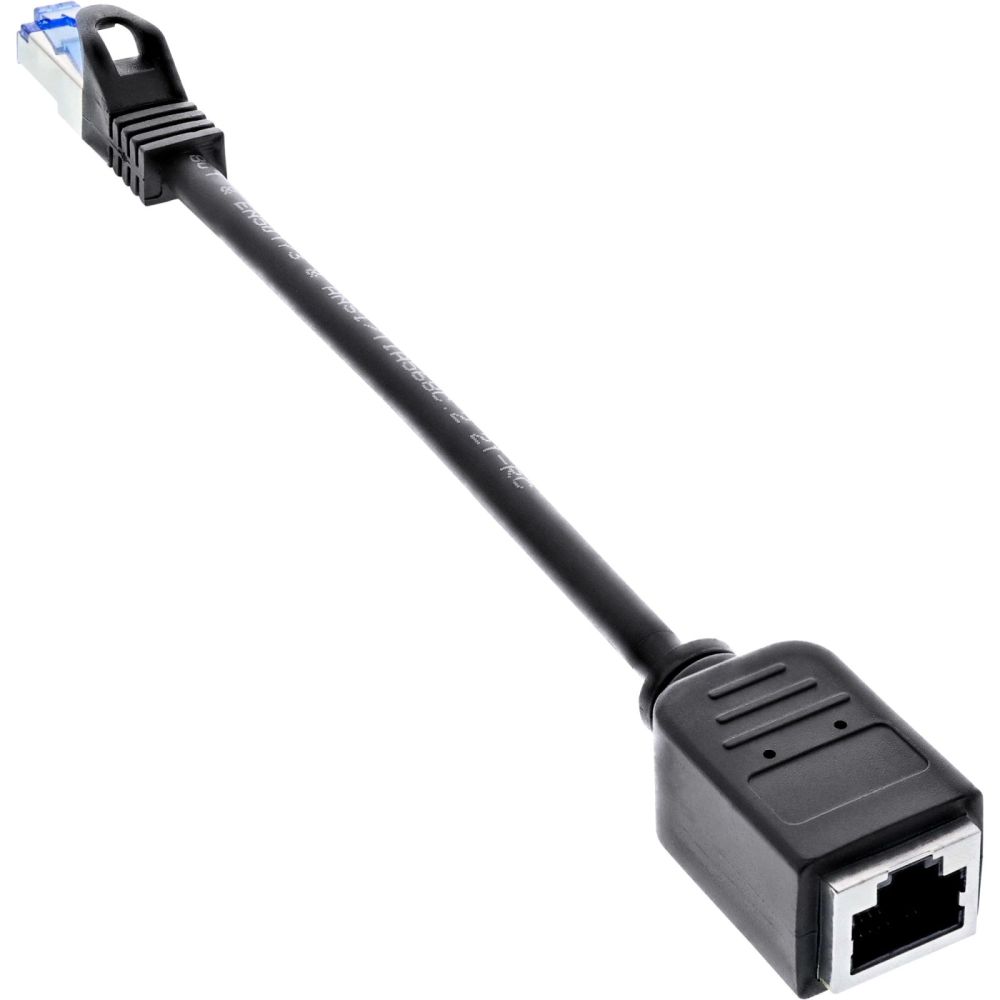

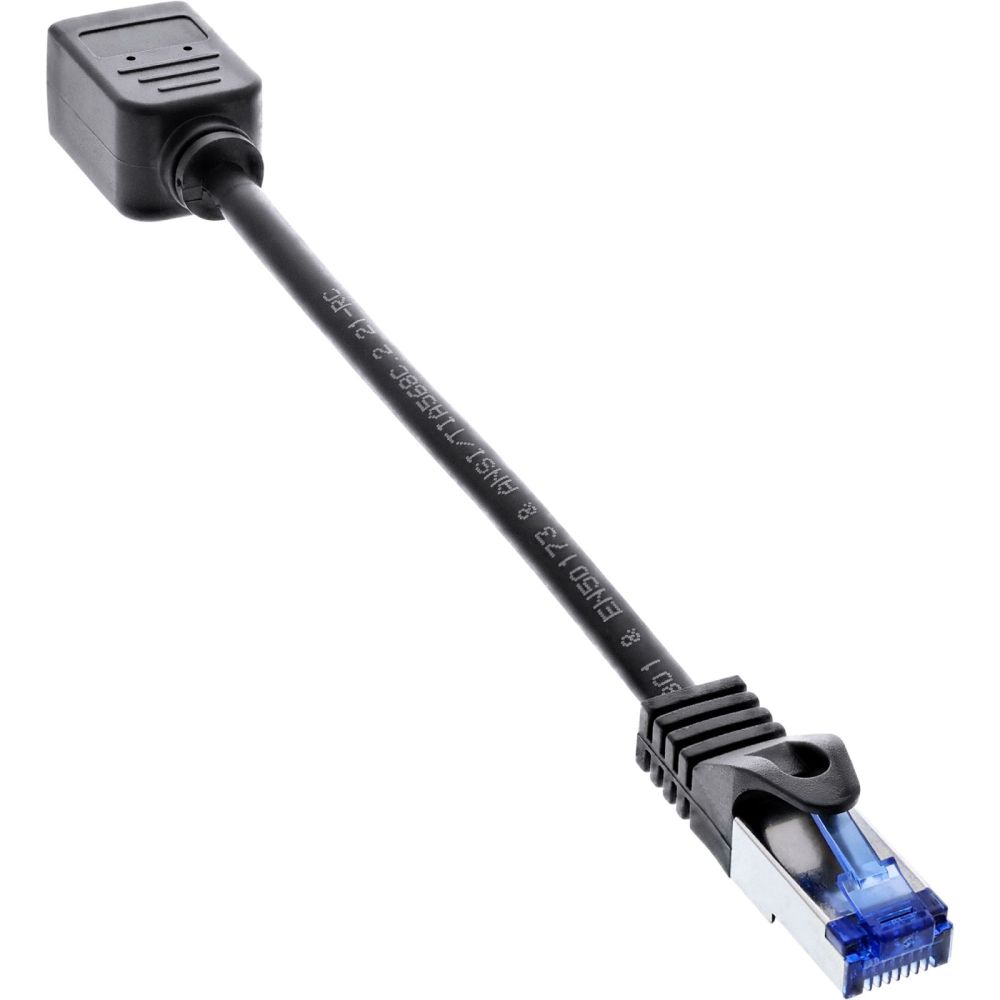

InLine® patch cable extension, RJ45 protector, S/FTP (PiMf), Cat.6A, 0.2m content_copy

Relieve the RJ45 socket and extend the connection by a short lengthProtect the device socket: As a short protector, the extension absorbs tensile forces.
Compact 0.2 m extension: Fits in tight installation spaces and at the workplace.
Low-interference transmission: S/FTP (PiMf) shielding reduces external interference.
High network performance up to 10 Gb/s: Cat.6A cabling delivers reliably fast data rates.
Plug-and-play without adapter: RJ45 plug/socket with 1:1 pinout for direct pass-through.
This short RJ45 extension acts as a protector for network ports and extends the connection by 0.2 m. This relieves the RJ45 socket on the end device from mechanical stress caused by tension or frequent plugging/unplugging, while transmissions up to 10 Gb/s are supported in Cat.6A environments. The S/FTP (PiMf) shielding and copper conductors reduce interference. The halogen-free jacket (LSZH) increases indoor safety.
It proves itself in professional IT environments, in on-site installations, and in service deployments as a wear buffer during frequent patching. In racks, on switches, patch panels, and notebooks, the short extension facilitates cable management and protects ports in existing infrastructures of companies and public institutions.
Connection: RJ45 plug to RJ45 socket
Length: 0.2 m
Standard: Cat.6A
Shielding: S/FTP (PiMf)
Pinout: 1:1
Data rate: up to 10 Gb/s
Conductor material: copper
Wire gauge: AWG 27
Jacket: halogen-free (LSZH)
Color: black
Signal: network

Features
Product colour	Black
Cable length	0.2 m
Cable standard	Cat6a
Cable shielding	S/FTP (S-STP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector 1 gender	Male
Connector 2 gender	Female
Jacket material	Low smoke zero halogen (LSZH)
Conductor material	Copper
Ethernet interface type	10 Gigabit Ethernet
AWG wire size	27
Data transfer rate	10000 Mbit/s
Plug and Play
Other features
Dimensions (WxDxH)	20 x 200 x 18 mm
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	175 mm
Package depth	240 mm
Package height	18 mm
Package weight	35 g
Package volume	200 cm³
Technical data
Height packaging	0.018m
Width packaging	0.175m
Article width	2.00cm
Side B	RJ45 female
Sheath	Halogen-free (LSZH)
Max. supported data transfer rate	10Gb/s
Diameter	AWG 27
Conductor material	CU (copper)
Article length	20.00cm
Length packaging	0.240m
Wire pairs used for power transmission	All
Weight	0.035kg
Patch cable category	Cat.6A
Net weight	0.027kg
Signal	Network
Length	0.20m
Outer diameter	5.8mm
Max. supported power	90W
Shielding	S/FTP (PiMf)
Type	Cat.6A
Article height	1.80cm
Data transmission rate	10Gb/s
Side A	RJ45 plug straight
Max. supported PoE standard	802.3bt
Design	Round cable
Packaging volume	0.0002m³
Colour	Black
Weight & dimensions
Width	20 mm
Depth	200 mm
Height	18 mm
Weight	27 g

---
