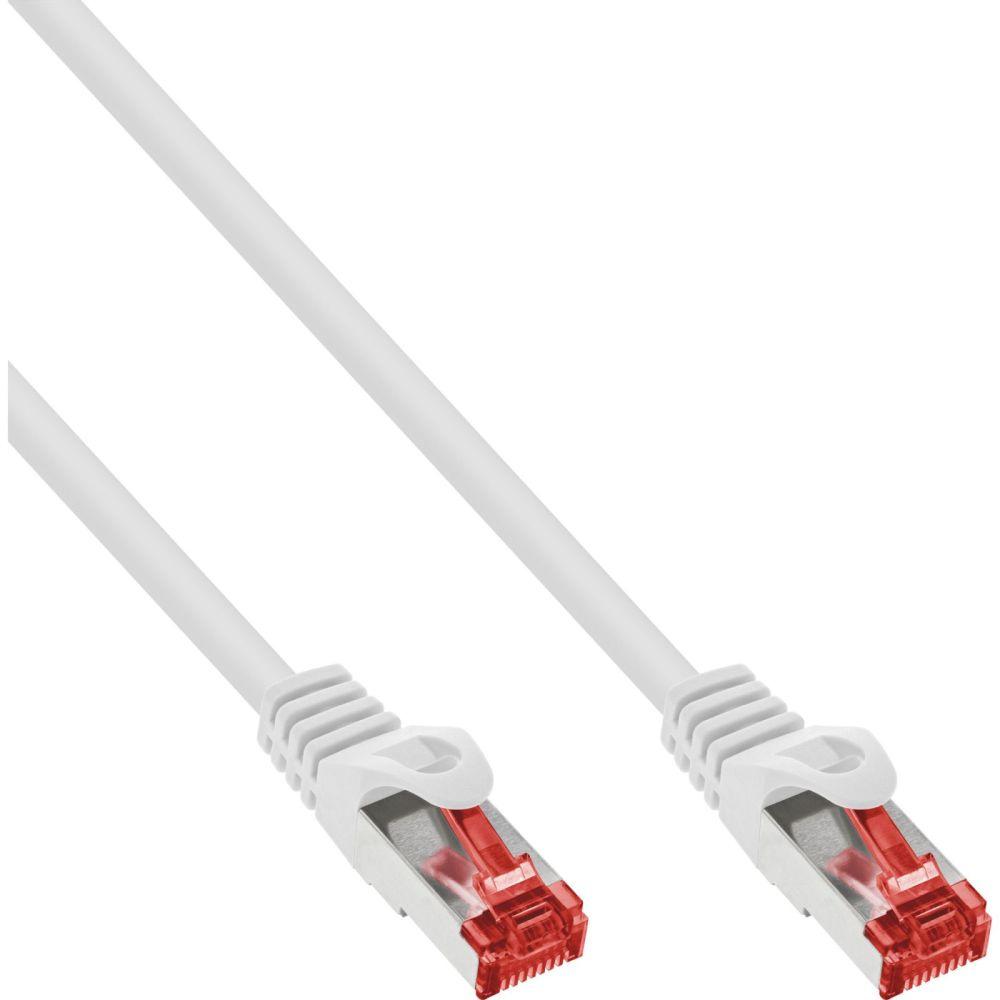

InLine® Patch cable, S/FTP (PiMf), Cat.6, 250MHz, PVC, copper, white, 50m content_copy

Secure Gigabit connections: Supports 1 Gb/s transfers with Cat.6 standard and 250 MHz – ideal for networks, streaming, and gaming.
Optimal interference protection: S/FTP shielding with paired metal foil (PiMf) and additional braided shielding provides reliable protection against crosstalk and external influences.
Durable quality: High-quality AWG27 solid copper strands and molded kink protection ensure reliable and durable cabling.
Easy identification: Colored RJ45 connectors with printed cable length allow for quick assignment during installation and maintenance.
Flexible use: The durable PVC jacket allows for easy installation in cable ducts, patch panels, or server racks.
The InLine® patch cable with Cat.6 standard and high-quality S/FTP shielding (PiMf) offers reliable high-speed networks up to 1Gb/s at 250MHz. The paired shielding of the wires and the additional overall shielding effectively reduce interference and crosstalk. The use of robust AWG27 solid copper strands and a flexible PVC jacket makes the cable ideal for installation in offices, data centers, and smart home environments. The molded kink protection and color-coded RJ45 connector with length marking facilitate installation and increase durability. Whether streaming, gaming, or professional network installations: With InLine®, you are optimally connected.
2x RJ45 connectors, molded
Category: Cat.6, 250MHz
Shielding: S/FTP (PiMf) - Paired in metal foil, overall shield
Conductor material: Solid copper (AWG27)
Sheath material: PVC
Assignment: 1:1 according to EIA/TIA 568B
Length marking on the connector
POS-compatible packaging with EAN code

Certificates
Certification	EIA/TIA 568B
Features
Product colour	White
Cable length	50 m
Cable standard	Cat6
Cable shielding	S/FTP (S-STP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector 1 gender	Male
Connector 2 gender	Male
Connector contacts plating	Nickel
Jacket material	Polyvinyl chloride (PVC)
Conductor type	Solid
Conductor material	Copper
Ethernet interface type	Gigabit Ethernet
AWG wire size	27
Data transfer rate	1000 Mbit/s
Frequency	250 MHz
Other features
Dimensions (WxDxH)	12 x 50000 x 15 mm
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	300 mm
Package depth	300 mm
Package height	80 mm
Package weight	1.5 kg
Package volume	7200 cm³
Package type	Polybag
Technical data
Packing	Retail
Outer diameter	6.1mm
Max. supported PoE standard	802.3bt
Colour	White
Side A	RJ45 plug straight
Wire pairs used for power transmission	The specific method used is determined by the PSE (Power Sourcing Equipment)
Weight	1.498kg
Side B	RJ45 plug straight
Max. supported data transfer rate	1Gb/s
Signal	Network
Packaging volume	0.0072m³
Net weight	1495.000kg
Length	50m
Type	Cat.6
Data transmission rate	1Gb/s
Max. supported power	60W
Design	Round cable
NVP value	76%
Patch cable category	Cat.6
Operation temperature	-10 to +60°C
Article width	1.20cm
Shielding	S/FTP (PiMf)
Height packaging	0.080m
Length packaging	0.300m
Width packaging	0.300m
Storage temperature	-20 to +70°C
Conductor material	CU (copper)
Article length	5000.00cm
Sheath	PVC
Assignment	1:1
Article height	1.50cm
Diameter	AWG 27
PoE/PoE+/PoE++
UL
Weight & dimensions
Width	12 mm
Depth	50000 mm
Height	15 mm
Weight	1495 kg

---
