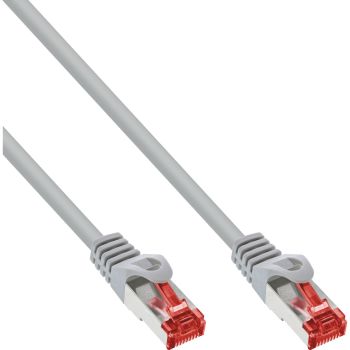

INLINE patch cable Cat.6 S/FTP (PiMf) grey 30m content_copy

Secure Gigabit connections: Supports 1 Gb/s transfers with Cat.6 standard and 250 MHz – ideal for networks, streaming, and gaming.
Optimal interference protection: S/FTP shielding with paired metal foil (PiMf) and additional braided shielding provides reliable protection against crosstalk and external influences.
Durable quality: High-quality AWG27 solid copper strands and molded kink protection ensure reliable and durable cabling.
Easy identification: Colored RJ45 connectors with printed cable length allow for quick assignment during installation and maintenance.
Flexible use: The durable PVC jacket allows for easy installation in cable ducts, patch panels, or server racks.
The InLine® patch cable with Cat.6 standard and high-quality S/FTP shielding (PiMf) offers reliable high-speed networks up to 1Gb/s at 250MHz. The paired shielding of the wires and the additional overall shielding effectively reduce interference and crosstalk. The use of robust AWG27 solid copper strands and a flexible PVC jacket makes the cable ideal for installation in offices, data centers, and smart home environments. The molded kink protection and color-coded RJ45 connector with length marking facilitate installation and increase durability. Whether streaming, gaming, or professional network installations: With InLine®, you are optimally connected.
2x RJ45 connectors, molded
Category: Cat.6, 250MHz
Shielding: S/FTP (PiMf) - Paired in metal foil, overall shield
Conductor material: Solid copper (AWG27)
Sheath material: PVC
Assignment: 1:1 according to EIA/TIA 568B
Length marking on the connector
POS-compatible packaging with EAN code

Features
Product colour	Grey
Cable length	30 m
Cable standard	Cat6
Cable shielding	S/FTP (S-STP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector 1 gender	Male
Connector 2 gender	Male
Jacket material	Polyvinyl chloride (PVC)
Conductor material	Copper
AWG wire size	27
Other features
Dimensions (WxDxH)	12 x 30000 x 15 mm
Packaging data
Package width	260 mm
Package depth	325 mm
Package height	55 mm
Package weight	946 g
Package volume	4600 cm³
Technical data
Type	Cat.6
Length packaging	0.325m
Width packaging	0.260m
Storage temperature	-20 to +70°C
Weight	0.946kg
Side A	RJ45 plug straight
Wire pairs used for power transmission	The specific method used is determined by the PSE (Power Sourcing Equipment)
Outer diameter	6.1mm
Max. supported PoE standard	802.3bt
Height packaging	0.055m
Data transmission rate	1Gb/s
Max. supported power	60W
Design	Round cable
Packaging volume	0.0046m³
Net weight	0.920kg
Length	30m
Operation temperature	-10 to +60°C
Article width	1.20cm
Shielding	S/FTP (PiMf)
Conductor material	CU (copper)
Article length	3000.00cm
Sheath	PVC
Patch cable category	Cat.6
Colour	Grey
Side B	RJ45 plug straight
Max. supported data transfer rate	1Gb/s
Signal	Network
Assignment	1:1
Article height	1.50cm
Diameter	AWG 27
NVP value	76%
PoE/PoE+/PoE++
UL
Weight & dimensions
Width	12 mm
Depth	30000 mm
Height	15 mm
Weight	920 g

---
