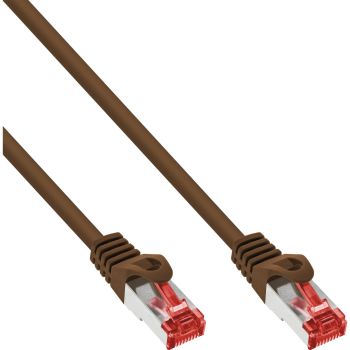

InLine® Patch cable, S/FTP (PiMf), Cat.6, 250MHz, PVC, copper, brown, 0.25m
|
1,28 EUR |
|||||||||||
|
( 1,52 EUR incl. VAT ) ≈ £1.07 | ≈ $1.43 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 22196851 | ||||||||||
| Mfg Part No: | 76422K | ||||||||||
| UPC/EAN: | 4043718100279 | ||||||||||
| Weight: | 0.02 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Inline 76422K:
Optimal interference protection: S/FTP shielding with paired metal foil (PiMf) and additional braided shielding provides reliable protection against crosstalk and external influences.
Durable quality: High-quality AWG27 solid copper strands and molded kink protection ensure reliable and durable cabling.
Easy identification: Colored RJ45 connectors with printed cable length allow for quick assignment during installation and maintenance.
Flexible use: The durable PVC jacket allows for easy installation in cable ducts, patch panels, or server racks.
The InLine® patch cable with Cat.6 standard and high-quality S/FTP shielding (PiMf) offers reliable high-speed networks up to 1Gb/s at 250MHz. The paired shielding of the wires and the additional overall shielding effectively reduce interference and crosstalk. The use of robust AWG27 solid copper strands and a flexible PVC jacket makes the cable ideal for installation in offices, data centers, and smart home environments. The molded kink protection and color-coded RJ45 connector with length marking facilitate installation and increase durability. Whether streaming, gaming, or professional network installations: With InLine®, you are optimally connected.
2x RJ45 connectors, molded
Category: Cat.6, 250MHz
Shielding: S/FTP (PiMf) - Paired in metal foil, overall shield
Conductor material: Solid copper (AWG27)
Sheath material: PVC
Assignment: 1:1 according to EIA/TIA 568B
Length marking on the connector
POS-compatible packaging with EAN code
| Certificates | |
| Certification | EIA/TIA 568B |
| Features | |
| Product colour | Brown |
| Cable length | 0.25 m |
| Cable standard | Cat6 |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Jacket material | Polyvinyl chloride (PVC) |
| Conductor type | Solid |
| Conductor material | Copper |
| Ethernet interface type | Gigabit Ethernet |
| AWG wire size | 27 |
| Data transfer rate | 1000 Mbit/s |
| Frequency | 250 MHz |
| Other features | |
| Dimensions (WxDxH) | 12 x 250 x 15 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 100 mm |
| Package depth | 140 mm |
| Package height | 13 mm |
| Package weight | 20 g |
| Package volume | 200 cm³ |
| Package type | Polybag |
| Technical data | |
| NVP value | 76% |
| Side A | RJ45 plug straight |
| Assignment | 1:1 |
| Operation temperature | -10 to +60°C |
| Article width | 1.20cm |
| Diameter | AWG 27 |
| Packaging volume | 0.0002m³ |
| Article length | 25.00cm |
| Weight | 0.020kg |
| Data transmission rate | 1Gb/s |
| Max. supported PoE standard | 802.3bt |
| Storage temperature | -20 to +70°C |
| Height packaging | 0.013m |
| Side B | RJ45 plug straight |
| Net weight | 0.017kg |
| Signal | Network |
| Colour | Brown |
| Patch cable category | Cat.6 |
| Conductor material | CU (copper) |
| Article height | 1.50cm |
| Sheath | PVC |
| Width packaging | 0.100m |
| Max. supported power | 60W |
| Shielding | S/FTP (PiMf) |
| Type | Cat.6 |
| Length packaging | 0.140m |
| Max. supported data transfer rate | 1Gb/s |
| Design | Round cable |
| Packing | Retail |
| Outer diameter | 6.1mm |
| Wire pairs used for power transmission | The specific method used is determined by the PSE (Power Sourcing Equipment) |
| UL | |
| PoE/PoE+/PoE++ | |
| Weight & dimensions | |
| Width | 12 mm |
| Depth | 250 mm |
| Height | 15 mm |
| Weight | 17 g |
