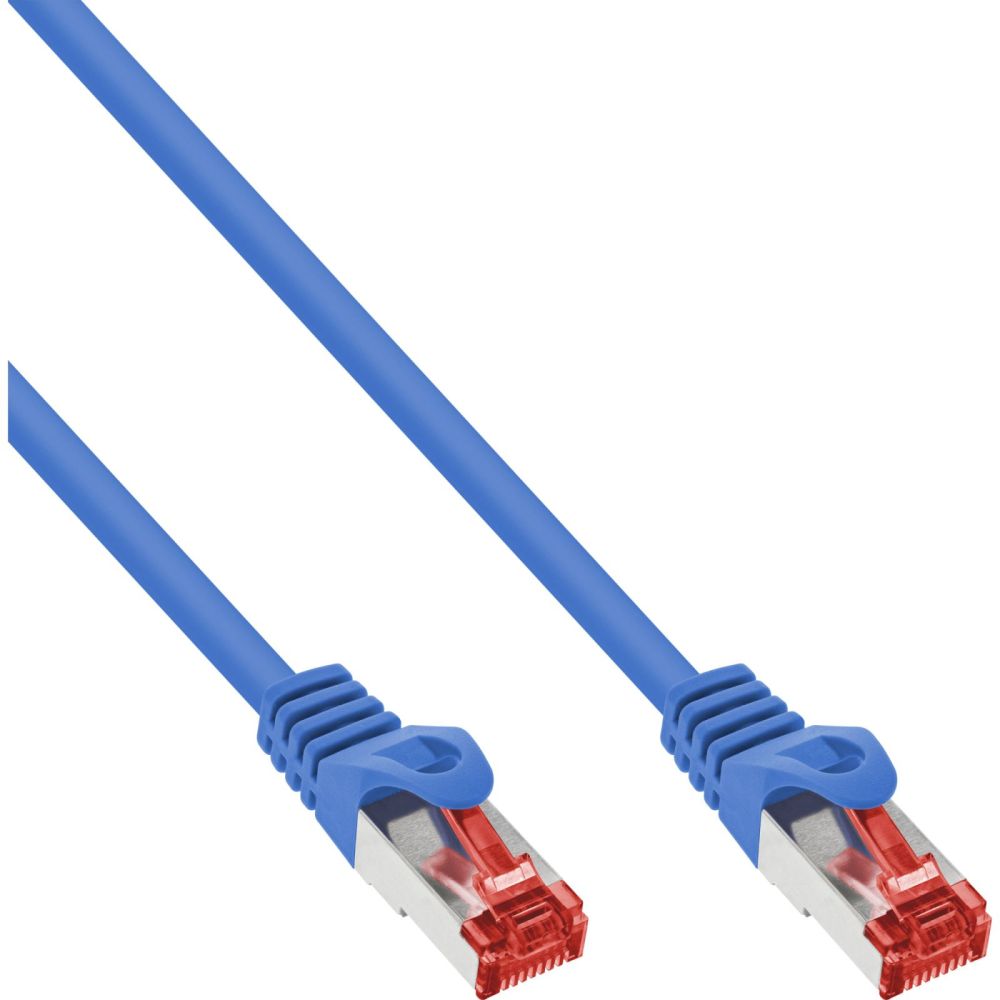

InLine® Patch cable, S/FTP (PiMf), Cat.6, 250MHz, PVC, copper, blue, 20m content_copy

Secure Gigabit connections: Supports 1 Gb/s transfers with Cat.6 standard and 250 MHz – ideal for networks, streaming, and gaming.
Optimal interference protection: S/FTP shielding with paired metal foil (PiMf) and additional braided shielding provides reliable protection against crosstalk and external influences.
Durable quality: High-quality AWG27 solid copper strands and molded kink protection ensure reliable and durable cabling.
Easy identification: Colored RJ45 connectors with printed cable length allow for quick assignment during installation and maintenance.
Flexible use: The durable PVC jacket allows for easy installation in cable ducts, patch panels, or server racks.
The InLine® patch cable with Cat.6 standard and high-quality S/FTP shielding (PiMf) offers reliable high-speed networks up to 1Gb/s at 250MHz. The paired shielding of the wires and the additional overall shielding effectively reduce interference and crosstalk. The use of robust AWG27 solid copper strands and a flexible PVC jacket makes the cable ideal for installation in offices, data centers, and smart home environments. The molded kink protection and color-coded RJ45 connector with length marking facilitate installation and increase durability. Whether streaming, gaming, or professional network installations: With InLine®, you are optimally connected.
2x RJ45 connectors, molded
Category: Cat.6, 250MHz
Shielding: S/FTP (PiMf) - Paired in metal foil, overall shield
Conductor material: Solid copper (AWG27)
Sheath material: PVC
Assignment: 1:1 according to EIA/TIA 568B
Length marking on the connector

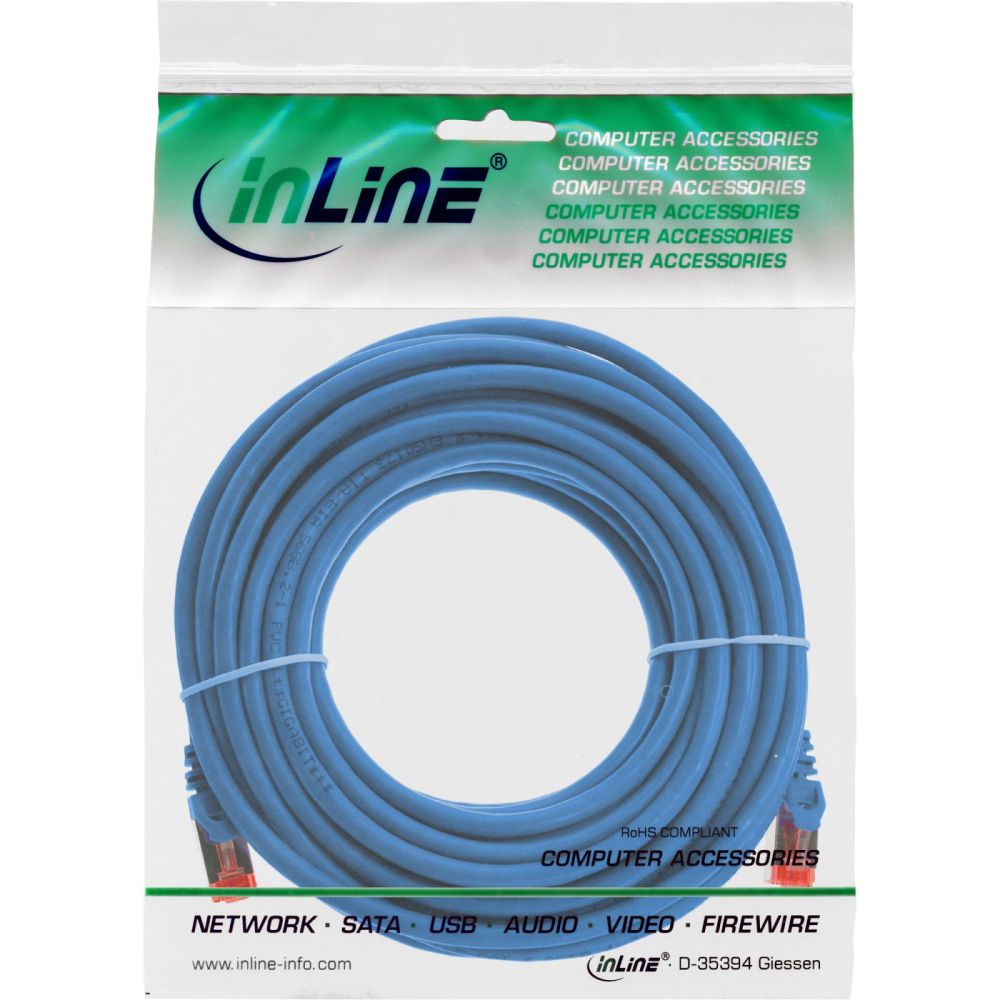

POS-compatible packaging with EAN code

Features
Product colour	Blue
Cable length	20 m
Cable standard	Cat6
Cable shielding	S/FTP (S-STP)
Connector 1 gender	Male
Connector 2 gender	Male
Jacket material	Polyvinyl chloride (PVC)
Conductor material	Copper
AWG wire size	27
Other features
Dimensions (WxDxH)	12 x 20000 x 15 mm
Packaging data
Package width	260 mm
Package depth	325 mm
Package height	46 mm
Package weight	620 g
Package volume	3900 cm³
Technical data
Packaging volume	0.0039m³
Article length	2000.00cm
Length	20m
Weight	0.620kg
Patch cable category	Cat.6
NVP value	76%
Side B	RJ45 plug straight
Wire pairs used for power transmission	The specific method used is determined by the PSE (Power Sourcing Equipment)
Signal	Network
Packing	Retail
Data transmission rate	1Gb/s
Max. supported PoE standard	802.3bt
Design	Round cable
Operation temperature	-10 to +60°C
Width packaging	0.260m
Shielding	S/FTP (PiMf)
Conductor material	CU (copper)
Article height	1.50cm
Sheath	PVC
Colour	Blue
Side A	RJ45 plug straight
Net weight	0.617kg
Type	Cat.6
Length packaging	0.325m
Max. supported power	60W
Storage temperature	-20 to +70°C
Height packaging	0.046m
Outer diameter	6.1mm
Max. supported data transfer rate	1Gb/s
Assignment	1:1
Article width	1.20cm
Diameter	AWG 27
UL
PoE/PoE+/PoE++
Weight & dimensions
Width	12 mm
Depth	20000 mm
Height	15 mm
Weight	617 g

---
