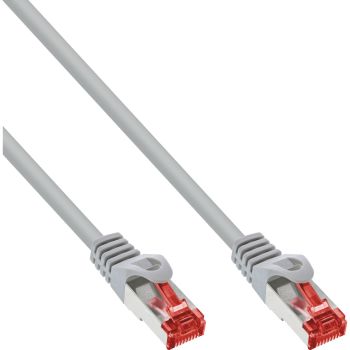

INLINE patch cable Cat.6 S/FTP (PiMf) grey 20m content_copy

Secure Gigabit connections: Supports 1 Gb/s transfers with Cat.6 standard and 250 MHz – ideal for networks, streaming, and gaming.
Optimal interference protection: S/FTP shielding with paired metal foil (PiMf) and additional braided shielding provides reliable protection against crosstalk and external influences.
Durable quality: High-quality AWG27 solid copper strands and molded kink protection ensure reliable and durable cabling.
Easy identification: Colored RJ45 connectors with printed cable length allow for quick assignment during installation and maintenance.
Flexible use: The durable PVC jacket allows for easy installation in cable ducts, patch panels, or server racks.
The InLine® patch cable with Cat.6 standard and high-quality S/FTP shielding (PiMf) offers reliable high-speed networks up to 1Gb/s at 250MHz. The paired shielding of the wires and the additional overall shielding effectively reduce interference and crosstalk. The use of robust AWG27 solid copper strands and a flexible PVC jacket makes the cable ideal for installation in offices, data centers, and smart home environments. The molded kink protection and color-coded RJ45 connector with length marking facilitate installation and increase durability. Whether streaming, gaming, or professional network installations: With InLine®, you are optimally connected.
2x RJ45 connectors, molded
Category: Cat.6, 250MHz
Shielding: S/FTP (PiMf) - Paired in metal foil, overall shield
Conductor material: Solid copper (AWG27)
Sheath material: PVC
Assignment: 1:1 according to EIA/TIA 568B
Length marking on the connector
POS-compatible packaging with EAN code

Features
Product colour	Grey
Cable length	20 m
Cable standard	Cat6
Cable shielding	S/FTP (S-STP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector 1 gender	Male
Connector 2 gender	Male
Jacket material	Polyvinyl chloride (PVC)
Conductor material	Copper
AWG wire size	27
Other features
Dimensions (WxDxH)	12 x 20000 x 15 mm
Packaging data
Package width	260 mm
Package depth	325 mm
Package height	46 mm
Package weight	607 g
Package volume	3900 cm³
Technical data
NVP value	76%
Side A	RJ45 plug straight
Assignment	1:1
Article width	1.20cm
Diameter	AWG 27
Data transmission rate	1Gb/s
Max. supported PoE standard	802.3bt
Design	Round cable
Colour	Grey
Side B	RJ45 plug straight
Wire pairs used for power transmission	The specific method used is determined by the PSE (Power Sourcing Equipment)
Signal	Network
Conductor material	CU (copper)
Article height	1.50cm
Sheath	PVC
Type	Cat.6
Length packaging	0.325m
Max. supported power	60W
Storage temperature	-20 to +70°C
Packaging volume	0.0039m³
Article length	2000.00cm
Length	20m
Weight	0.607kg
Patch cable category	Cat.6
Operation temperature	-10 to +60°C
Width packaging	0.260m
Shielding	S/FTP (PiMf)
Height packaging	0.046m
Outer diameter	6.1mm
Max. supported data transfer rate	1Gb/s
Net weight	0.604kg
UL
PoE/PoE+/PoE++
Weight & dimensions
Width	12 mm
Depth	20000 mm
Height	15 mm
Weight	604 g

---
