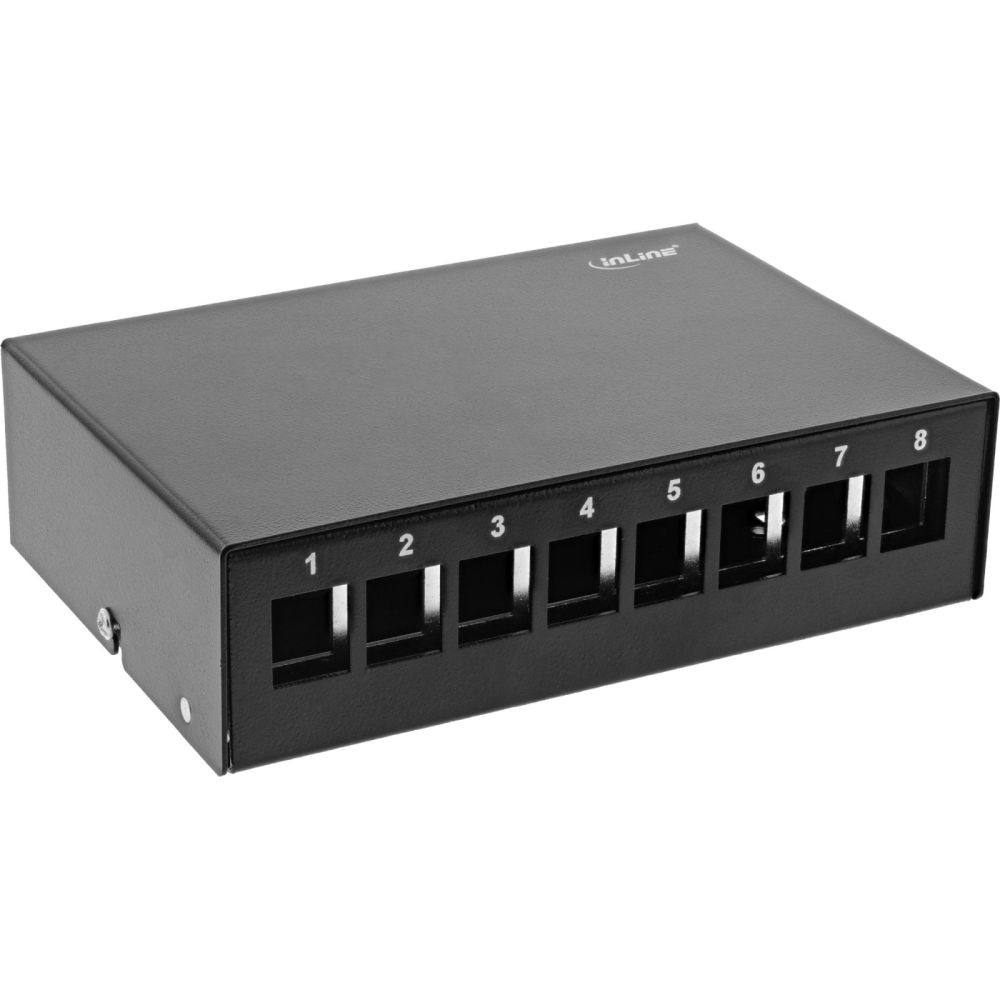

InLine® Surface patch box, 8x Keystone RJ45, metal, black RAL9005 content_copy

Surface-mounted patch panel for RJ45 keystone modules for DIN rail mountingFlexible Keystone configuration: The surface-mounted box accommodates 8 RJ45 keystone modules and can be configured to provide a clear overview of the connections.

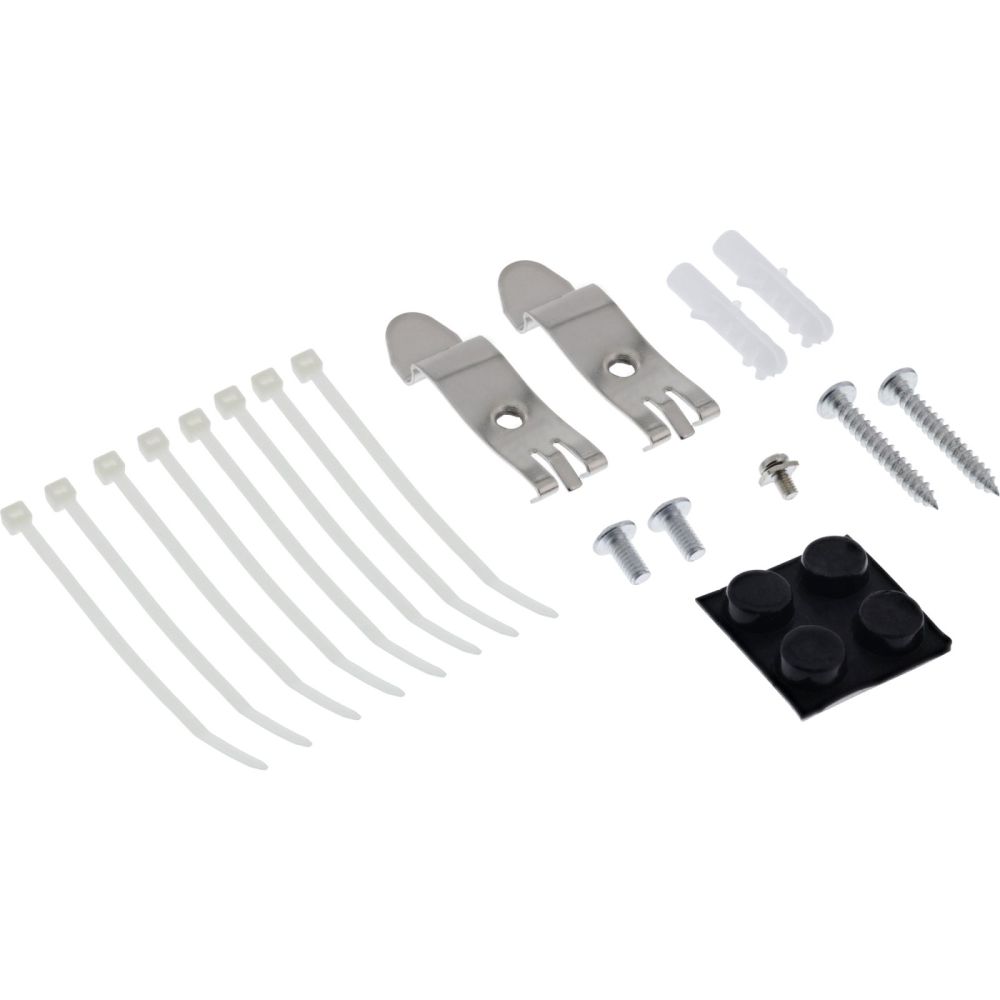

Easy DIN rail mounting: The included bracket allows mounting on a DIN rail. The patch panel box does not need to be removed for installation of the mounting bracket.

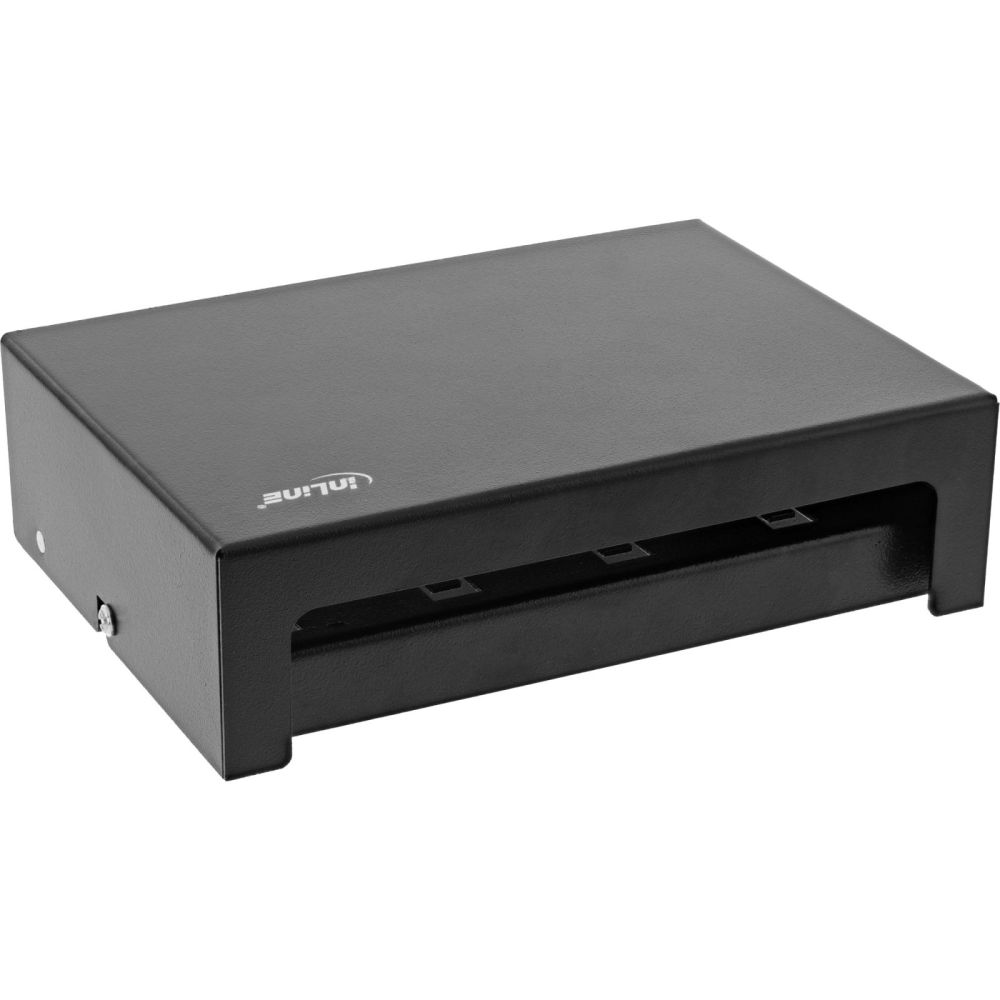

Organized cable routing: Rear cable clamps and cable tie fastening support structured routing and fixing of the connected network cables in the housing.
Robust steel housing: The housing, made of SPCC steel with plastic powder coating, is designed for permanent installations and combines a stable construction with a clear layout.

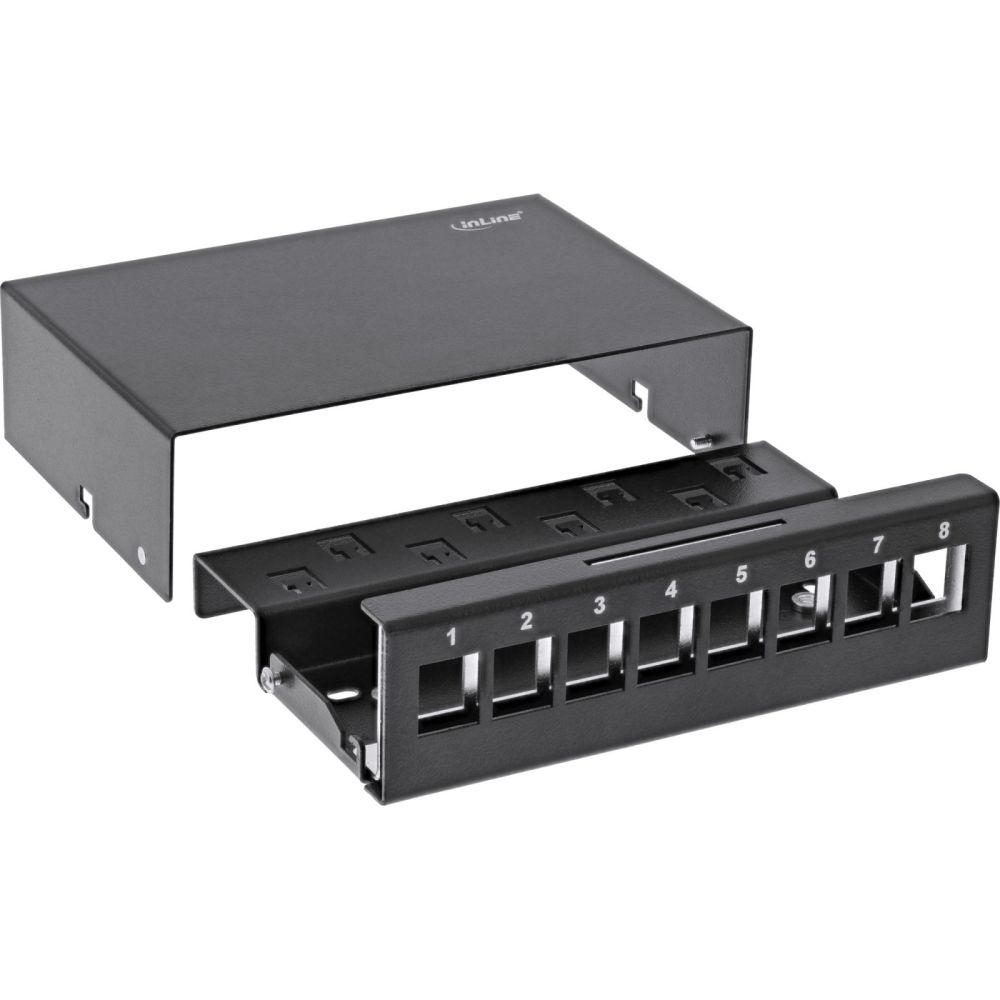

Flush module positioning: The two-stage array aligns the installed modules flush with the front panel. The standard front cutout supports the installation of RJ45 keystone modules.
The InLine patch panel is designed for the structured consolidation of multiple network connections at a single point. It can be mounted directly or integrated into electrical distribution systems. This allows for the clear and organized consolidation of connections at a central point of connection. The required RJ45 keystone modules are not included and must be purchased separately.
Protection rating: IP20
Operating/storage temperature: -40 to +70 °C
Operating/storage humidity: 10-85%
Reserved grounding wire connection screw

Design
Product colour	Black
Logistics data
Quantity per pack	1 pc(s)
Operational conditions
Operating temperature (T-T)	-40 - 70 °C
Storage temperature (T-T)	-40 - 70 °C
Packaging data
Package width	120 mm
Package depth	175 mm
Package height	52 mm
Package weight	613 g
Package volume	1100 cm³
Technical data
Length packaging	0.175m
Article length	16.00cm
Colour	Black (RAL9005)
Net weight	0.556kg
Network category	Module dependent
Packaging volume	0.0011m³
Article height	4.50cm
Type	Surface box
Width packaging	0.120m
Height packaging	0.052m
Article width	11.30cm
Weight	0.613kg
Version	Surface-mounted / top-hat rail
Mounting	Surface-mounted / top-hat rail
Number of ports	8
Shielding
Keystone SNAP-In compatible
Weight & dimensions
Dimensions (WxDxH)	113 x 160 x 45 mm
Width	113 mm
Height	45 mm
Depth	160 mm
Weight	556 g

---
