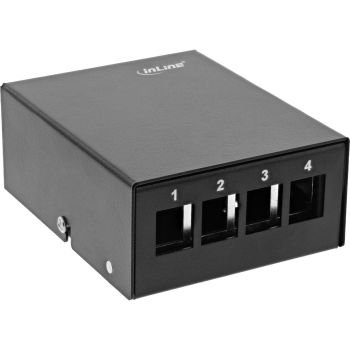

InLine® Surface patch box, 4x Keystone RJ45, metal, black RAL9005 content_copy

Surface-mounted patch panel for RJ45 keystone modules for DIN rail mountingFlexible Keystone configuration: The surface-mounted box accommodates 4 RJ45 keystone modules and can be configured to provide a clear overview of the connections.
Easy DIN rail mounting: The included bracket allows mounting on a DIN rail. The patch panel box does not need to be removed for installation of the mounting bracket.
Organized cable routing: Rear cable clamps and cable tie fastening support structured routing and fixing of the connected network cables in the housing.
Robust steel housing: The housing, made of SPCC steel with plastic powder coating, is designed for permanent installations and combines a stable construction with a clear layout.
Flush module positioning: The two-stage array aligns the installed modules flush with the front panel. The standard front cutout supports the installation of RJ45 keystone modules.
The InLine patch panel is designed for the structured consolidation of multiple network connections at a single point. It can be mounted directly or integrated into electrical distribution systems. This allows for the clear and organized consolidation of connections at a central point of connection. The required RJ45 keystone modules are not included and must be purchased separately.
Protection rating: IP20
Operating/storage temperature: -40 to +70 °C
Operating/storage humidity: 10-85%
Reserved grounding wire connection screw

Design
Product colour	Black
Material	SPCC
Mounting	DIN-rail
Cable connection	RJ-45
Network
Ports quantity	4
Packaging data
Package width	95 mm
Package depth	130 mm
Package height	55 mm
Package weight	387 g
Package volume	700 cm³
Technical data
Type	Surface box
Version	Surface-mounted / top-hat rail
Weight	0.387kg
Length packaging	0.130m
Article length	11.30cm
Colour	Black (RAL9005)
Net weight	0.341kg
Number of ports	4
Width packaging	0.095m
Height packaging	0.055m
Article width	8.80cm
Mounting	Surface-mounted / top-hat rail
Network category	Module dependent
Packaging volume	0.0007m³
Article height	4.50cm
Keystone SNAP-In compatible
Shielding
Weight & dimensions
Dimensions (WxDxH)	88 x 113 x 45 mm
Width	88 mm
Height	45 mm
Depth	113 mm
Weight	341 g

---
