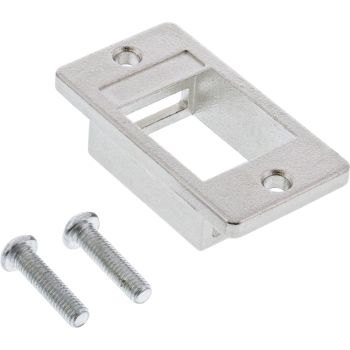

InLine® Keystone SNAP-In Module holder, single, metal, for flat surfaces
|
1,66 EUR |
|||||||||||
|
( 1,98 EUR incl. VAT ) ≈ £1.39 | ≈ $1.86 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |||||||||||
| In Stock: >100 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 22196859 | ||||||||||
| Mfg Part No: | 76205A | ||||||||||
| UPC/EAN: | 4043718282104 | ||||||||||
| Weight: | 0.014 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Inline 76205A:
Robust fastening: zinc die-cast housing for a secure hold.
Clean cable routing: 0° outlet for a straight cable run.
Flexible mounting on flat surfaces: Mounting on enclosure back panels, in cable ducts, and on wood and metal cladding.
Precise positioning during mounting: Defined cutout and drilling dimensions simplify mounting.
The 1-port module holder accepts a keystone module or an adapter via snap-in and enables clean integration of a port on flat surfaces. The robust zinc die-cast housing holds the module securely, the 0° outlet supports a straight cable run. With the specified cutout and drilling dimensions, you mount the frame quickly and precisely.
For retrofits in existing infrastructures, on-site work, or service deployments, the holder can be placed on enclosure back panels, in cable ducts, and on wood and metal cladding, and reliably integrates individual ports into professional IT environments and facilities.
Receptacle: 1x keystone module or adapter
Outlet: 0° (straight)
Material: zinc die-cast
Mounting cutout: 23 x 17.5 mm
Hole diameter: 3.1 mm
Hole spacing: 28.9 mm
Dimensions: length 35.5 mm, width 19.1 mm, height 9.8 mm
Scope of delivery: 1-port mounting frame (without modules), 2x mounting screws, pan head screw M3 x 12 mm
| Features | |
| Product colour | Silver |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package volume | 100 cm³ |
| Package width | 70 mm |
| Package depth | 120 mm |
| Package height | 10 mm |
| Package weight | 14 g |
| Technical data | |
| Network category | Module dependent |
| Article width | 2.00cm |
| PU | 1 |
| Finish | Metal, for flat surfaces |
| Type of packaging | Retail |
| Height packaging | 0.010m |
| Article height | 1.00cm |
| Packaging volume | 0.0001m³ |
| Article length | 3.50cm |
| Connection A | Universal Keystone 23x17.5mm |
| Type | Keystone |
| Connection B | Top hat rail 35mm |
| Length packaging | 0.120m |
| Width packaging | 0.070m |
| Net weight | 0.012kg |
| Weight | 0.014kg |
| Keystone SNAP-In compatible | |
| Shielding | |
| Technical details | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 20 mm |
| Depth | 35 mm |
| Height | 10 mm |
| Weight | 12 g |
Questions & answers
What is the delivery time of InLine® Keystone SNAP-In Module holder, single, metal, for flat surfaces?
The article InLine® Keystone SNAP-In Module holder, single, metal, for flat surfaces is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Inline 76205A to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you InLine® Keystone SNAP-In Module holder, single, metal, for flat surfaces always at the best possible price. We can give you a discount of 2% on InLine® Keystone SNAP-In Module holder, single, metal, for flat surfaces if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 50 pieces of InLine® Keystone SNAP-In Module holder, single, metal, for flat surfaces we can offer you a price of 1,60 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
