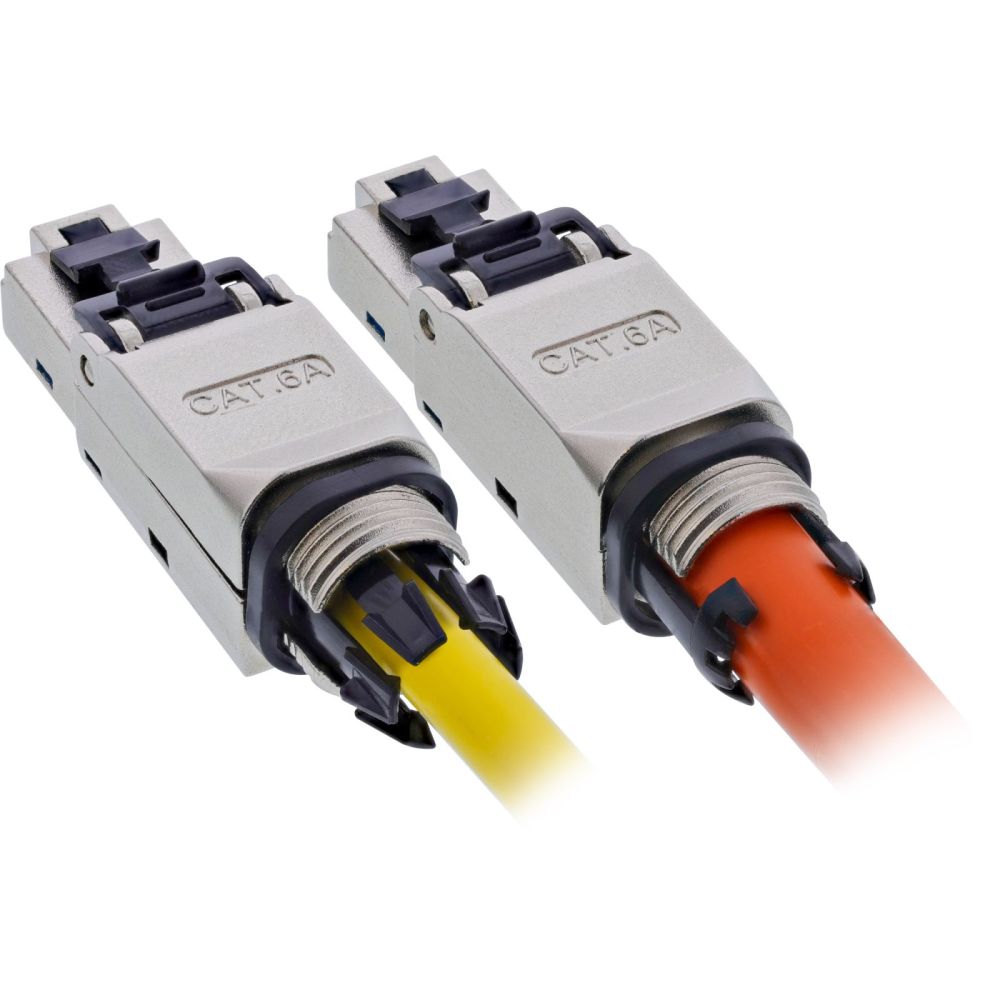

InLine® RJ45 plug Cat.6A 500MHz, field-wireable, shielded, 10Gb/s content_copy

Quick installation without crimping pliers: With LSA terminals for simple and permanent connection - ideal for connecting directly on site.
Compatible with common cables: Suitable for Cat.5e, Cat.6, Cat.6A and Cat.7 - for rigid and flexible conductors from AWG26 to AWG22.
High network performance up to 10 Gb/s: Supports Gb/s connections for modern networks and demanding applications.
Interference-free operation thanks to full metal housing: The shielding provides reliable protection against electromagnetic interference.
Suitable for PoE/PoE+/PoE++: Power supply via the network cable - ideal for IP cameras, access points and more.
The InLine® RJ45 plug Cat.6A 500MHz is ideal for fast and reliable assembly in network installations. Thanks to its field-terminable design, it is ideal for connecting installation cables or patch cables with rigid or flexible wires - without the need for crimping pliers.

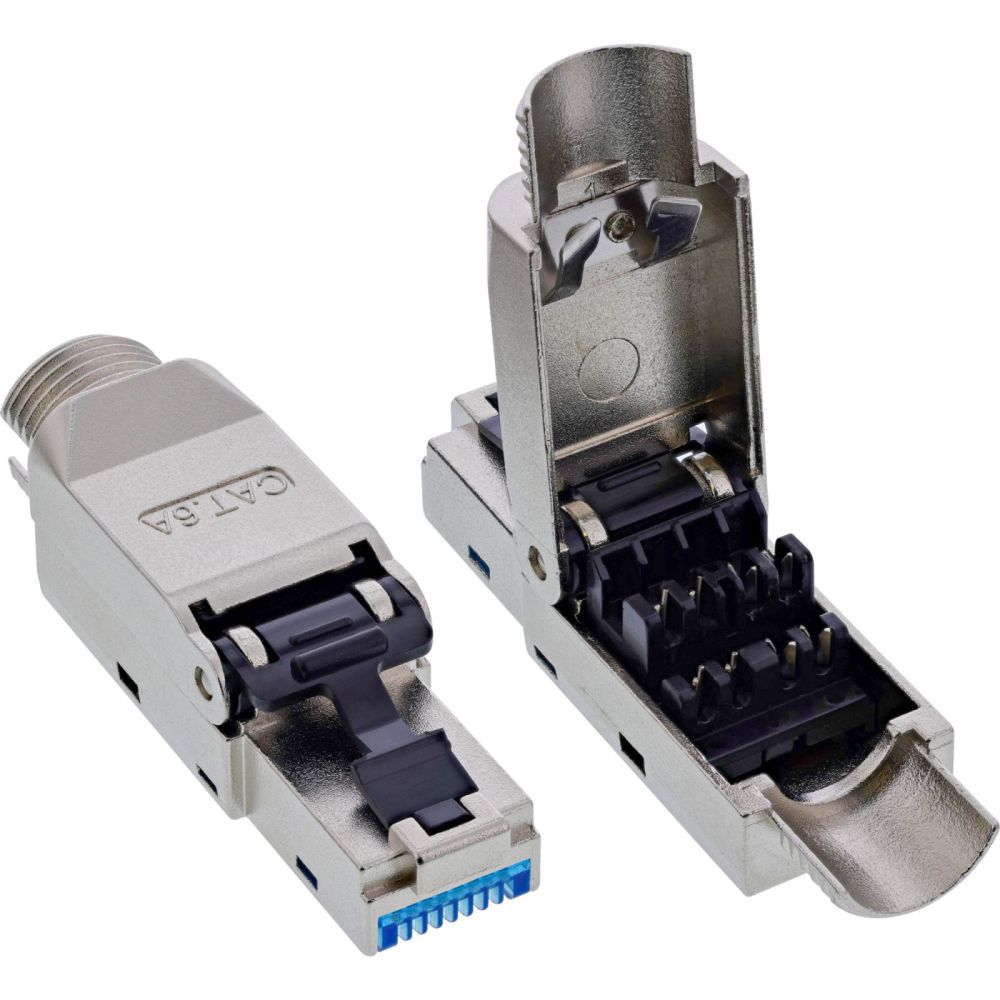

The connection is made using tried-and-tested LSA terminals, which are commonly used in professional installations. The robust die-cast zinc housing ensures optimum shielding and mechanical protection. Transmission rates of up to 10 Gb/s are supported - perfect for data-intensive applications such as streaming, VoIP or server connections.The plug is compatible with Cat.5e, Cat.6, Cat.6A and Cat.7/7A cables. It supports modern Power-over-Ethernet standards (PoE, PoE+, PoE++) and thus enables the simultaneous power and data supply of network-compatible devices - particularly practical in building cabling or for smart home networks.
Thanks to its robust design, easy handling and versatility, the InLine® plug is suitable for both private users and professional IT applications.

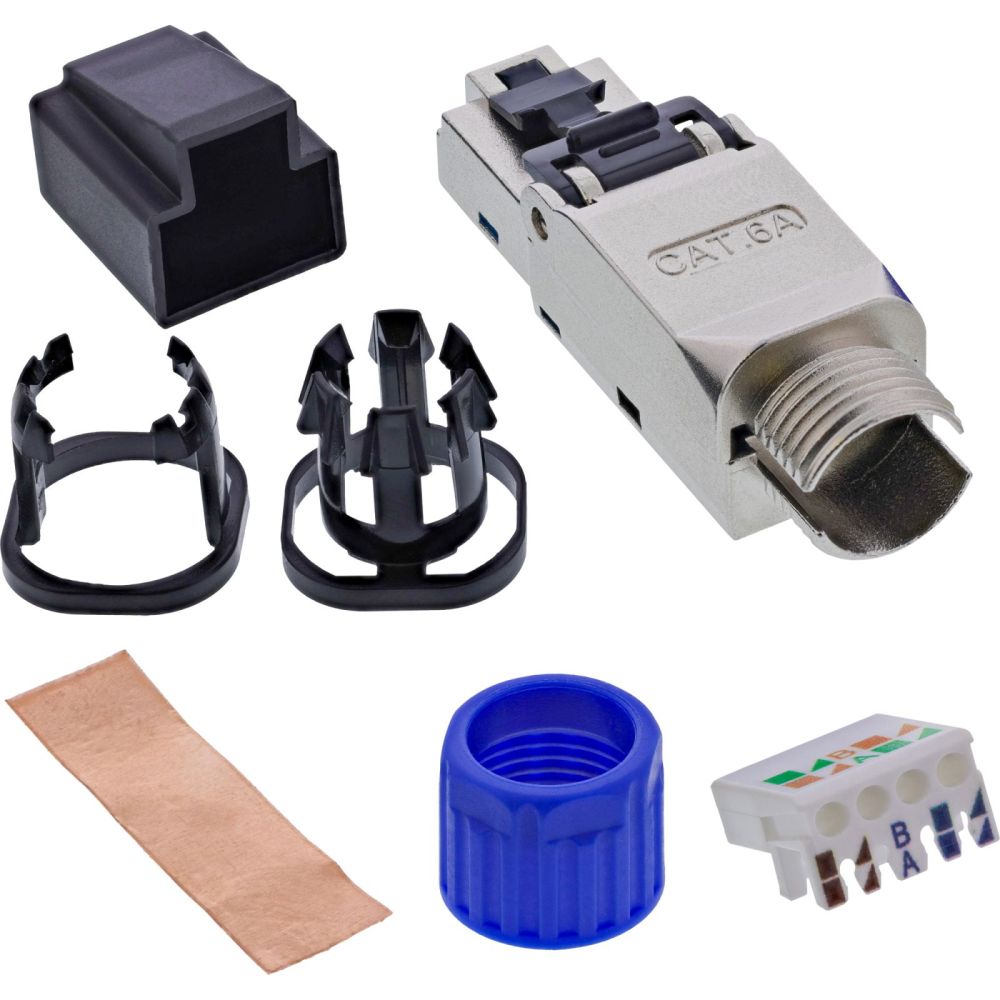

Cable kink protection made from plastic
For solid wire AWG26/1 to AWG22/1 (0.4 mm to 0.65 mm)
For flexible wires AWG26/7 to AWG22/7 (1.1 mm to 1.6 mm)
For cable outer diameters from 6 mm to 8.5 mm
Lifetime > 750 mating cycles

Features
Product colour	Zinc
Connector contacts plating	Gold
AWG wire size	26/1-22/1, 26/7 - 22/7
Networking standards	IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	-10 - 60 °C
Storage temperature (T-T)	-40 - 70 °C

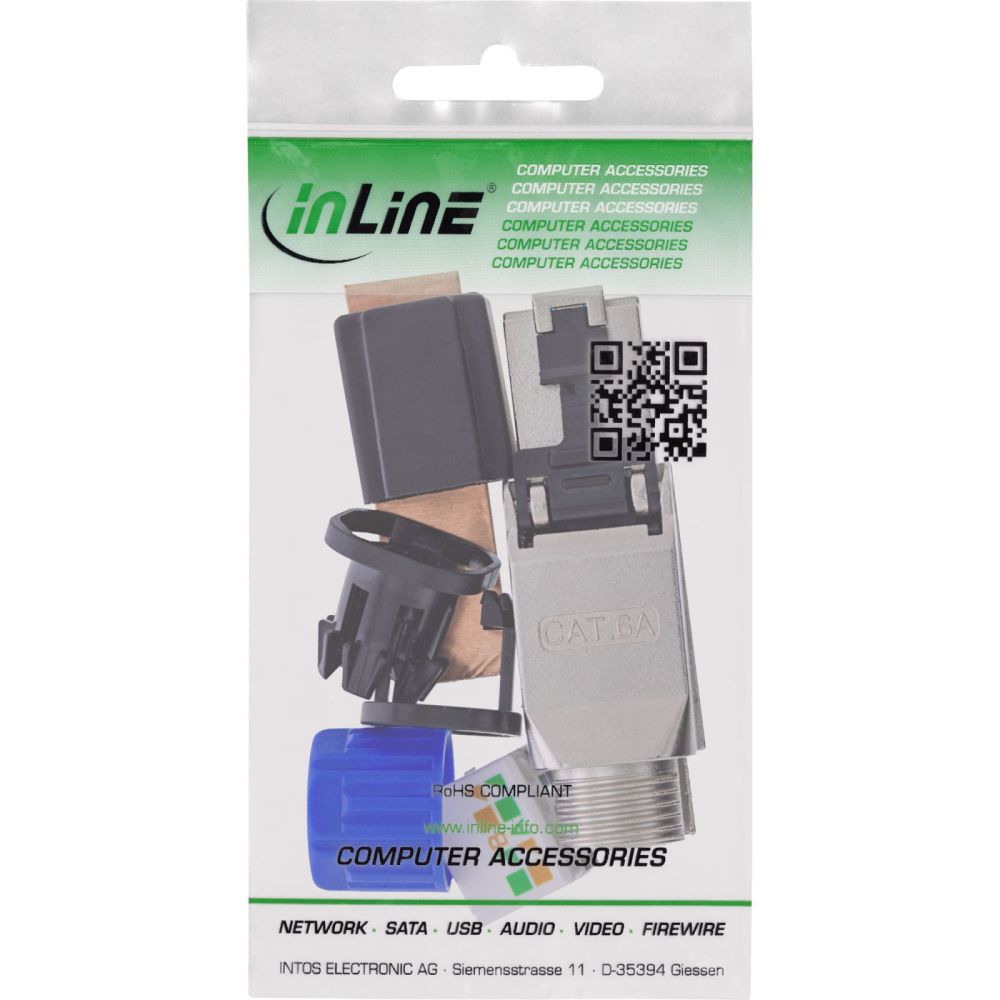

Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package volume	200 cm³
Package type	Polybag
Package width	70 mm
Package depth	135 mm
Package height	16 mm
Package weight	18 g
Technical data
Connection A	RJ45 plug
Net weight	0.015kg
Packaging volume	0.0002m³
Max. supported PoE standard	802.3bt
Type	RJ45 plug
Article length	5.70cm
Width packaging	0.070m
Max. supported power	90W
Height packaging	0.016m
Weight	0.018kg
Length packaging	0.135m
Wire pairs used for power transmission	None
Type of packaging	Retail
Max. supported data transfer rate	10Gb/s
PU	1
PoE+	PoE+
Article height	1.50cm
Article width	1.60cm
Connection B	LSA clamp
Shielding
Keystone SNAP-In compatible
Technical details
Compliance certificates	ANSI, REACH, RoHS, TÜV mark
Weight & dimensions
Width	16 mm
Depth	57 mm
Height	15 mm
Weight	15 g

---
