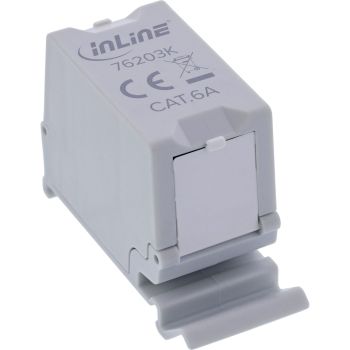

InLine® Cat.6A RJ45 double connector for top-hat rail content_copy

Clean network connections in the building distribution board and meter cupboardWell-organised network cabling: Connect two RJ45 network cables securely using the Cat.6A double coupler and mount it on a standard TH35 top-hat rail to save space.
High network performance: Supports data transfer rates of up to 10 Gb/s as well as PoE and PoE+, and is suitable for modern Ethernet networks with high demands on speed and reliability.
Shielded design: The die-cast zinc housing with integrated earthing spring supports equipotential bonding and contributes to low-interference signal transmission in demanding installations.
Versatile applications: Suitable for structured network cabling in distribution cabinets, building distribution boards and meter cabinets, for example when integrating modern smart meters or other network-enabled components.
Easy installation: The coupler snaps onto standard TH35 top-hat rails without the need for tools. Dust caps protect the RJ45 sockets during installation or when not in use.
The InLine Cat.6A RJ45 double connector for top-hat rail mounting enables a reliable connection between two network cables within structured network cabling systems. Featuring two RJ45 sockets with a 1:1 pinout, it is suitable for applications in distribution cabinets, building distribution boards and other installation environments where a compact and clearly organised network connection is required.
The fully shielded die-cast zinc housing, together with the integrated earthing spring, supports equipotential bonding and contributes to low-interference data transmission. The coupler supports data rates of up to 10 Gb/s as well as PoE and PoE+, and can be mounted on standard TH35 top-hat rails without the need for tools.
Another typical area of application is structured network cabling in domestic distribution boards or meter cabinets. The RJ45 double connector facilitates a neat and space-saving connection of network cables, for example for integrating modern smart meters or other network-enabled components. Mounting on a top-hat rail ensures a tidy installation and structured cable routing within the distribution board.
Dust caps protect the connectors during installation or when not in use, and round off the well-thought-out design for professional network installations.
Cat.6A
RJ45 socket to RJ45 socket
1:1 pinout
Up to 10 Gb/s
Support for PoE and PoE+
Fully shielded die-cast zinc housing
Earthing spring
Mounting on standard TH35 top-hat rail
Tool-free installation
Outer housing made of ABS plastic
Dust caps
Dimensions: 46.6 x 31.3 x 19.5 mm

Features
Construction type	Flat
Product colour	Grey
Connector 1	RJ-45
Connector 2	RJ-45
Connector 1 gender	Female
Connector 2 gender	Female
Cable types supported	Cat6a
Housing material	Acrylonitrile butadiene styrene (ABS), Zinc
Networking standards	IEEE 802.3bt
Power over Ethernet (PoE)
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package volume	400 cm³
Package type	Polybag
Package width	72 mm
Package depth	140 mm
Package height	20 mm
Package weight	28 g
Technical data
Width packaging	0.072m
Max. supported data transfer rate	10Gb/s
Height packaging	0.020m
Max. supported PoE standard	802.3bt
Length packaging	0.140m
Connection A	RJ45 female
PoE+	PoE+
Wire pairs used for power transmission	The specific method used is determined by the PSE (Power Sourcing Equipment)
Packaging volume	0.0004m³
Max. supported power	90W
Weight	0.028kg
Net weight	0.026kg
Article width	2.00cm
Connection B	RJ45 female
Colour	Grey
Network category	Cat.6A
Article height	3.00cm
Type	Cable connector
Finish	With dust cover
Article length	4.60cm
Shielding
Keystone SNAP-In compatible
Technical details
Compliance certificates	RoHS
Weight & dimensions
Width	20 mm
Depth	46 mm
Height	30 mm
Weight	26 g

---
