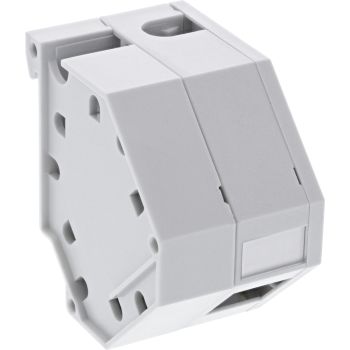

InLine® Keystone SNAP-In Fiber Keystone module holder, 1-port for DIN rail content_copy

Mount a fiber optic keystone neatly on the DIN railFast snap-in mounting: Opening 19.2 x 14.9 mm for one keystone module.
Space-saving in the distribution panel: Slim single holder for modules up to 17.4 mm wide.
Neat fiber optic cable routing: Integrated strain relief module or routing for overlength fiber optic cables.
Clearly labeled: Integrated labeling field for quick assignment.
Stable rail mounting: For 35 mm DIN rails, can be lined up as needed.
The compact holder enables quick snap-in mounting of a keystone module on the 35 mm DIN rail. Thanks to the slim design, modules up to 17.4 mm wide can also be securely installed. The additional strain relief module supports neat, strain-relieved routing of fiber optic cables and helps to route excess lengths neatly. The integrated labeling field provides clear identification and overview.
Particularly helpful for on-site installations and control cabinet construction, in professional IT environments as well as in existing infrastructures of companies and public institutions. The design that can be lined up simplifies structured, modular builds and later expansions without extra effort.
Slot: 1x keystone port
Opening: 19.2 x 14.9 mm
Mounting: 35 mm DIN rail
Form factor: single, can be lined up
Cable routing: Integrated strain relief module or routing of fiber optic excess lengths
Color: light gray
Dimensions (D x H x W): 62.7 x 60 x 44 mm
Compatible module width: up to 17.4 mm

Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package volume	400 cm³
Package width	90 mm
Package depth	140 mm
Package height	25 mm
Package weight	37 g
Technical data
Length packaging	0.140m
Connection B	Top hat rail 35mm
Packaging volume	0.0004m³
Article length	7.00cm
Type	Keystone
Weight	0.037kg
Type of packaging	Retail
Connection A	Universal fiber optic 19.2x14.9mm
Net weight	0.021kg
Width packaging	0.090m
Height packaging	0.025m
Article height	2.30cm
Finish	Normal
Network category	Fiber
Article width	6.40cm
PU	1
Shielding
Keystone SNAP-In compatible
Weight & dimensions
Width	64 mm
Depth	70 mm
Height	23 mm
Weight	21 g

---
