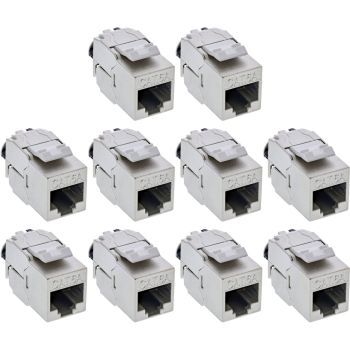

InLine® Keystone RJ45 jack slim, SNAP-In, Cat.6A, integrated cable tie, 10pcs. content_copy

Fast Cat.6A connections in 19-inch panels and boxesFast SNAP-In mounting: Fits 19-inch blank panels and outlet boxes for quick installation.
10 Gb/s over Cat.6A: 500 MHz performance for high-performance data links.
Precise LSA termination: Secure connection for solid conductors AWG 22-26.
Robust shielding: Fully shielded die-cast housing reduces interference.
Clean strain relief: Integrated cable clip secures 6.0-8.5 mm cables.
This keystone RJ45 module simplifies Cat.6A cabling with fast SNAP-In mounting and reliable LSA conductor termination. The fully shielded design with die-cast housing supports stable links up to 10 Gb/s, while the integrated cable clip keeps the installation tidy and improves strain relief.
In professional IT environments and during on-site deployments, the module can be used in 19-inch blank panels and outlet boxes to efficiently expand or modernize existing infrastructures. Support for PoE and PoE+ enables data and power over the same cable in companies and public institutions.
Connector: RJ45 socket (keystone, SNAP-In)
Category: Cat.6A
Frequency: 500 MHz
Data rate: up to 10 Gb/s
Shielding: fully shielded
Housing: die-cast
Termination: LSA strip
Conductor type: solid installation cables AWG 22-26
Cable outer diameter: 6.0-8.5 mm
Mounting: 19-inch blank panel and outlet boxes
PoE support: PoE, PoE+
Mating cycles: 750
Dimensions: 14.5 x 31.5 x 19.4 mm
Cutout height: 16 mm
Operating temperature: -10 to +60 °C
Storage temperature: -40 to +70 °C
Quantity: 10 pieces

Features
Construction type	Flat
Product colour	Silver
Connector 1	RJ-45
Connector 2	LSA
Connector 1 gender	Female
Cabling technology	10GBase-T
AWG wire size	22/26
Cable types supported	Cat6
Networking standards	IEEE 802.3bt
Frequency	500 MHz
Power over Ethernet (PoE)
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	-10 - 60 °C
Storage temperature (T-T)	-40 - 70 °C
Packaging content
Quantity per pack	10 pc(s)
Packaging data
Package volume	600 cm³
Package type	Polybag
Package width	90 mm
Package depth	155 mm
Package height	40 mm
Package weight	176 g
Technical data
Packaging volume	0.0006m³
Max. supported power	90W
Width packaging	0.090m
Type of packaging	Retail
Article width	2.00cm
PU	1
Article length	3.40cm
Weight	0.176kg
Height packaging	0.040m
Max. supported PoE standard	802.3bt
Operation temperature	-10 to +60°C
Length packaging	0.155m
Max. supported data transfer rate	10Gb/s
Connection A	RJ45 female
Article height	1.50cm
Network category	Cat.6A
Storage temperature	-40 to +70°C
Net weight	0.150kg
Type	Cable connector
PoE+	PoE+
Wire pairs used for power transmission	The specific method used is determined by the PSE (Power Sourcing Equipment)
Connection B	LSA clamp
Shielding
Keystone SNAP-In compatible
Technical details
Compliance certificates	TÜV mark, RoHS
Weight & dimensions
Width	20 mm
Depth	34 mm
Height	15 mm
Weight	150 g

---
