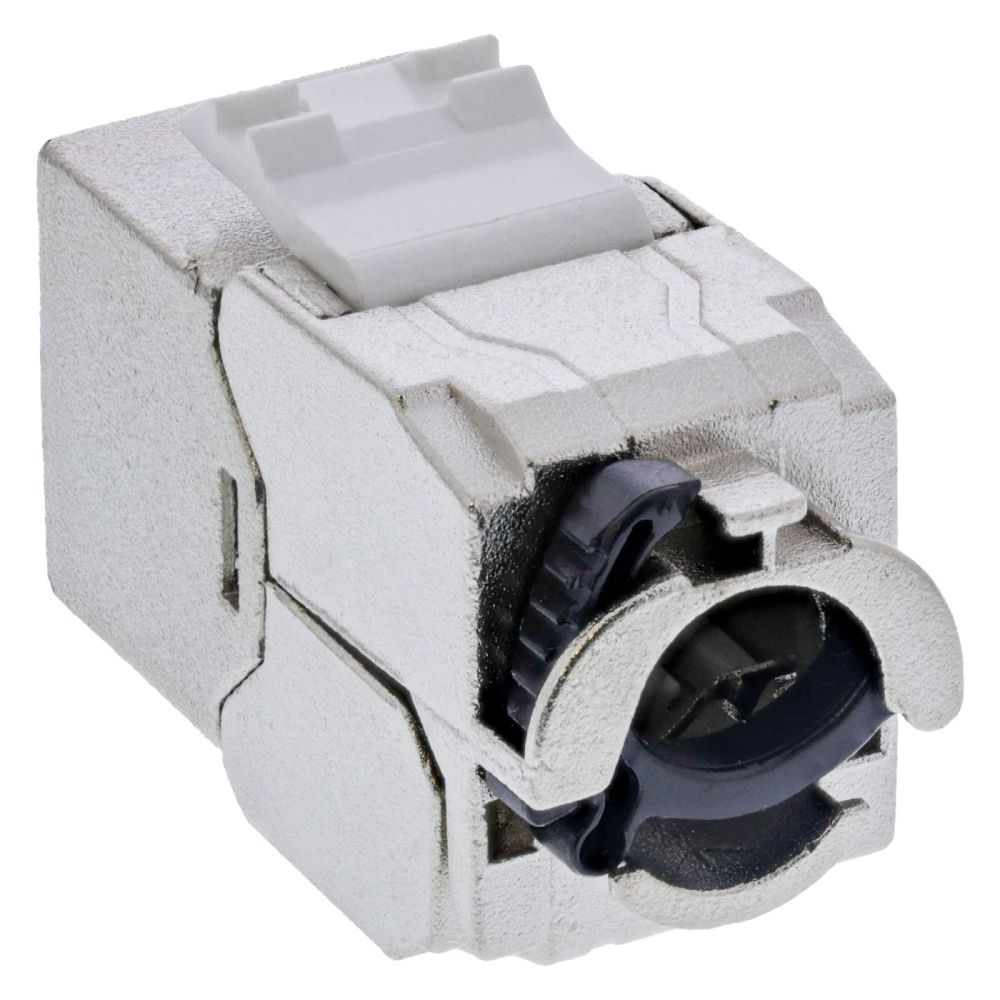

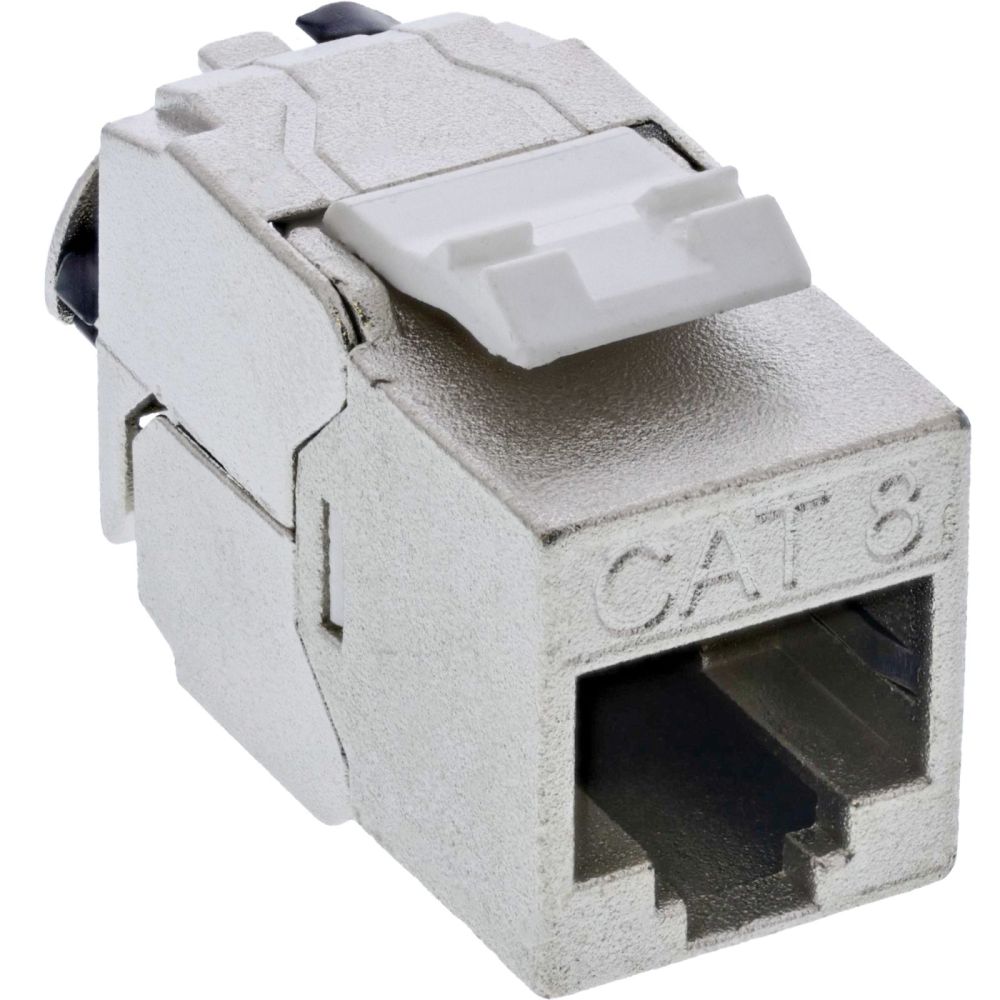

InLine® Keystone RJ45 jack slim, SNAP-In, Cat.8.1, integrated cable tie content_copy

Space-saving SNAP-In installation for Cat.8.1 networksFast installation in panels and boxes: Keystone SNAP-In fits 48,3 cm ( 19 inch ) blank panels and outlet boxes.
High-performance data rates up to 10 Gb/s: Cat.8.1 with 2000 MHz for fast connections.
Stable shielding in the network: Fully shielded die-cast housing reduces interference.
Precise termination in the field: LSA strip for solid installation cables AWG 22-26.
Efficient cable handling: Integrated cable clip simplifies mounting.
The slim Cat.8.1 Keystone RJ45 module reliably connects structured network cabling and supports data rates up to 10 Gb/s at 2000 MHz. The fully shielded design in a robust die-cast housing provides a low-interference connection, while the LSA strip allows clean termination of solid installation cables. PoE and PoE+ are supported, so end devices can be conveniently supplied with power.
Thanks to the SNAP-In mechanism, the module can be quickly inserted into 48,3 cm ( 19 inch ) blank panels and outlet boxes. The integrated cable clip simplifies cable management during on-site and service deployments and contributes to tidy, reproducible mounting in existing infrastructures of companies and public institutions. The design for 750 mating cycles supports long-lasting use in professional IT environments.
Connection: 1x RJ45 socket
Form factor: Keystone SNAP-In module
Standard: Cat.8.1, 2000 MHz
Data rate: up to 10 Gb/s
Shielding: fully shielded
Housing: die-cast housing

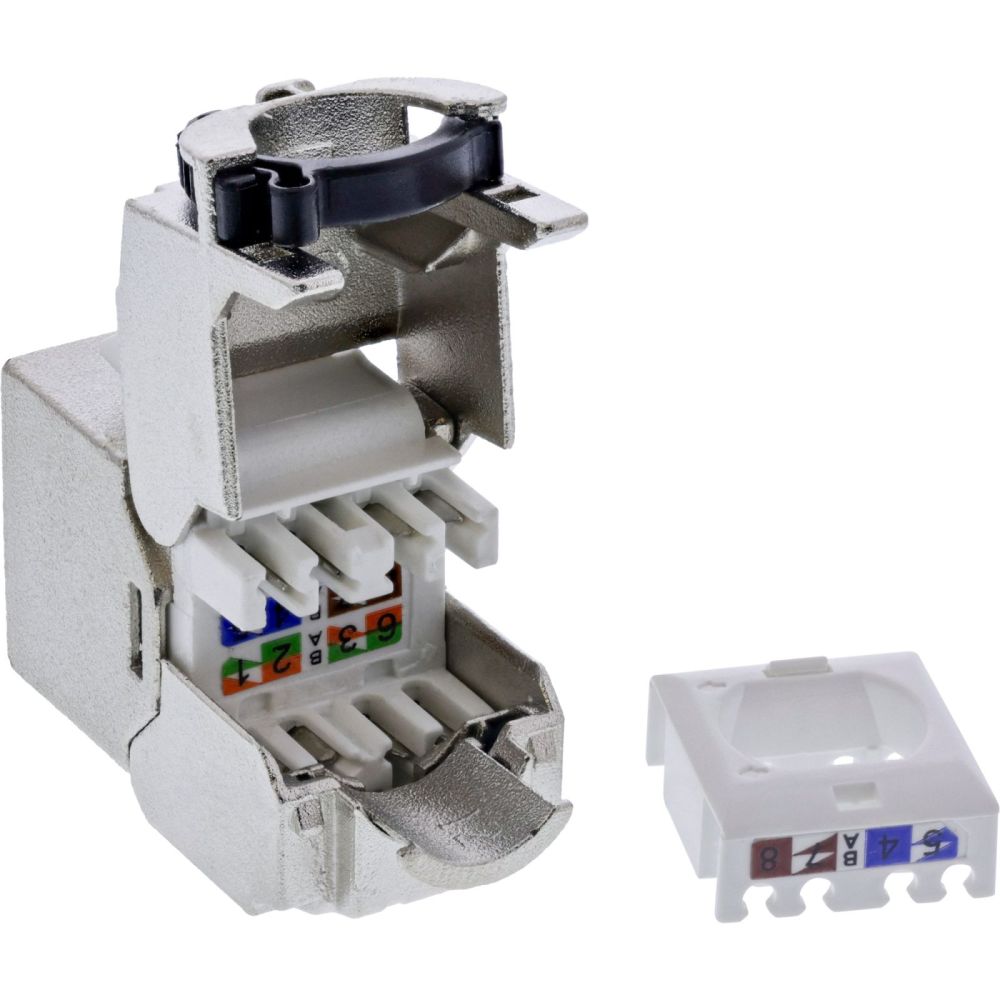

Termination system: LSA strip
Cable type: solid installation cables AWG 22-26
Cable diameter: 6.0-8.5 mm
Mounting: 48,3 cm ( 19 inch ) blank panel and outlet boxes
Dimensions: 14.5 x 31.8 x 19.4 mm
Cut-out height: 16 mm
PoE support: PoE, PoE+
Mating cycles: 750
Temperature ranges: -10 to +60 °C, -40 to +70 °C

Features
Product colour	Silver
AWG wire size	22/26
Operational conditions
Operating temperature (T-T)	-10 - 60 °C
Storage temperature (T-T)	-40 - 70 °C
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package volume	100 cm³
Package type	Bag
Package width	35 mm
Package depth	70 mm
Package height	20 mm
Package weight	20 g
Technical data
PoE+	PoE+
Net weight	0.015kg
Operation temperature	-10 to +60°C
Article width	2.00cm
Width packaging	0.095m
Max. supported PoE standard	802.3bt
Type	Keystone
Storage temperature	-40 to +70°C
Article length	3.40cm
Length packaging	0.070m
Max. supported data transfer rate	40Gb/s
Type of packaging	Retail
Packaging volume	0.0001m³
Max. supported power	90W
Connection A	RJ45 female
Network category	Cat.8.1
Article height	1.50cm
Connection B	LSA clamp
Height packaging	0.020m
Wire pairs used for power transmission	The specific method used is determined by the PSE (Power Sourcing Equipment)
Weight	0.020kg
Keystone SNAP-In compatible
Shielding
Weight & dimensions
Width	20 mm
Depth	34 mm
Height	15 mm
Weight	15 g

---
