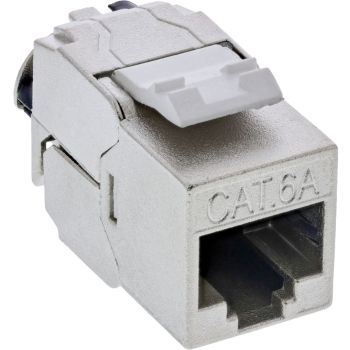

InLine® Keystone RJ45 jack slim, SNAP-In, Cat.6A, integrated cable tie content_copy

Time-saving Cat.6A cabling via Keystone SNAP-InMounting in patch panels and boxes: Keystone SNAP-In fits 48,3 cm ( 19 inch ) blank panels and outlet boxes.
High bandwidth up to 10 Gb/s: Cat.6A with 500 MHz for fast data connections.
Stable, low-interference transmission: Fully shielded design with die-cast housing reduces interference.
Fast termination of installation cables: LSA terminal and integrated cable clip simplify installation.
Fits solid cables: Designed for AWG 22-26 and 6.0-8.5 mm outer diameter.
The slim RJ45 keystone jack enables structured network connections at Cat.6A level. Keystone SNAP-In enables quick integration into 48,3 cm ( 19 inch ) blank panels and outlet boxes. The LSA terminal simplifies terminating solid installation cables, while the full shielding in the die-cast housing supports reliable signal quality. PoE and PoE+ are supported.
In professional IT environments, on-site installations, and service deployments, the modular format enables quick expansions and maintenance. In existing infrastructures of companies and public institutions, it also allows ports to be retrofitted or replaced in compliance with standards without large-scale modifications.
Connection: 1x RJ45 jack, LSA terminal
Standard: Cat.6A, 500 MHz
Data rate: up to 10 Gb/s
Shielding: fully shielded
Housing: die-cast
Mounting: Keystone SNAP-In
Compatibility: 48,3 cm ( 19 inch ) blank panel and outlet boxes
Cable type: solid installation cables AWG 22-26
Cable diameter: 6.0-8.5 mm
PoE support: PoE, PoE+
Mating cycles: 750
Dimensions: 14.5 x 31.5 x 19.4 mm
Cutout: height 16 mm

Features
Construction type	Flat
Product colour	Silver
Connector 1	RJ-45
Connector 2	LSA
Connector 1 gender	Female
AWG wire size	22/23/24/26
Networking standards	IEEE 802.3bt
Frequency	500 MHz
Power over Ethernet (PoE)
Magnetically shielded
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	-10 - 60 °C
Storage temperature (T-T)	-40 - 70 °C
Packaging content
Quantity per pack	24 pc(s)
Packaging data
Package volume	100 cm³
Package type	Polybag
Package width	35 mm
Package depth	70 mm
Package height	20 mm
Package weight	20 g
Technical data
Width packaging	0.095m
Max. supported PoE standard	802.3bt
Connection A	RJ45 female
Length packaging	0.070m
Max. supported data transfer rate	10Gb/s
Weight	0.020kg
Operation temperature	-10 to +60°C
Article width	2.00cm
PU	1
PoE+	PoE+
Net weight	0.015kg
Connection B	LSA clamp
Wire pairs used for power transmission	The specific method used is determined by the PSE (Power Sourcing Equipment)
Height packaging	0.020m
Storage temperature	-40 to +70°C
Article length	3.40cm
Type	Cable connector
Article height	1.50cm
Network category	Cat.6A
Packaging volume	0.0001m³
Max. supported power	90W
Type of packaging	Retail
Keystone SNAP-In compatible
Shielding
Weight & dimensions
Width	20 mm
Depth	34 mm
Height	15 mm
Weight	15 g

---
