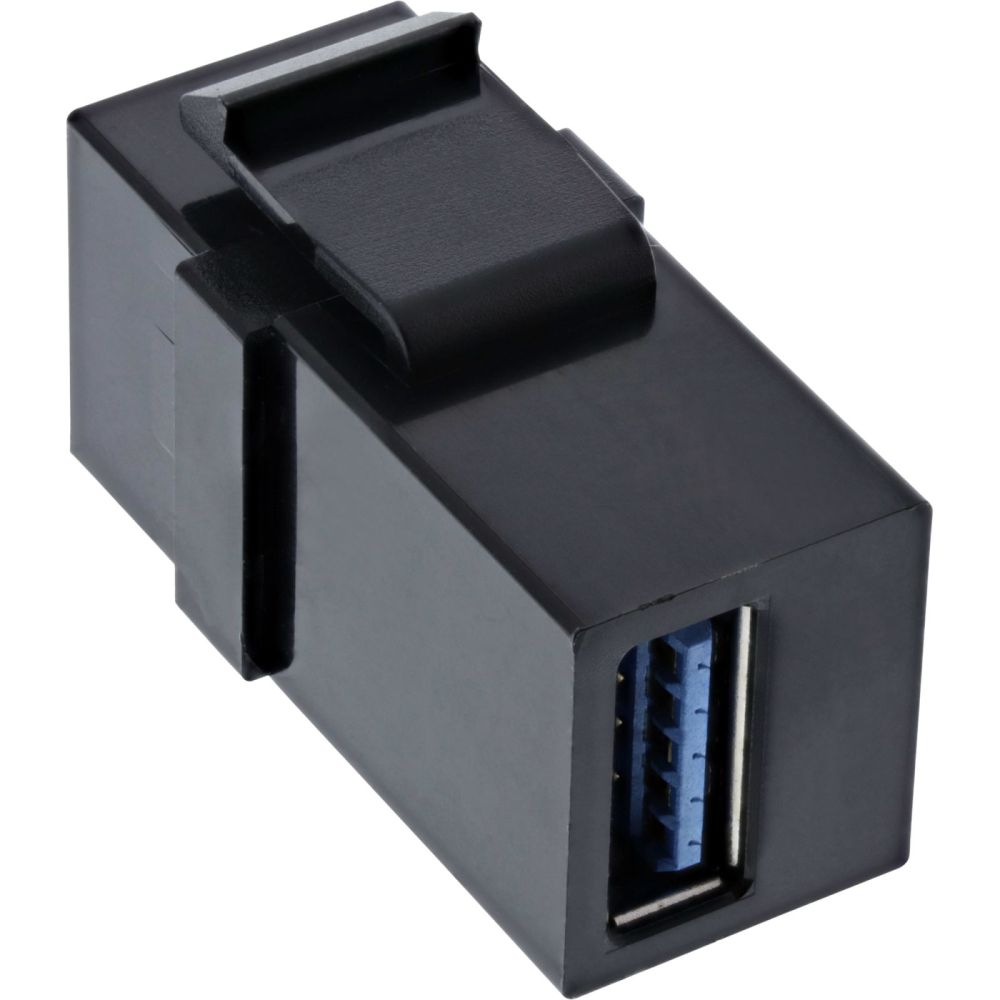

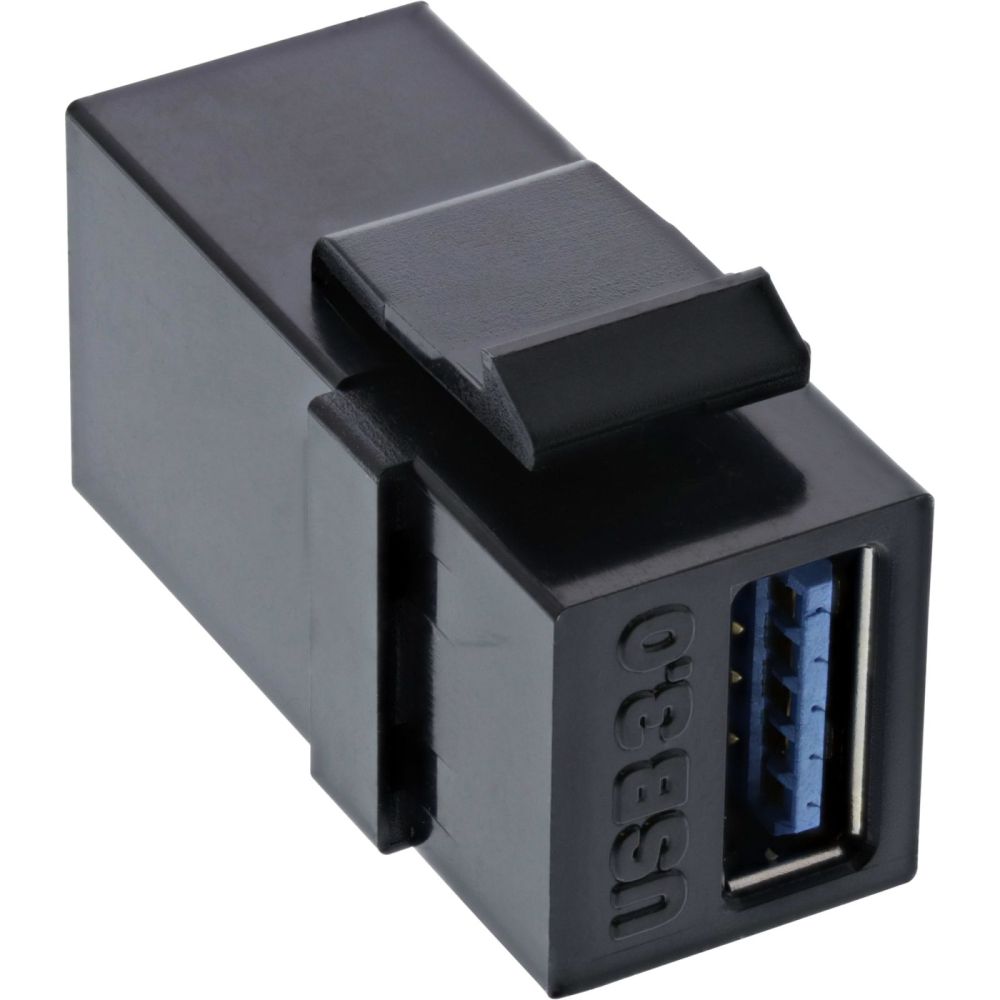

InLine® USB 3.1 Snap-In module, USB-A F/F, black housing content_copy

Quickly retrofit a USB panel connection via Keystone insertFast panel integration: Keystone snap-in fits tool-free into module plates and patch panels.
High data rates: USB 3.2 Gen.1 with up to 5 Gb/s for fast data connections.
Easy extension: USB-A socket to USB-A socket connects two cables without an adapter cable.
Power supply as needed: Supports USB Power Delivery up to 900 mA.
The Keystone insert provides a USB-A port on front panels and patch panels. The A-A coupler connects two USB cables into a continuous run and enables fast data transfer up to 5 Gb/s as well as powering compatible devices via USB Power Delivery up to 900 mA.
In professional IT environments, in on-site installations and in service operations, the tool-free snap-in mechanism simplifies retrofitting and replacement without removing the panel. This also creates neat, uniform connection points with low installation effort in existing infrastructures of companies and public institutions.
Connection: 2x USB-A sockets
Standard: USB 3.2 Gen.1
Data rate: up to 5 Gb/s
Power supply: USB Power Delivery up to 900 mA
Mounting: Keystone snap-in
Housing material: plastic
Color: black
Installation: module plates, patch panels

Features
Product colour	Black
Connector 1	USB 3.1 (Gen.1) A female
Connector 2	USB Type-A
Connector 1 gender	Female
Connector 2 gender	Female
Housing material	Plastic

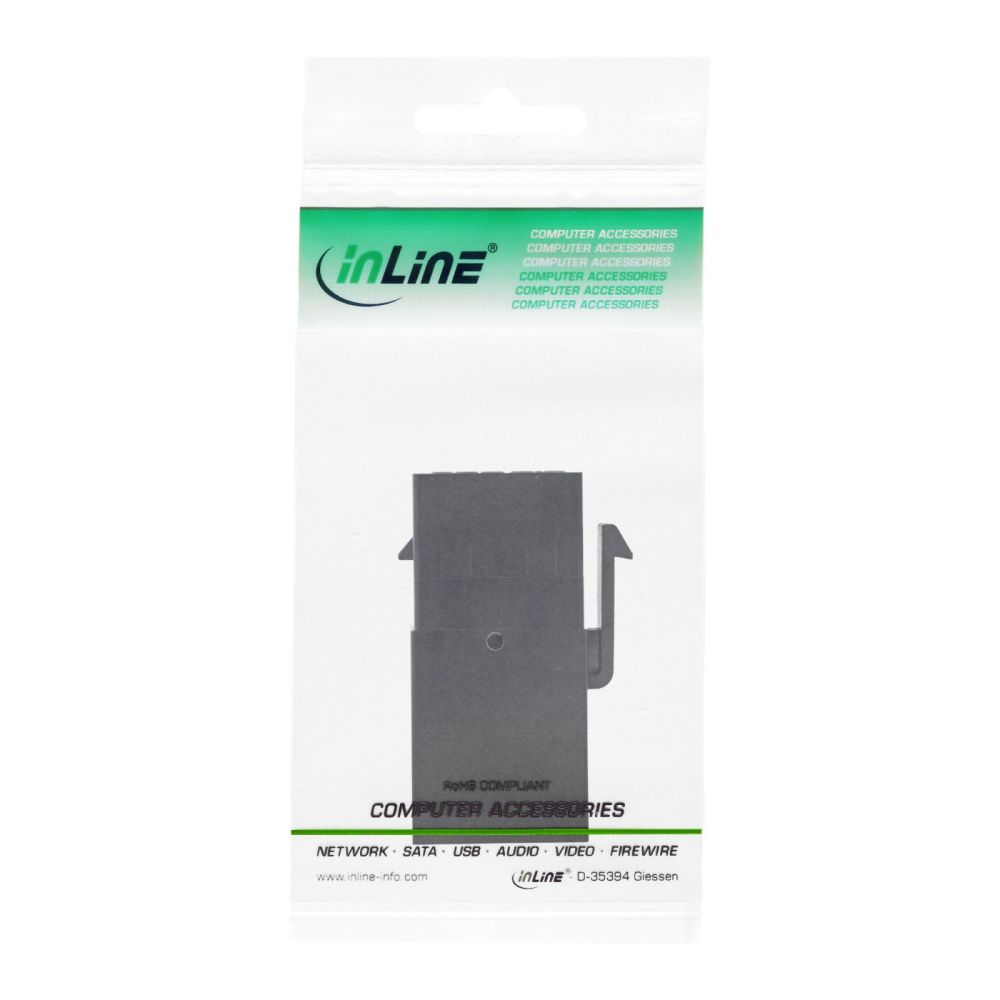

Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package volume	100 cm³
Package type	Polybag
Package width	22 mm
Package depth	35 mm
Package height	18 mm
Package weight	3.6 kg
Technical data
Length packaging	0.035m
Packaging volume	0.0001m³
Weight	0.008kg
Side B	USB 3.2 Gen.1 A female
Article width	2.20cm
Width packaging	0.022m
Article length	3.60cm
Colour	Black
Height packaging	0.018m
Article height	1.50cm
Housing material	Plastic
Side A	USB 3.2 Gen.1 A female
Net weight	0.006kg
Type	USB 3.2
Weight & dimensions
Width	15 mm
Depth	22 mm
Height	0.0600 mm
Weight	8 g

---
