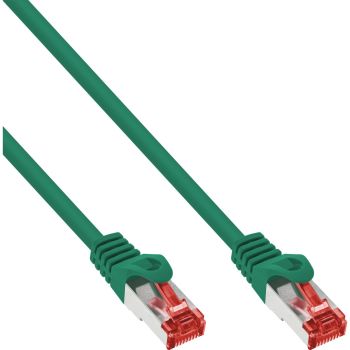

InLine® Patch cable, S/FTP (PiMf), Cat.6, 250MHz, PVC, CCA, green, 5m content_copy

Stable Gigabit performance: Supports 1 Gb/s connections at frequencies up to 250 MHz for fast and stable networks.
Optimal interference immunity: S/FTP shielding provides effective protection against electromagnetic interference in demanding environments.
Robust RJ45 connectors: Molded connectors with bend and snap protection ensure a durable and resilient connection.
Practical handling: Color coding and printed length information facilitate the installation and management of complex networks.
Universal compatibility: Standard-compliant 1:1 assignment according to EIA/TIA 568B ensures maximum compatibility with network components.
The InLine® Cat.6 patch cables with S/FTP shielding offer a reliable solution for modern Gigabit networks. Data rates of up to 1 Gb/s at a frequency of 250 MHz are supported. The combination of pair-wise metal foil shielding (PiMf) and additional overall braiding provides the cables with optimum protection against external interference.
The molded RJ45 connectors with molded bend and snap protection ensure a durable and secure connection. Thanks to the printed length information and color coding, the cables can be quickly and easily identified—ideal for structured installations in home networks, offices, or server rooms.
The flexible PVC jacket and AWG27 CCA strands allow for easy installation even in confined spaces. The 1:1 assignment according to EIA/TIA 568B ensures a reliable connection to routers, switches, patch panels, and network sockets.
2x RJ45 plugs, molded
S/FTP shielding (PiMf + braid)
PVC jacket, flexible
Supports 1 Gb/s up to 250 MHz
AWG27 wire cross-section, CCA material
Standard 1:1 assignment according to EIA/TIA 568B
With length specification and color coding

Features
Product colour	Green
Cable length	5 m
Cable standard	Cat6
Cable shielding	S/FTP (S-STP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector 1 gender	Male
Connector 2 gender	Male
Jacket material	Polyvinyl chloride (PVC)
Cabling technology	10/100/1000Base-T(X)
AWG wire size	27
Frequency	250 MHz
Other features
Dimensions (WxDxH)	12 x 5000 x 15 mm
Packaging data
Package width	145 mm
Package depth	145 mm
Package height	30 mm
Package weight	155 g
Package volume	600 cm³
Technical data
Packaging volume	0.0006m³
Design	Round cable
Colour	Green
Patch cable category	Cat.6
Storage temperature	-20 to +70°C
Type	Cat.6
Data transmission rate	1Gb/s
Article length	500.00cm
Conductor material	CCA (copper/aluminium)
Operation temperature	-10 to +60°C
Side B	RJ45 plug straight
Net weight	0.142kg
Length	5m
Side A	RJ45 plug straight
Shielding	S/FTP (PiMf)
Height packaging	0.030m
Outer diameter	5.9mm
Article width	1.20cm
Diameter	AWG 27
Assignment	1:1
Signal	Network
Packing	Retail
Length packaging	0.145m
Article height	1.50cm
Sheath	PVC
Width packaging	0.145m
Weight	0.155kg
PoE/PoE+/PoE++
UL
Weight & dimensions
Width	12 mm
Depth	5000 mm
Height	15 mm
Weight	142 g

---
