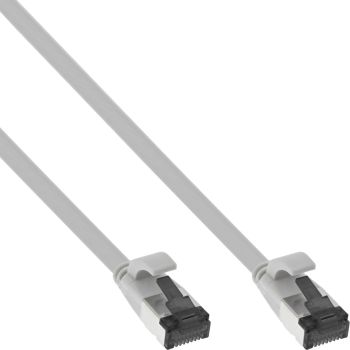

InLine® Patch cable flat, U/FTP, Cat.8.1, TPE halogen-free, grey, 1.5m
|
4,06 EUR |
|||||||||||
|
( 4,83 EUR incl. VAT ) ≈ £3.40 | ≈ $4.54 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |||||||||||
| In Stock: >500 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 22196886 | ||||||||||
| Mfg Part No: | 75814 | ||||||||||
| UPC/EAN: | 4043718295265 | ||||||||||
| Weight: | 0.034 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Inline 75814:
U/FTP shielded: In pairs in metal foil (PiMf)
fulfils the Cat.8.1 requirements up to 2000MHz
Four core pairs, twisted
Solid copper strands
1:1 Assignment, colour coded according to EIA/TIA-568B
2x RJ45 plug, moulded, with latching protection
Black coloured plug for differentiation
50µ" gold-plated contacts
Cable cross-section only approx. 6.5x2mm
Halogen-free TPE sheath
Flexible and easy to install
Compliant with the standards ISO11801, EN50173 and ANSI/TIA-568.2-D
in a resealable PE bag with EAN code
| Certificates | |
| Certification | ISO11801, EN50173, ANSI/TIA-568.2-D |
| Features | |
| Product colour | Grey |
| Cable length | 1.5 m |
| Cable standard | Cat8.1 |
| Cable shielding | U/FTP (STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Jacket material | Thermoplastic elastomer (TPE) |
| Cable shape | Flat |
| Conductor type | Solid |
| Conductor material | Copper |
| AWG wire size | 32 |
| Frequency | 2000 MHz |
| Connector shielding | |
| Other features | |
| Dimensions (WxDxH) | 12 x 1500 x 12 mm |
| Packaging data | |
| Package width | 110 mm |
| Package depth | 110 mm |
| Package height | 15 mm |
| Package weight | 34 g |
| Package volume | 200 cm³ |
| Sustainability | |
| Doesn't contain | Halogen |
| Technical data | |
| Diameter | AWG 32 |
| Conductor material | CU (copper) |
| Article length | 150.00cm |
| Type | Cat.8.1 |
| Length packaging | 0.110m |
| Wire pairs used for power transmission | 1236 or 4578, the specific method used is determined by the PSE (Power Sourcing Equipment) |
| Data transmission rate | 40Gb/s |
| Sheath | TPE |
| Length | 1.50m |
| Packing | Retail |
| Outer diameter | 6.5x2.0mm |
| Max. supported data transfer rate | 40Gb/s |
| Weight | 0.034kg |
| Assignment | 1:1 |
| Article height | 1.20cm |
| Side A | RJ45 plug straight |
| Max. supported PoE standard | 802.3af |
| Colour | Grey |
| Packaging volume | 0.0002m³ |
| Patch cable category | Cat.8.1 |
| Net weight | 0.027kg |
| Signal | Network |
| Width packaging | 0.110m |
| Article width | 1.20cm |
| Design | Flat cable |
| Height packaging | 0.015m |
| Side B | RJ45 plug straight |
| Max. supported power | 15.4W |
| Shielding | U/FTP |
| PoE/PoE+/PoE++ | |
| UL | |
| Weight & dimensions | |
| Width | 12 mm |
| Depth | 1500 mm |
| Height | 12 mm |
| Weight | 27 g |
Questions & answers
What is the delivery time of InLine® Patch cable flat, U/FTP, Cat.8.1, TPE halogen-free, grey, 1.5m?
The article InLine® Patch cable flat, U/FTP, Cat.8.1, TPE halogen-free, grey, 1.5m is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Inline 75814 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you InLine® Patch cable flat, U/FTP, Cat.8.1, TPE halogen-free, grey, 1.5m always at the best possible price. We can give you a discount of 2% on InLine® Patch cable flat, U/FTP, Cat.8.1, TPE halogen-free, grey, 1.5m if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 50 pieces of InLine® Patch cable flat, U/FTP, Cat.8.1, TPE halogen-free, grey, 1.5m we can offer you a price of 4,03 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
