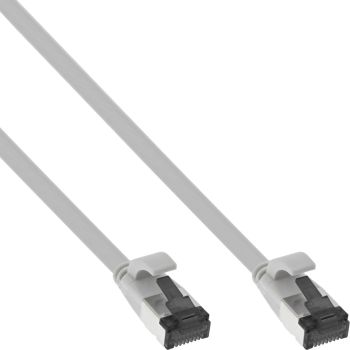

InLine® Patch cable flat, U/FTP, Cat.8.1, TPE halogen-free, grey, 0.25m
|
2,84 EUR |
|||||||||||
|
( 3,38 EUR incl. VAT ) ≈ £2.38 | ≈ $3.18 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |||||||||||
| In Stock: >500 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 22196666 | ||||||||||
| Mfg Part No: | 75812 | ||||||||||
| UPC/EAN: | 4043718295227 | ||||||||||
| Weight: | 0.016 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Inline 75812:
U/FTP shielded: In pairs in metal foil (PiMf)
fulfils the Cat.8.1 requirements up to 2000MHz
Four core pairs, twisted
Solid copper strands
1:1 Assignment, colour coded according to EIA/TIA-568B
2x RJ45 plug, moulded, with latching protection
Black coloured plug for differentiation
50µ" gold-plated contacts
Cable cross-section only approx. 6.5x2mm
Halogen-free TPE sheath
Flexible and easy to install
Compliant with the standards ISO11801, EN50173 and ANSI/TIA-568.2-D
in a resealable PE bag with EAN code
| Certificates | |
| Certification | ISO11801, EN50173, ANSI/TIA-568.2-D |
| Features | |
| Product colour | Grey |
| Cable length | 0.25 m |
| Cable standard | Cat8.1 |
| Cable shielding | U/FTP (STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Jacket material | Thermoplastic elastomer (TPE) |
| Cable shape | Flat |
| Conductor type | Solid |
| Conductor material | Copper |
| AWG wire size | 32 |
| Frequency | 2000 MHz |
| Connector shielding | |
| Other features | |
| Dimensions (WxDxH) | 12 x 250 x 12 mm |
| Packaging data | |
| Package width | 80 mm |
| Package depth | 120 mm |
| Package height | 15 mm |
| Package weight | 16 g |
| Package volume | 200 cm³ |
| Sustainability | |
| Doesn't contain | Halogen |
| Technical data | |
| Colour | Grey |
| Packaging volume | 0.0002m³ |
| Article height | 1.20cm |
| Packing | Retail |
| Outer diameter | 6.5x2.0mm |
| Max. supported data transfer rate | 40Gb/s |
| Weight | 0.016kg |
| Width packaging | 0.080m |
| Article width | 1.20cm |
| Design | Flat cable |
| Sheath | TPE |
| Conductor material | CU (copper) |
| Type | Cat.8.1 |
| Length packaging | 0.120m |
| Wire pairs used for power transmission | 1236 or 4578, the specific method used is determined by the PSE (Power Sourcing Equipment) |
| Data transmission rate | 40Gb/s |
| Side A | RJ45 plug straight |
| Max. supported PoE standard | 802.3af |
| Diameter | AWG 32 |
| Assignment | 1:1 |
| Article length | 25.00cm |
| Patch cable category | Cat.8.1 |
| Net weight | 0.009kg |
| Signal | Network |
| Height packaging | 0.015m |
| Side B | RJ45 plug straight |
| Max. supported power | 15.4W |
| Shielding | U/FTP |
| UL | |
| PoE/PoE+/PoE++ | |
| Weight & dimensions | |
| Width | 12 mm |
| Depth | 250 mm |
| Height | 12 mm |
| Weight | 9 g |
