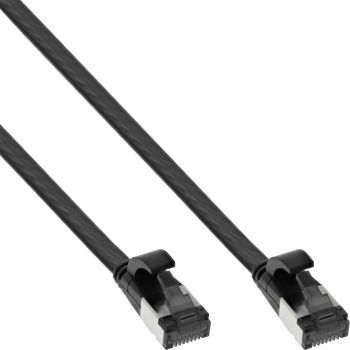

InLine® Patch cable flat, U/FTP, Cat.8.1, TPE halogen-free, black, 1m
|
3,47 EUR |
|||||||||||
|
( 4,13 EUR incl. VAT ) ≈ £2.90 | ≈ $3.88 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |||||||||||
| In Stock: >100 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 22196220 | ||||||||||
| Mfg Part No: | 75801S | ||||||||||
| UPC/EAN: | 4043718295340 | ||||||||||
| Weight: | 0.027 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Inline 75801S:
U/FTP shielded: In pairs in metal foil (PiMf)
fulfils the Cat.8.1 requirements up to 2000MHz
Four core pairs, twisted
Solid copper strands
1:1 Assignment, colour coded according to EIA/TIA-568B
2x RJ45 plug, moulded, with latching protection
Black coloured plug for differentiation
50µ" gold-plated contacts
Cable cross-section only approx. 6.5x2mm
Halogen-free TPE sheath
Flexible and easy to install
Compliant with the standards ISO11801, EN50173 and ANSI/TIA-568.2-D
in a resealable PE bag with EAN code
| Certificates | |
| Certification | ISO11801, EN50173, ANSI/TIA-568.2-D |
| Features | |
| Product colour | Black |
| Cable length | 1 m |
| Cable standard | Cat8.1 |
| Cable shielding | U/FTP (STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Jacket material | Thermoplastic elastomer (TPE) |
| Cable shape | Flat |
| Conductor type | Solid |
| Conductor material | Copper |
| AWG wire size | 32 |
| Frequency | 2000 MHz |
| Connector shielding | |
| Other features | |
| Dimensions (WxDxH) | 0.12 x 1000 x 0.15 mm |
| Packaging data | |
| Package width | 100 mm |
| Package depth | 100 mm |
| Package height | 10 mm |
| Package weight | 27 g |
| Package volume | 100 cm³ |
| Sustainability | |
| Doesn't contain | Halogen |
| Technical data | |
| Assignment | 1:1 |
| Net weight | 0.020kg |
| Design | Flat cable |
| Sheath | TPE |
| Patch cable category | Cat.8.1 |
| Max. supported PoE standard | 802.3af |
| Signal | Network |
| Packing | Retail |
| Length packaging | 0.100m |
| Article width | 0.012cm |
| Weight | 0.027kg |
| Diameter | AWG 32 |
| Packaging volume | 0.0001m³ |
| Conductor material | CU (copper) |
| Article length | 100.00cm |
| Colour | Black |
| Side A | RJ45 plug straight |
| Max. supported power | 15.4W |
| Height packaging | 0.010m |
| Outer diameter | 6.5x2.0mm |
| Wire pairs used for power transmission | 1236 or 4578, the specific method used is determined by the PSE (Power Sourcing Equipment) |
| Side B | RJ45 plug straight |
| Max. supported data transfer rate | 40Gb/s |
| Shielding | U/FTP |
| Type | Cat.8.1 |
| Width packaging | 0.100m |
| Article height | 0.015cm |
| Data transmission rate | 40Gb/s |
| UL | |
| PoE/PoE+/PoE++ | |
| Weight & dimensions | |
| Width | 0.12 mm |
| Depth | 1000 mm |
| Height | 0.15 mm |
| Weight | 20 g |
