InLine® Cat.6 Connection Box 2x RJ45 female to RAL9010 white horizontal
|
6,58 EUR |
|||||||||||
|
( 7,83 EUR incl. VAT ) ≈ £5.51 | ≈ $7.36 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |||||||||||
| In Stock: >25 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 22196091 | ||||||||||
| Mfg Part No: | 75602H | ||||||||||
| UPC/EAN: | 4043718111183 | ||||||||||
| Weight: | 0.215 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Inline 75602H:

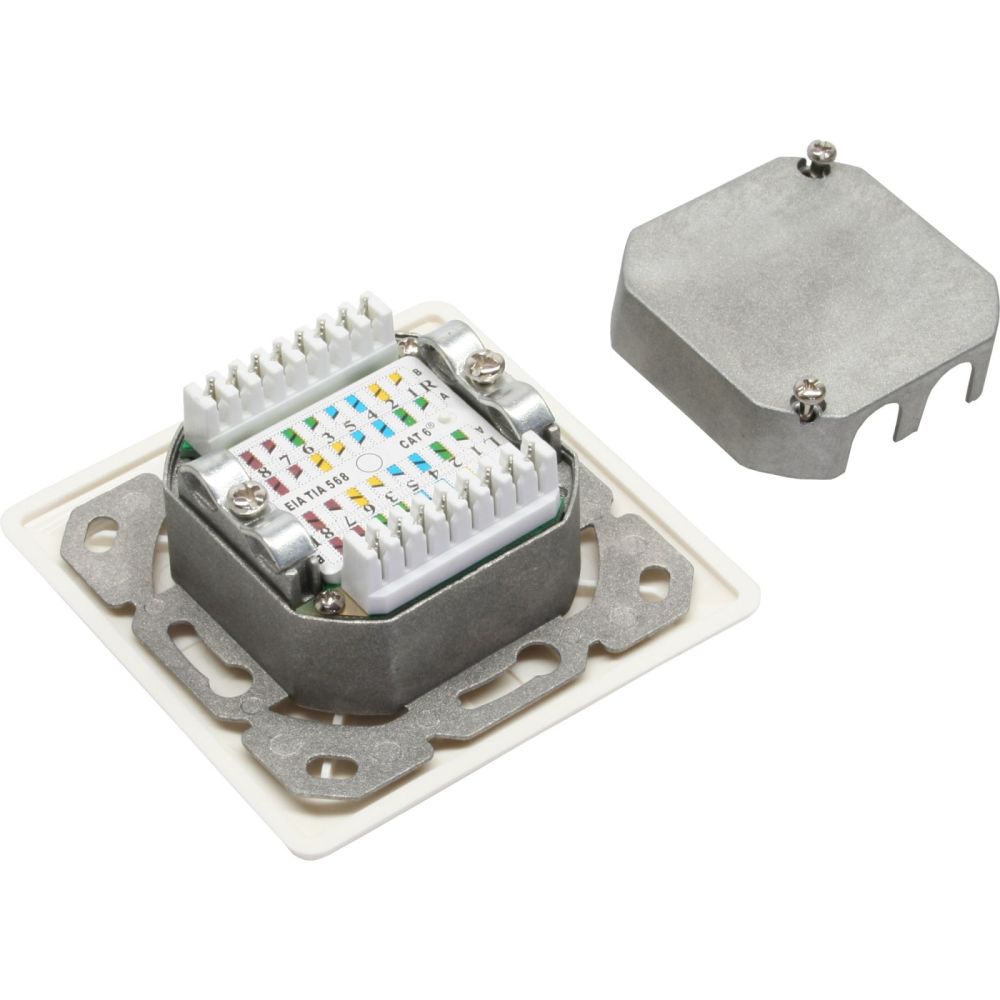

Fast, low-error termination: LSA/IDC strip with color coding according to TIA568B and numeric coding according to EN 50173.
Low-interference signal transmission: Fully shielded die-cast housing reduces external interference.
Visually integrated mounting: RAL9010 white, horizontal, compatible with common switch ranges.
Cleanly protected: Central plate with integrated dust caps keeps ports free of dirt.
This flush-mounted outlet with 2x RJ45 sockets enables two standards-compliant network connections at a central point. The 40° outlet supports tight bend radii directly in the wall box, the integrated accessories for complete flush mounting and the German/English manual accelerate installation without additional parts.
In professional IT environments, during on-site installations, in service deployments, and within existing infrastructures of companies and public institutions, the design-compatible appearance in RAL9010 provides a uniform look and facilitates retrofits in existing switch ranges.
Connection: 2x RJ45 sockets
Standard: Cat.6, Class E, 250 MHz
Standards: ISO/IEC 11801, EN 50173
Coding: Color coding according to TIA568B, numeric coding according to EN 50173
Outlet: 40°
Terminals: LSA/IDC strip
Shielding: Fully shielded die-cast housing
Cover: Central plate with integrated dust caps
Mounting type: Flush-mounted, horizontal
Color: RAL9010 white
Design compatibility: Compatible with all common switch ranges
Accessories: Accessories for complete flush mounting integrated
Manual: German/English installation manual integrated
Certificate: Components according to GHMT link certificate
| Packaging data | |
| Package width | 85 mm |
| Package depth | 85 mm |
| Package height | 60 mm |
| Package weight | 215 g |
| Package volume | 400 cm³ |
| Ports & interfaces | |
| Ports quantity | 2 |
| Technical data | |
| Installation | Flush-mounted |
| Cable entry | Horizontal |
| Width packaging | 0.085m |
| Connections | 2x RJ45 |
| Colour | White (RAL9010) |
| Net weight | 0.204kg |
| Type | Cat.6 connection box UP |
| Weight | 0.215kg |
| Height packaging | 0.060m |
| Length packaging | 0.085m |
| Packaging volume | 0.0004m³ |
| Network category | Cat.6 |
| Keystone SNAP-In compatible | |
| Modules integrated | |
| Technical details | |
| Product colour | White |
| Cable type | Cat6 |
| Connector(s) | Cat.6 |
| Weight & dimensions | |
| Weight | 204 g |
