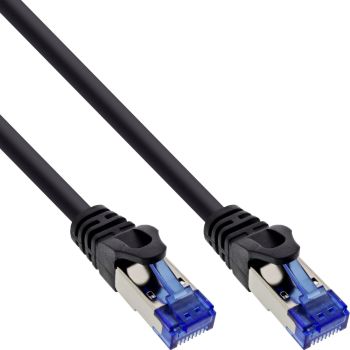

InLine® Patch cable armoured, U/FTP, Cat.6A, black, 20m content_copy

The InLine® Cat.6A armoured patch cable is a robust and powerful Ethernet cable designed for demanding network applications and environments. With armouring for increased mechanical strength, it offers reliable performance in various environments. Thanks to its full shielding and the use of high-quality materials, such as an inner jacket made of SUS204 stainless steel and an outer jacket made of highly elastic PVC, it guarantees high resistance. The InLine® patch cable is equipped with a core insulation layer HDPE - a robust and high-density polyethylene material - that offers excellent insulation properties. This patch cable is ideal for network applications where high quality insulation and signal integrity are required. Overall, armoured patch cords provide a robust solution for environments where traditional cables are not sufficient and ensure a reliable network connection even under demanding conditions. The InLine® patch cable is protected from heavy foot traffic, weather, pests and rodents due to its high quality construction. Ideal for shows, concerts, billboards and advertising signs.Cable type: Cat.6A U/FTP
Conductor: 28AWG
Insulation material: HDPEJacket: PVC
Outer diameter: 7.3mm (OD)
Connector type: 8P8C (RJ45) with 50µ" gold-plated contacts
Plug type: Fully shielded crimped plug
Inner jacket: SUS204 (stainless steel)
Outer sheath: Highly elastic PVC
Temperature range: Installation 0 to 50 °C, operation -20 to 60 °C
Bandwidth: 500MHz
Rated voltage: 30V
PoE/PoE+/PoE++: (up to 90W)
Force resistance with short pressure: 2000 N
Force resistance with sustained pressure: 500 N
Electrical properties:
Conductor DC resistance: 28.4 O/100m (maximum)
Impedance: 100 O
Capacitance: 5600pF/100m
Propagation delay: 545ns/100m (maximum)
Delay: 45 ns/100m (maximum)
Certification: Passes Fluke DSX 8000 channel test

Certificates
Compliance certificates	RoHS
Features
Product colour	Black
Cable length	20 m
Cable standard	Cat6a
Cable shielding	U/FTP (STP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector 1 gender	Male
Connector 2 gender	Male
Connector contacts plating	Gold
Jacket material	High-Density Polyethylene (HDPE), Stainless steel, Polyvinyl chloride (PVC)
Cable shape	Round
AWG wire size	28
Frequency	500 MHz
Power over Ethernet (PoE) type supported	PoE+, PoE++ (4PPoE)
Total Power over Ethernet (PoE) budget	90 W
Power over Ethernet (PoE)
Operational conditions
Operating temperature (T-T)	-20 - 60 °C
Other features
Dimensions (WxDxH)	11 x 20000 x 14 mm
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	300 mm
Package depth	350 mm
Package height	70 mm
Package weight	1.84 kg
Package volume	7400 cm³
Package type	Polybag
Technical data
Packaging volume	0.0074m³
Colour	Black
Weight	1.842kg
Net weight	1.832kg
Signal	Network
Special feature	Armoured
Article height	1.40cm
Shielding	U/FTP
Type	Cat.6A
Sheath	PVC
Outer diameter	7.3mm
Side B	RJ45 plug
Height packaging	0.070m
Diameter	AWG 28
Length	20m
Packing	Retail
Article length	2000.00cm
Variant	gold plated contacts, twisted pair
Article width	1.10cm
Design	Round cable
Patch cable category	Cat.6A
Side A	RJ45 plug
Operation temperature	-20 to +60°C
Length packaging	0.350m
Width packaging	0.300m
Gold plated contacts
PoE/PoE+/PoE++
Weight & dimensions
Width	11 mm
Depth	20000 mm
Height	14 mm
Outer diameter	7.3 mm
Weight	1.83 kg

---
