InLine® Patch cable armoured, U/FTP, Cat.6A, black, 15m content_copy

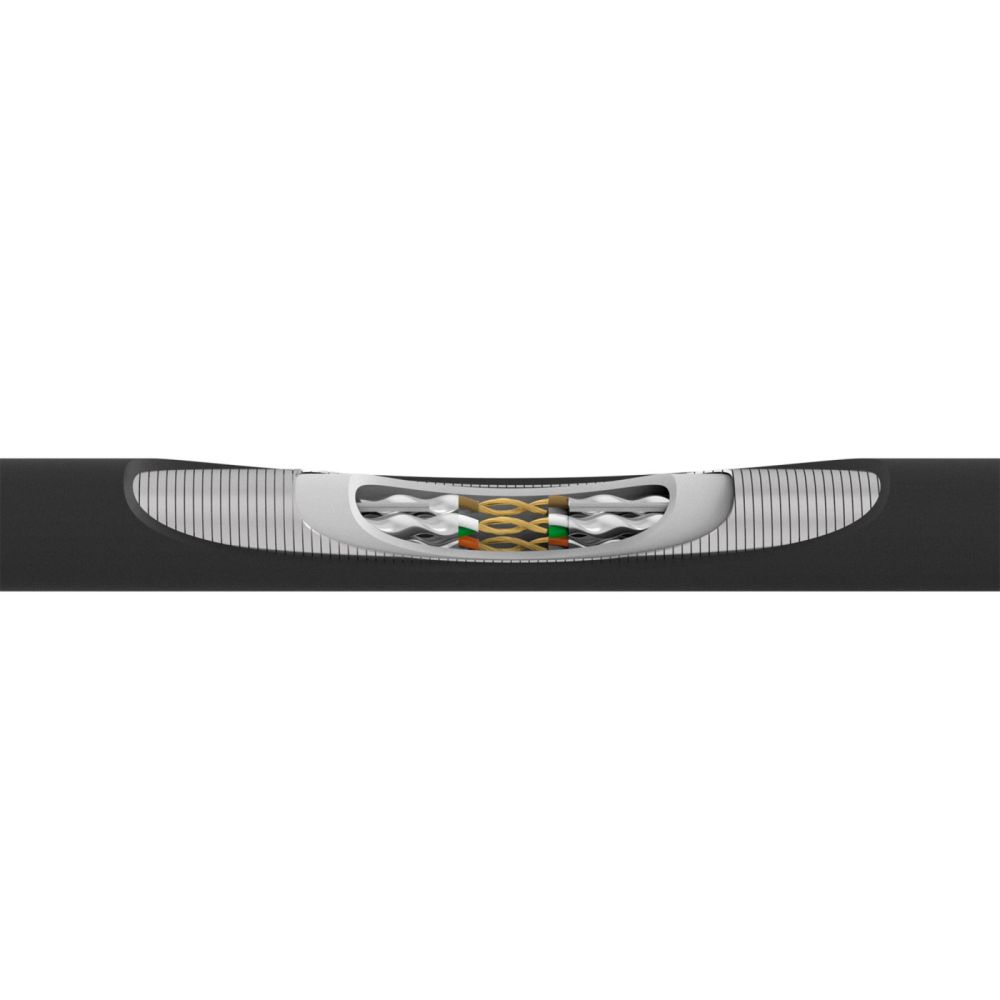

The InLine® Cat.6A armoured patch cable is a robust and powerful Ethernet cable designed for demanding network applications and environments. With armouring for increased mechanical strength, it offers reliable performance in various environments. Thanks to its full shielding and the use of high-quality materials, such as an inner jacket made of SUS204 stainless steel and an outer jacket made of highly elastic PVC, it guarantees high resistance. The InLine® patch cable is equipped with a core insulation layer HDPE - a robust and high-density polyethylene material - that offers excellent insulation properties. This patch cable is ideal for network applications where high quality insulation and signal integrity are required. Overall, armoured patch cords provide a robust solution for environments where traditional cables are not sufficient and ensure a reliable network connection even under demanding conditions. The InLine® patch cable is protected from heavy foot traffic, weather, pests and rodents due to its high quality construction. Ideal for shows, concerts, billboards and advertising signs.Cable type: Cat.6A U/FTP
Conductor: 28AWG
Insulation material: HDPEJacket: PVC
Outer diameter: 7.3mm (OD)

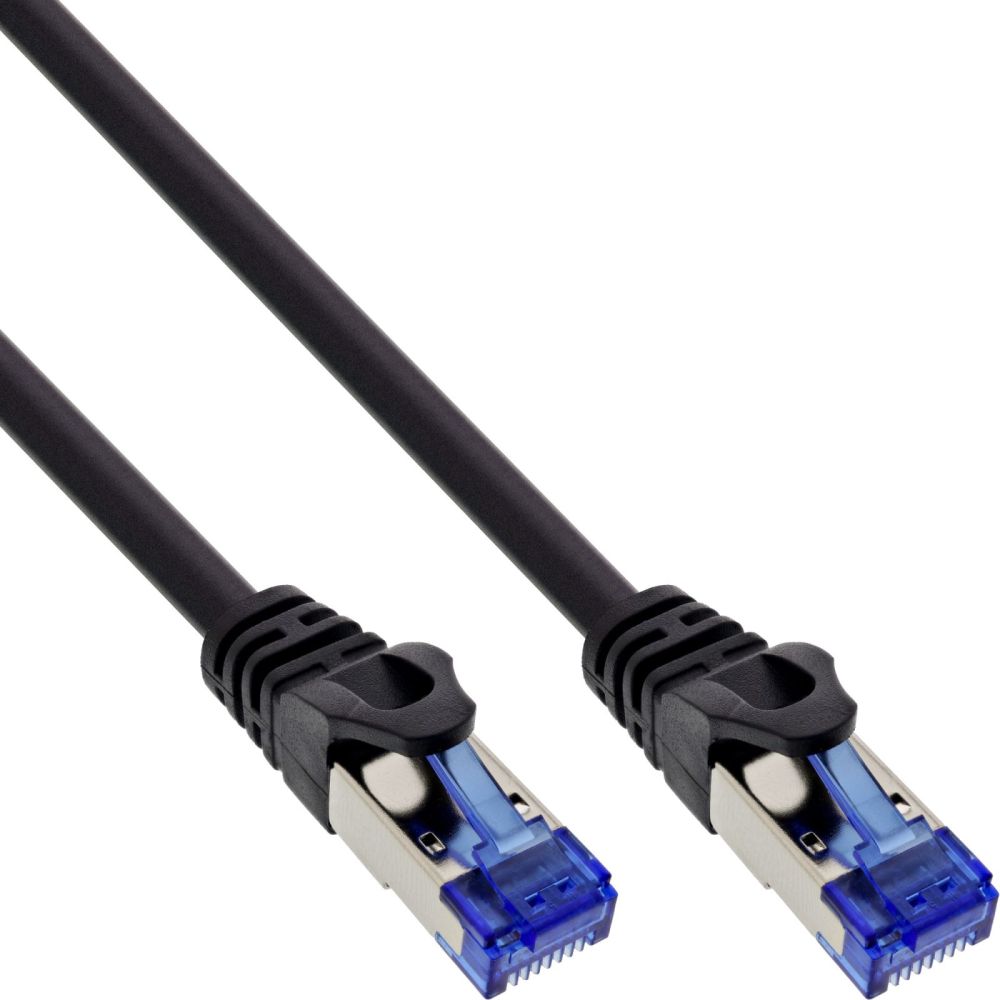

Connector type: 8P8C (RJ45) with 50µ" gold-plated contacts
Plug type: Fully shielded crimped plug

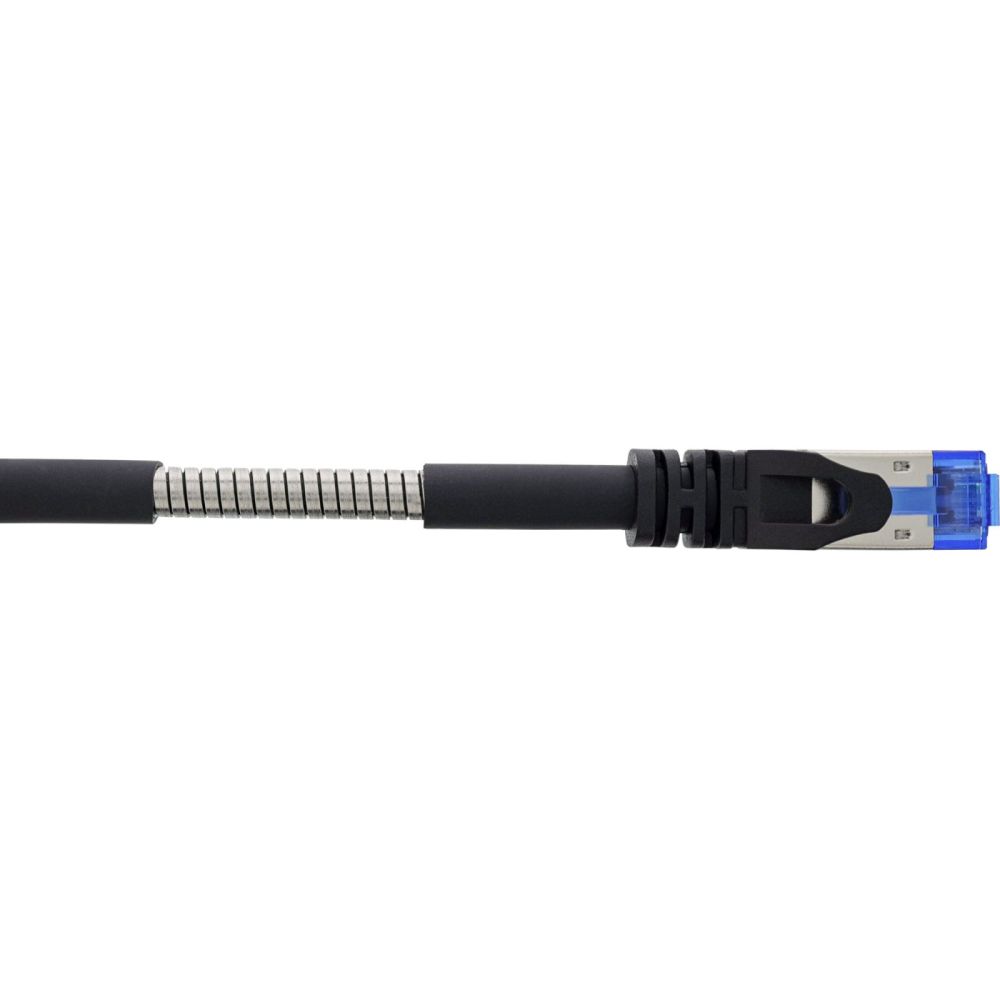

Inner jacket: SUS204 (stainless steel)
Outer sheath: Highly elastic PVC
Temperature range: Installation 0 to 50 °C, operation -20 to 60 °C
Bandwidth: 500MHz
Rated voltage: 30V
PoE/PoE+/PoE++: (up to 90W)
Force resistance with short pressure: 2000 N
Force resistance with sustained pressure: 500 N
Electrical properties:
Conductor DC resistance: 28.4 O/100m (maximum)
Impedance: 100 O
Capacitance: 5600pF/100m
Propagation delay: 545ns/100m (maximum)
Delay: 45 ns/100m (maximum)
Certification: Passes Fluke DSX 8000 channel test

Certificates
Compliance certificates	RoHS
Features
Product colour	Black
Cable length	15 m
Cable standard	Cat6a
Cable shielding	S/UTP (STP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector 1 gender	Male
Connector 2 gender	Male
Connector contacts plating	Gold
Jacket material	High-Density Polyethylene (HDPE), Stainless steel, Polyvinyl chloride (PVC)
Cable shape	Round
AWG wire size	28
Frequency	500 MHz
Power over Ethernet (PoE) type supported	PoE+, PoE++ (4PPoE)
Total Power over Ethernet (PoE) budget	90 W
Power over Ethernet (PoE)
Operational conditions
Operating temperature (T-T)	-20 - 60 °C
Other features
Dimensions (WxDxH)	11 x 15000 x 14 mm
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	305 mm
Package depth	330 mm
Package height	60 mm
Package weight	1.36 kg
Package volume	6100 cm³
Package type	Polybag
Technical data
Article width	1.10cm
Design	Round cable
Special feature	Armoured
Width packaging	0.305m
Type	Cat.6A
Packaging volume	0.0061m³
Diameter	AWG 28
Sheath	PVC
Packing	Retail
Weight	1.356kg
Article length	1500.00cm
Length	15m
Outer diameter	7.3mm
Side A	RJ45 plug
Operation temperature	-20 to +60°C
Patch cable category	Cat.6A
Colour	Black
Length packaging	0.330m
Side B	RJ45 plug
Variant	gold plated contacts, twisted pair
Net weight	1.346kg
Signal	Network
Article height	1.40cm
Shielding	U/FTP
Height packaging	0.060m
PoE/PoE+/PoE++
Gold plated contacts
Weight & dimensions
Width	11 mm
Depth	15000 mm
Height	14 mm
Outer diameter	7.3 mm
Weight	1.35 kg

---
