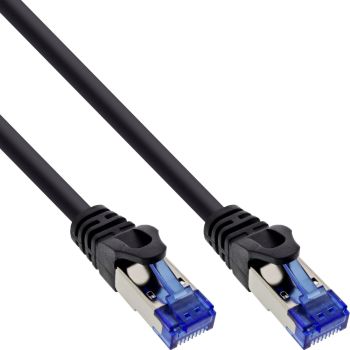

InLine® Patch cable armoured, U/FTP, Cat.6A, black, 1.5m content_copy

The InLine® Cat.6A armoured patch cable is a robust and powerful Ethernet cable designed for demanding network applications and environments. With armouring for increased mechanical strength, it offers reliable performance in various environments. Thanks to its full shielding and the use of high-quality materials, such as an inner jacket made of SUS204 stainless steel and an outer jacket made of highly elastic PVC, it guarantees high resistance. The InLine® patch cable is equipped with a core insulation layer HDPE - a robust and high-density polyethylene material - that offers excellent insulation properties. This patch cable is ideal for network applications where high quality insulation and signal integrity are required. Overall, armoured patch cords provide a robust solution for environments where traditional cables are not sufficient and ensure a reliable network connection even under demanding conditions. The InLine® patch cable is protected from heavy foot traffic, weather, pests and rodents due to its high quality construction. Ideal for shows, concerts, billboards and advertising signs.Cable type: Cat.6A U/FTP
Conductor: 28AWG
Insulation material: HDPEJacket: PVC
Outer diameter: 7.3mm (OD)
Connector type: 8P8C (RJ45) with 50µ" gold-plated contacts
Plug type: Fully shielded crimped plug
Inner jacket: SUS204 (stainless steel)
Outer sheath: Highly elastic PVC
Temperature range: Installation 0 to 50 °C, operation -20 to 60 °C
Bandwidth: 500MHz
Rated voltage: 30V
PoE/PoE+/PoE++: (up to 90W)
Force resistance with short pressure: 2000 N
Force resistance with sustained pressure: 500 N
Electrical properties:
Conductor DC resistance: 28.4 O/100m (maximum)
Impedance: 100 O
Capacitance: 5600pF/100m
Propagation delay: 545ns/100m (maximum)
Delay: 45 ns/100m (maximum)
Certification: Passes Fluke DSX 8000 channel test

Certificates
Compliance certificates	RoHS
Features
Product colour	Black
Cable length	1.5 m
Cable standard	Cat6a
Cable shielding	U/FTP (STP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector 1 gender	Male
Connector 2 gender	Male
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Connector contacts plating	Gold
Jacket material	Polyvinyl chloride (PVC), Stainless steel, High-Density Polyethylene (HDPE)
Cable shape	Round
AWG wire size	28
Frequency	500 MHz
Total Power over Ethernet (PoE) budget	90 W
Country of origin	China
Connector shielding
Power over Ethernet (PoE)
Operational conditions
Operating temperature (T-T)	-20 - 60 °C
Other features
Dimensions (WxDxH)	11 x 1500 x 14 mm
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	175 mm
Package depth	240 mm
Package height	20 mm
Package weight	154 g
Package volume	900 cm³
Package type	Polybag
Technical data
Length	1.50m
Weight	0.154kg
Outer diameter	7.3mm
Signal	Network
Packaging volume	0.0009m³
Side A	RJ45 plug
Operation temperature	-20 to +60°C
Packing	Retail
Special feature	Armoured
Sheath	PVC
Height packaging	0.020m
Variant	gold plated contacts, twisted pair
Article length	150.00cm
Article width	1.10cm
Design	Round cable
Article height	1.40cm
Shielding	U/FTP
Patch cable category	Cat.6A
Side B	RJ45 plug
Length packaging	0.240m
Net weight	0.147kg
Type	Cat.6A
Width packaging	0.175m
Diameter	AWG 28
Colour	Black
Gold plated contacts
PoE/PoE+/PoE++
Technical details
Sustainability compliance
Weight & dimensions
Width	11 mm
Depth	1500 mm
Height	14 mm
Outer diameter	7.3 mm
Weight	147 g

---
