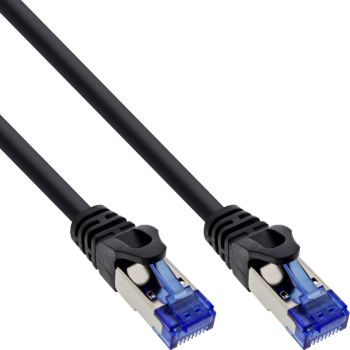

InLine® Patch cable armoured, U/FTP, Cat.6A, black, 5m content_copy

The InLine® Cat.6A armoured patch cable is a robust and powerful Ethernet cable designed for demanding network applications and environments. With armouring for increased mechanical strength, it offers reliable performance in various environments. Thanks to its full shielding and the use of high-quality materials, such as an inner jacket made of SUS204 stainless steel and an outer jacket made of highly elastic PVC, it guarantees high resistance. The InLine® patch cable is equipped with a core insulation layer HDPE - a robust and high-density polyethylene material - that offers excellent insulation properties. This patch cable is ideal for network applications where high quality insulation and signal integrity are required. Overall, armoured patch cords provide a robust solution for environments where traditional cables are not sufficient and ensure a reliable network connection even under demanding conditions. The InLine® patch cable is protected from heavy foot traffic, weather, pests and rodents due to its high quality construction. Ideal for shows, concerts, billboards and advertising signs.Cable type: Cat.6A U/FTP
Conductor: 28AWG
Insulation material: HDPEJacket: PVC
Outer diameter: 7.3mm (OD)
Connector type: 8P8C (RJ45) with 50µ" gold-plated contacts
Plug type: Fully shielded crimped plug
Inner jacket: SUS204 (stainless steel)
Outer sheath: Highly elastic PVC
Temperature range: Installation 0 to 50 °C, operation -20 to 60 °C
Bandwidth: 500MHz
Rated voltage: 30V
PoE/PoE+/PoE++: (up to 90W)
Force resistance with short pressure: 2000 N
Force resistance with sustained pressure: 500 N
Electrical properties:
Conductor DC resistance: 28.4 O/100m (maximum)
Impedance: 100 O
Capacitance: 5600pF/100m
Propagation delay: 545ns/100m (maximum)
Delay: 45 ns/100m (maximum)
Certification: Passes Fluke DSX 8000 channel test

Certificates
Compliance certificates	RoHS
Features
Product colour	Black
Cable length	5 m
Cable standard	Cat6a
Cable shielding	U/FTP (STP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector 1 gender	Male
Connector 2 gender	Male
Connector contacts plating	Gold
Jacket material	High-Density Polyethylene (HDPE), Polyvinyl chloride (PVC), Stainless steel
Cable shape	Round
AWG wire size	28
Frequency	500 MHz
Power over Ethernet (PoE) type supported	PoE+, PoE++ (4PPoE)
Total Power over Ethernet (PoE) budget	90 W
Power over Ethernet (PoE)
Operational conditions
Operating temperature (T-T)	-20 - 60 °C
Other features
Dimensions (WxDxH)	11 x 5000 x 14 mm
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	262 mm
Package depth	344 mm
Package height	25 mm
Package weight	476 g
Package volume	2300 cm³
Package type	Polybag
Technical data
Packaging volume	0.0023m³
Side A	RJ45 plug
Operation temperature	-20 to +60°C
Special feature	Armoured
Article width	1.10cm
Design	Round cable
Packing	Retail
Diameter	AWG 28
Sheath	PVC
Article height	1.40cm
Shielding	U/FTP
Weight	0.476kg
Article length	500.00cm
Length	5m
Height packaging	0.025m
Length packaging	0.344m
Patch cable category	Cat.6A
Side B	RJ45 plug
Variant	gold plated contacts, twisted pair
Width packaging	0.262m
Outer diameter	7.3mm
Net weight	0.456kg
Signal	Network
Type	Cat.6A
Colour	Black
Gold plated contacts
PoE/PoE+/PoE++
Weight & dimensions
Width	11 mm
Depth	5000 mm
Height	14 mm
Outer diameter	7.3 mm
Weight	456 g

---
