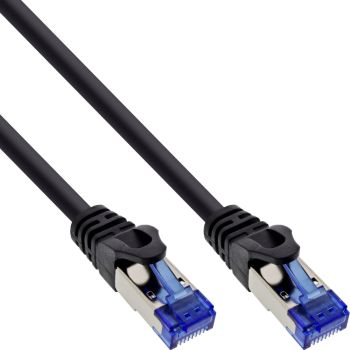

InLine® Patch cable armoured, U/FTP, Cat.6A, black, 10m content_copy

The InLine® Cat.6A armoured patch cable is a robust and powerful Ethernet cable designed for demanding network applications and environments. With armouring for increased mechanical strength, it offers reliable performance in various environments. Thanks to its full shielding and the use of high-quality materials, such as an inner jacket made of SUS204 stainless steel and an outer jacket made of highly elastic PVC, it guarantees high resistance. The InLine® patch cable is equipped with a core insulation layer HDPE - a robust and high-density polyethylene material - that offers excellent insulation properties. This patch cable is ideal for network applications where high quality insulation and signal integrity are required. Overall, armoured patch cords provide a robust solution for environments where traditional cables are not sufficient and ensure a reliable network connection even under demanding conditions. The InLine® patch cable is protected from heavy foot traffic, weather, pests and rodents due to its high quality construction. Ideal for shows, concerts, billboards and advertising signs.Cable type: Cat.6A U/FTP
Conductor: 28AWG
Insulation material: HDPEJacket: PVC
Outer diameter: 7.3mm (OD)
Connector type: 8P8C (RJ45) with 50µ" gold-plated contacts
Plug type: Fully shielded crimped plug
Inner jacket: SUS204 (stainless steel)
Outer sheath: Highly elastic PVC
Temperature range: Installation 0 to 50 °C, operation -20 to 60 °C
Bandwidth: 500MHz
Rated voltage: 30V
PoE/PoE+/PoE++: (up to 90W)
Force resistance with short pressure: 2000 N
Force resistance with sustained pressure: 500 N
Electrical properties:
Conductor DC resistance: 28.4 O/100m (maximum)
Impedance: 100 O
Capacitance: 5600pF/100m
Propagation delay: 545ns/100m (maximum)
Delay: 45 ns/100m (maximum)
Certification: Passes Fluke DSX 8000 channel test

Certificates
Compliance certificates	RoHS
Features
Product colour	Black
Cable length	10 m
Cable standard	Cat6a
Cable shielding	U/FTP (STP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector 1 gender	Male
Connector 2 gender	Male
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Connector contacts plating	Gold
Jacket material	High-Density Polyethylene (HDPE), Polyvinyl chloride (PVC), Stainless steel
Cable shape	Round
AWG wire size	28
Frequency	500 MHz
Total Power over Ethernet (PoE) budget	90 W
Country of origin	China
Connector shielding
Power over Ethernet (PoE)
Operational conditions
Operating temperature (T-T)	-20 - 60 °C
Other features
Dimensions (WxDxH)	11 x 10000 x 14 mm
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	260 mm
Package depth	340 mm
Package height	40 mm
Package weight	922 g
Package volume	3600 cm³
Package type	Polybag
Technical data
Variant	gold plated contacts, twisted pair
Article height	1.40cm
Patch cable category	Cat.6A
Side A	RJ45 plug
Type	Cat.6A
Length	10m
Sheath	PVC
Packing	Retail
Special feature	Armoured
Article length	1000.00cm
Design	Round cable
Length packaging	0.340m
Article width	1.10cm
Signal	Network
Height packaging	0.040m
Net weight	0.890kg
Shielding	U/FTP
Packaging volume	0.0036m³
Operation temperature	-20 to +60°C
Weight	0.922kg
Diameter	AWG 28
Colour	Black
Outer diameter	7.3mm
Width packaging	0.260m
Side B	RJ45 plug
PoE/PoE+/PoE++
Gold plated contacts
Technical details
Sustainability compliance
Weight & dimensions
Width	11 mm
Depth	10000 mm
Height	14 mm
Outer diameter	7.3 mm
Weight	890 g

---
