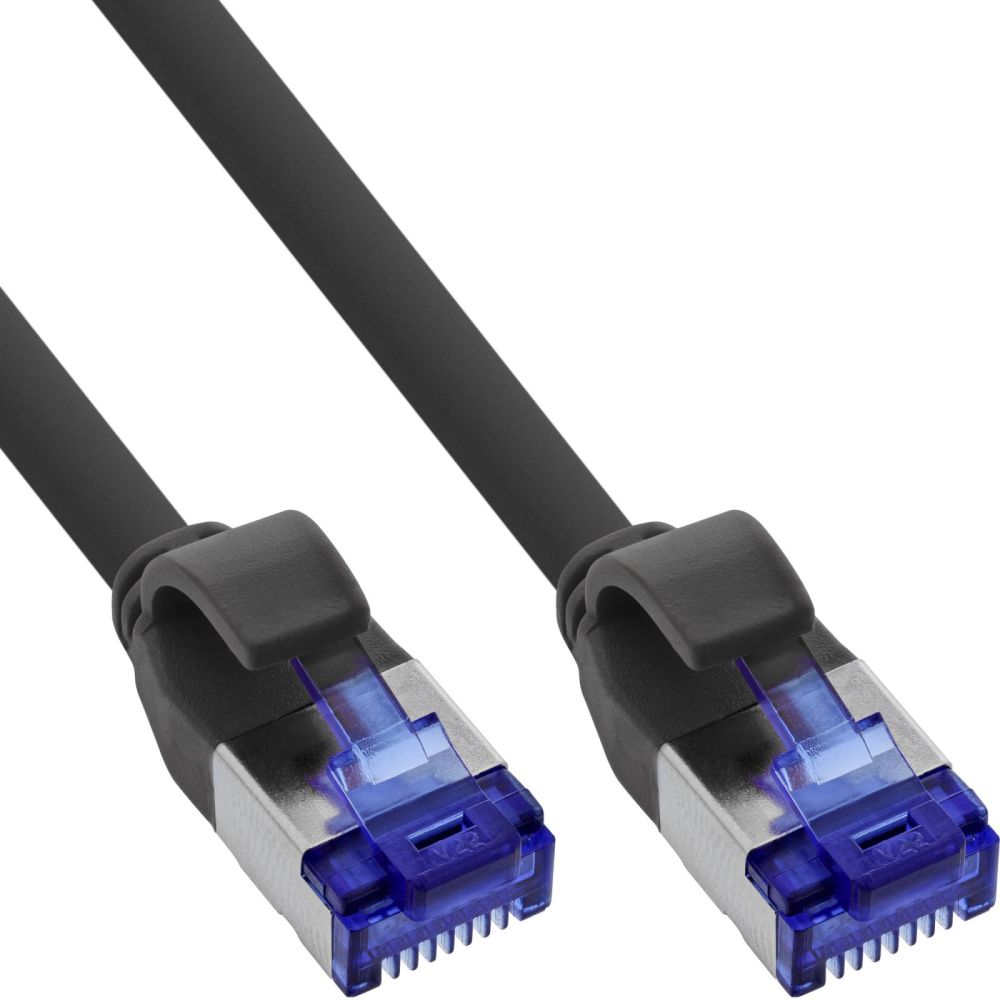

InLine® Patch cable slim, Cat.6A, S/FTP, TPE (LSZH) flexible, PoE, black, 25m content_copy

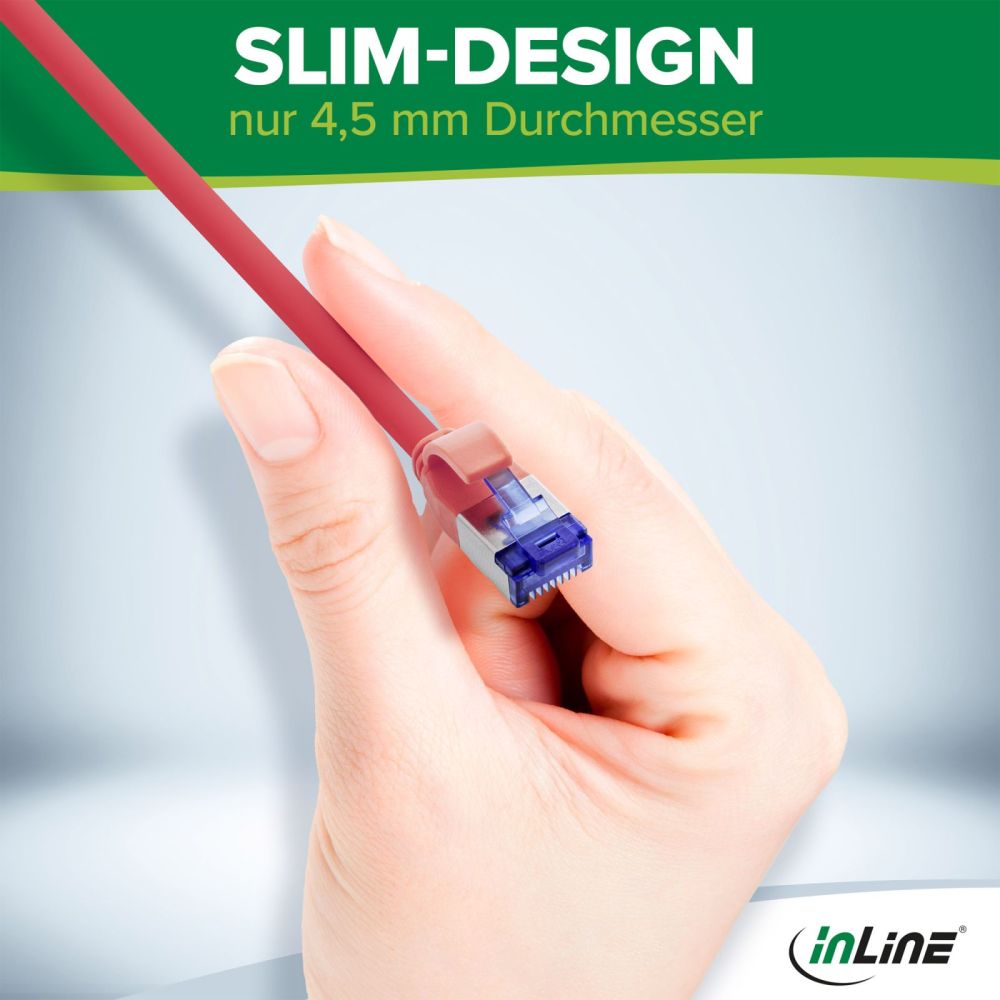

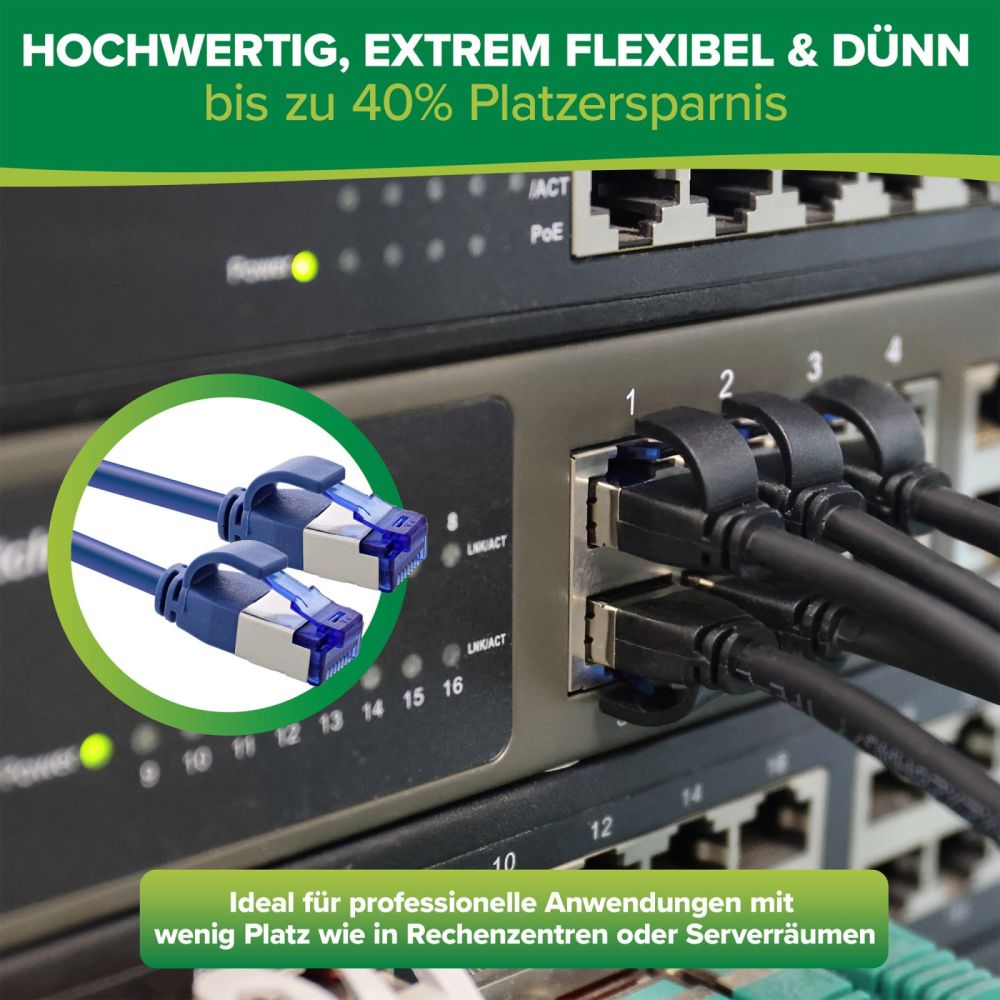

Space-saving, ultra slim design: Perfect for tight spaces, network cabinets or hidden installations behind furniture

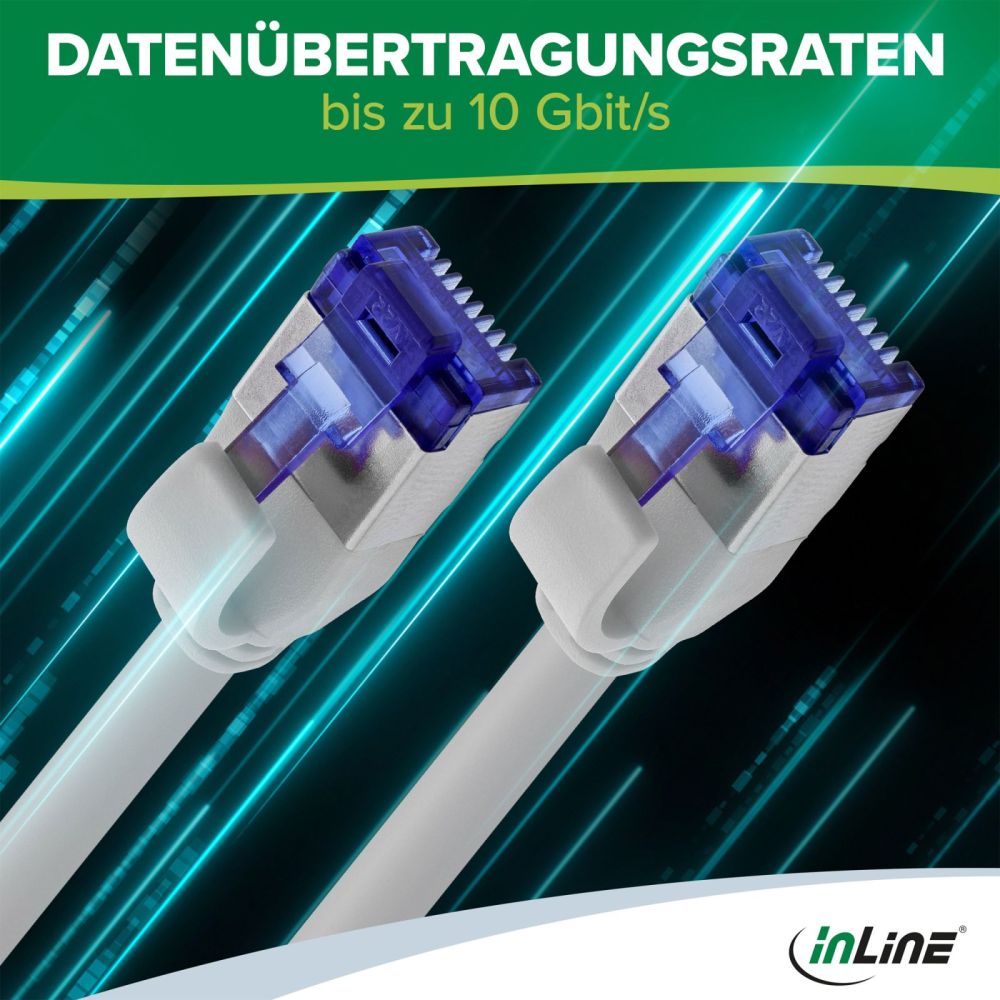

.Maximum performance at a fair price: Full 10 Gbit/s Cat.6A transmission quality with pure copper conductors in various lengths up to 30 meters.
PoE support for versatile applications: Supplies PoE-capable devices such as IP cameras or WLAN routers with power directly via the network cable.

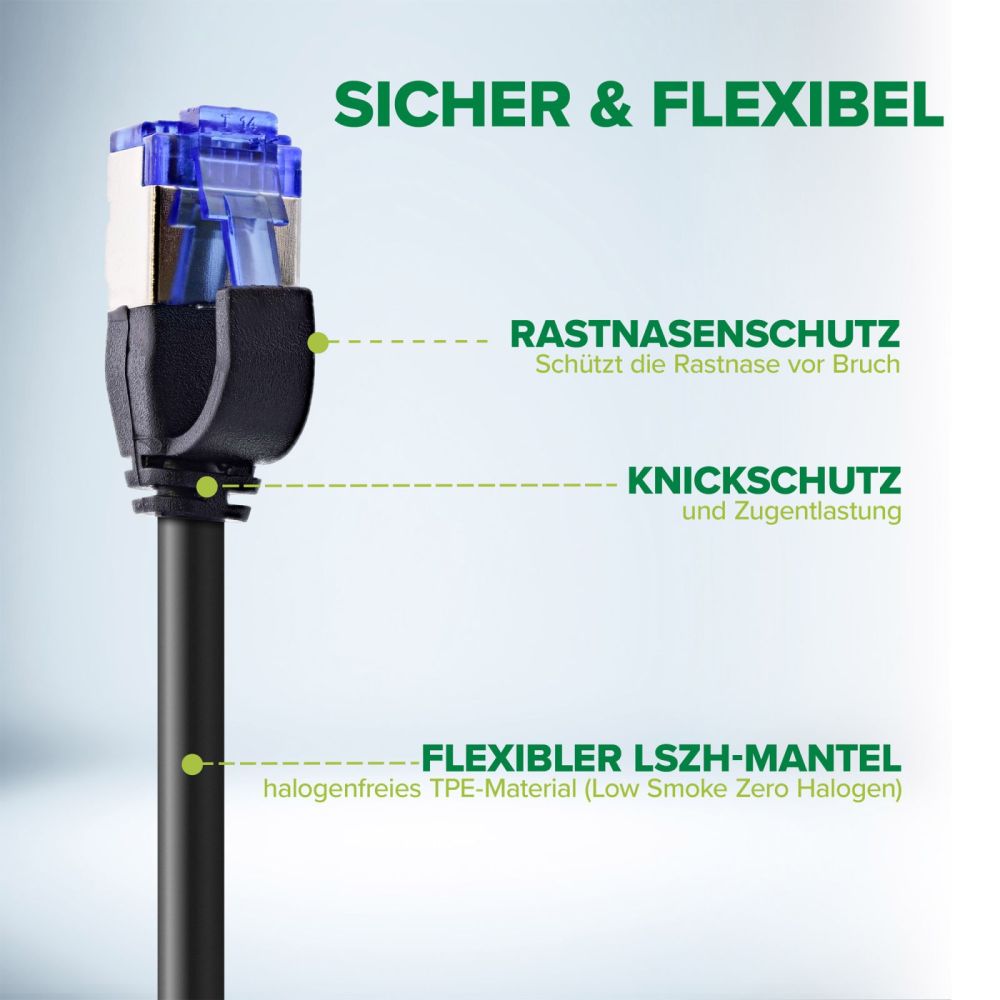

Safe & flexible: The halogen-free, flame-retardant TPE sheath (LSZH) is flexible and minimizes smoke development in the event of fire.

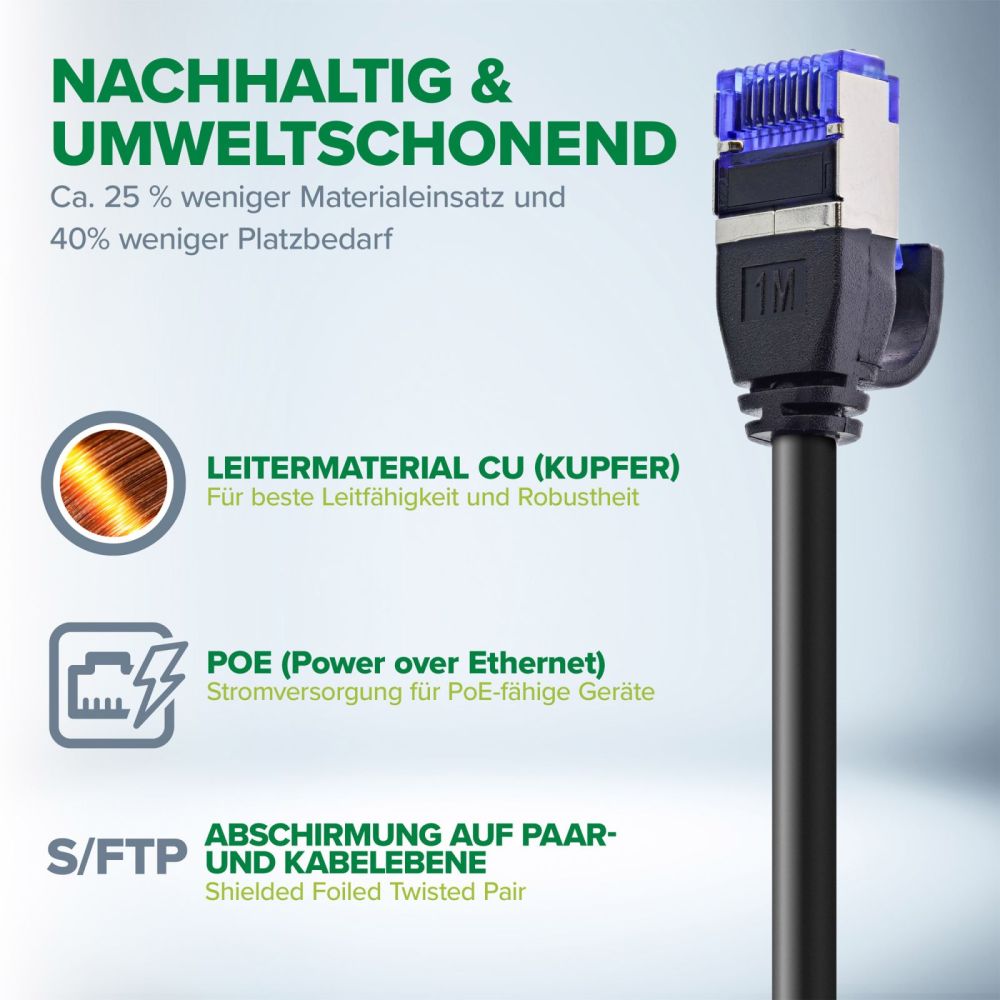

Sustainable & environmentally friendly: Approx. 25% less material used and 40% less space required reduce environmental impact and transportation costs.
With the InLine® patch cable Slim Cat.6A S/FTP you can enjoy fast and reliable network connections with minimal space requirements. Thanks to the ultra-thin AWG28 design, the cable is ideal for home networks, network cabinets or installations in confined spaces.
Despite its slim design, this cable delivers full Cat.6A performance with up to 10 Gbit/s and is compatible with PoE/PoE+/PoE++ (up to 87 watts). This allows you to supply your IP cameras, VoIP telephones or WLAN access points with power directly via the network cable - without the need for an additional power supply unit.
Another highlight: pure copper conductors guarantee optimum signal quality, while the S/FTP shielding prevents interference.
The flexible TPE sheath (LSZH) makes the cable particularly flexible and also ensures increased safety: it is halogen-free, flame-retardant and does not emit any toxic fumes in the event of a fire - perfect for use in living spaces or offices.
Sustainable choice: With around 25% less material used, 40% less space required, reduced transportation costs and low weight and volume, this cable is a more environmentally friendly solution.

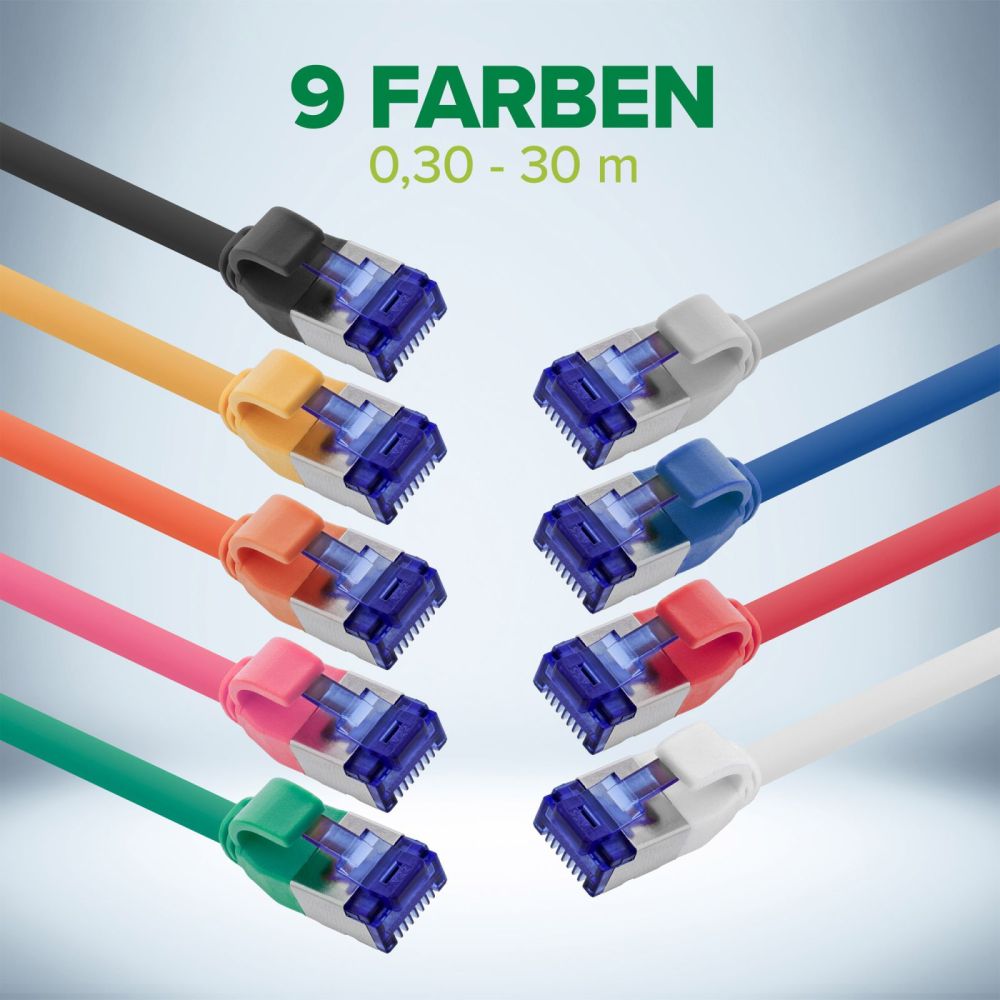

Available in lengths up to 30 meters – perfect for your home or home office!
Additional technical specifications:
Conductor material: Pure copper
Cable construction: S/FTP (pair and overall shielding)
Sheath material: TPE (LSZH – Low Smoke Zero Halogen)
Wire gauge: AWG28
Operating temperature: -20 to +75 °C

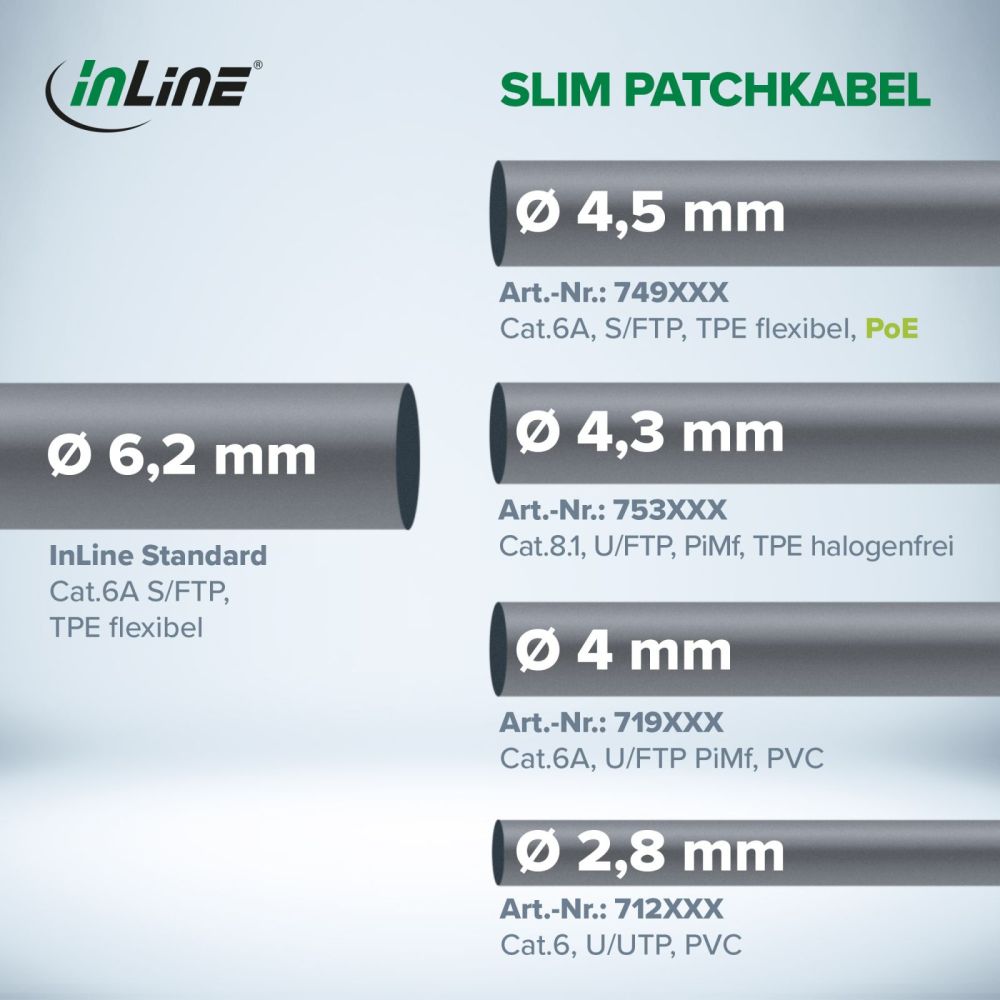

Outlet diameter: 4.5 mm
Assignment: 1:1 according to T568B

Features
Product colour	Black
Cable length	25 m
Cable standard	Cat6a
Cable shielding	S/FTP (S-STP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector 1 gender	Male
Connector 2 gender	Male
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Connector contacts plating	Gold
Jacket material	Low smoke zero halogen (LSZH), Thermoplastic elastomer (TPE)
Cable shape	Round
Conductor material	Copper
AWG wire size	28
Data transfer rate	10000 Mbit/s
Frequency	500 MHz
Power over Ethernet (PoE) type supported	PoE+, PoE++ (4PPoE)
Power over Ethernet (PoE)
Molded cable boot
Operational conditions
Operating temperature (T-T)	-20 - 75 °C
Other features
Dimensions (WxDxH)	15 x 25000 x 12 mm
Packaging data
Package width	260 mm
Package depth	345 mm
Package height	52 mm
Package weight	560 g
Package volume	4700 cm³

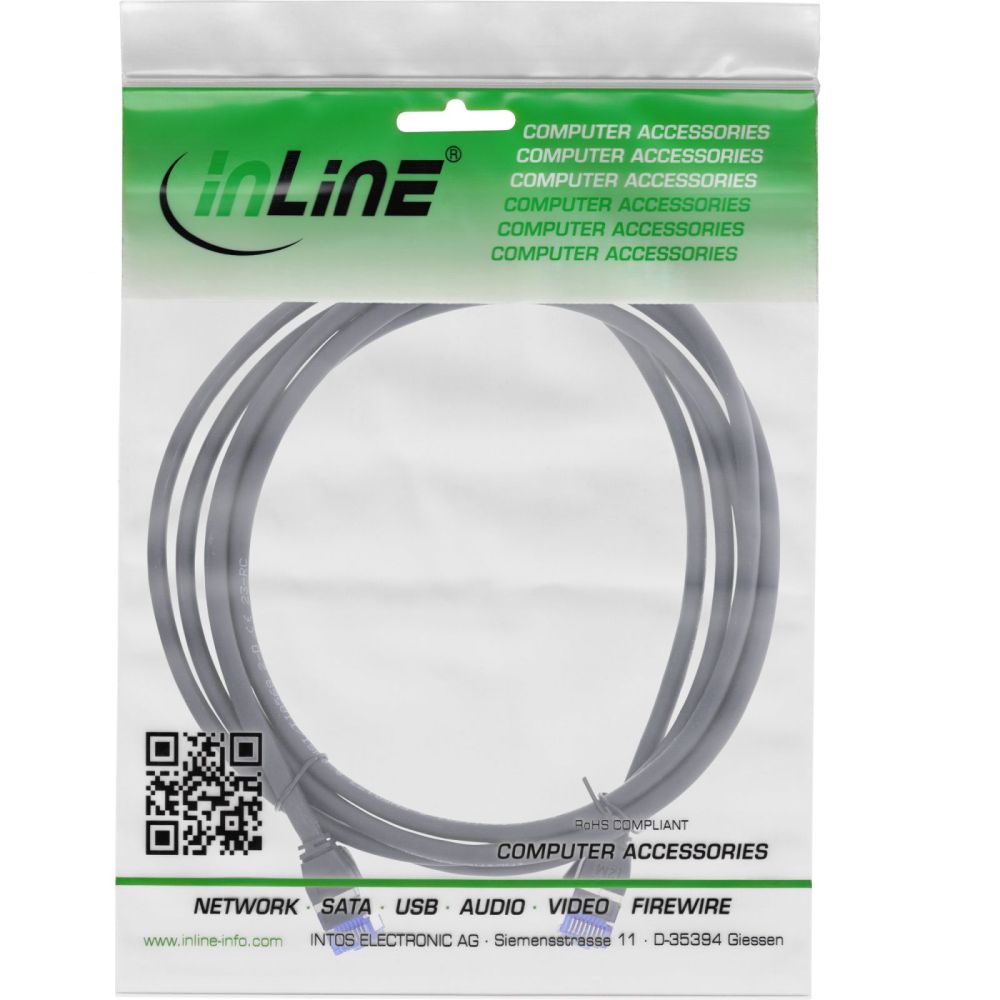

Package type	Polybag
Sustainability
Sustainability certificates	TÜV mark
Technical data
Storage temperature	-20 to +75°C
Max. supported power	90W
Weight	0.560kg
Side B	RJ45 plug straight
Article length	2500.00cm
Data transmission rate	10Gb/s
Type	Cat.6A
Operation temperature	-20 to +75°C
Max. supported PoE standard	802.3bt
Diameter	AWG 28
Packing	Retail
Design	Round cable slim
Net weight	0.540kg
Colour	Black
Patch cable category	Cat.6A
Length packaging	0.345m
Article width	1.50cm
Conductor material	CU (copper)
Wire pairs used for power transmission	All
Assignment	1:1
Sheath	TPE (LSZH)
Max. supported data transfer rate	10Gb/s
Signal	Network
Packaging volume	0.0047m³
Width packaging	0.260m
Shielding	S/FTP (PiMf)
Height packaging	0.052m
Side A	RJ45 plug straight
Article height	1.20cm
Length	25m
UL
Gold plated contacts
PoE/PoE+/PoE++
Technical details
Sustainability compliance
Weight & dimensions
Width	15 mm
Depth	25000 mm
Height	12 mm
Outer diameter	4.5 mm
Weight	540 g

---
