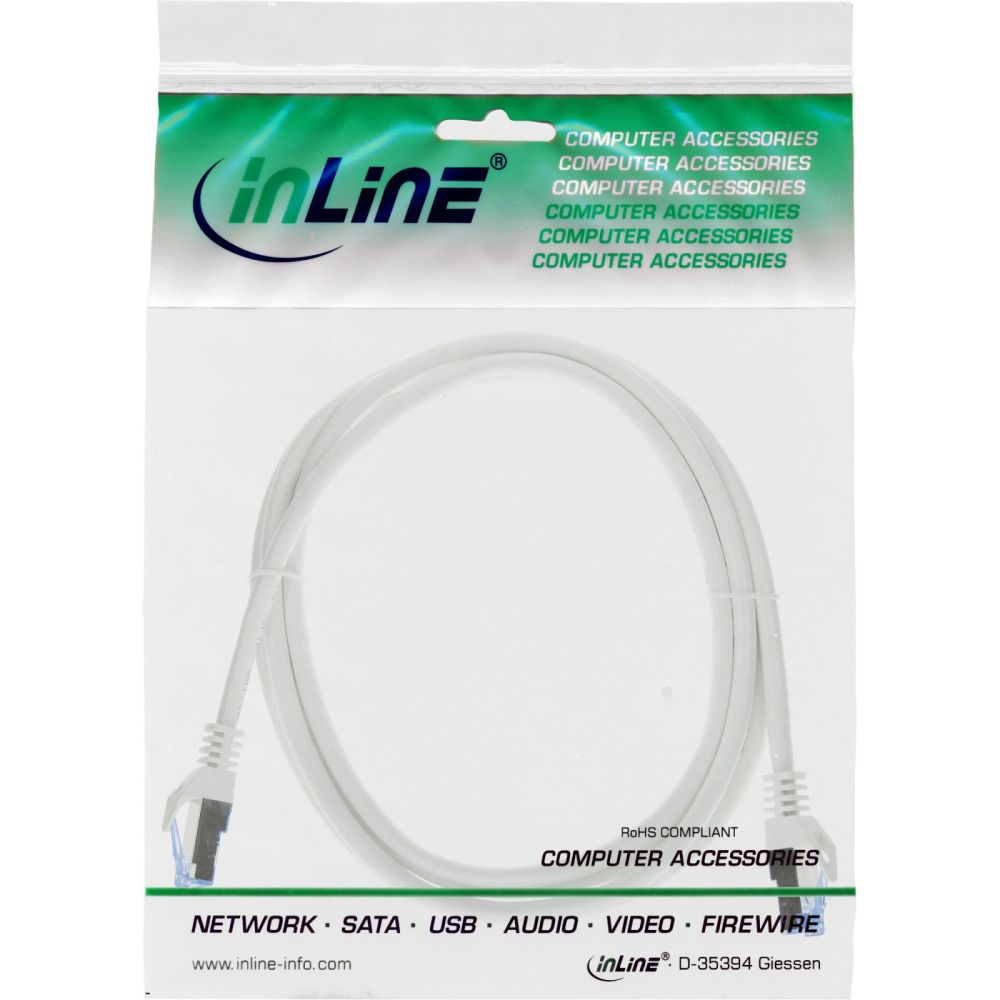

InLine® Patch cable, Cat.6A, S/FTP, TPE flexible, white, 0.3m
|
1,74 EUR |
|||||||||||
|
( 2,07 EUR incl. VAT ) ≈ £1.46 | ≈ $1.95 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |||||||||||
| In Stock: >500 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 22196472 | ||||||||||
| Mfg Part No: | 74833W | ||||||||||
| UPC/EAN: | 4043718333615 | ||||||||||
| Weight: | 0.022 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Inline 74833W:
S/FTP (PiMf) shielding, pairs in metal foil shielded with braid overall screen
Cable with TPE sheath, 500MHz, halogen free
Flexible cable, resistant
provides super small bending radium to till min.10mm
RJ45 plug on both sides, with blue-transparent dyed plastic
Gold plated contacts, 750 cycles min.
4x2xAWG26 full copper strands
Assignment 1:1, according to T568B
Supports POE/POE+
In resealable PE bag with EAN code
| Certificates | |
| Compliance certificates | RoHS |
| Features | |
| Product colour | White |
| Cable length | 0.3 m |
| Cable standard | Cat6a |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Gold |
| Jacket material | Thermoplastic elastomer (TPE) |
| Cable shape | Round |
| Conductor type | Stranded |
| Conductor material | Copper |
| AWG wire size | 26 |
| Data transfer rate | 10000 Mbit/s |
| Bend radius (min) | 1 cm |
| Power over Ethernet (PoE) type supported | PoE+, PoE++ (4PPoE) |
| Connector shielding | |
| Power over Ethernet (PoE) | |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 60 °C |
| Other features | |
| Dimensions (WxDxH) | 10 x 250 x 15 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 100 mm |
| Package depth | 165 mm |
| Package height | 15 mm |
| Package weight | 22 g |
| Package volume | 300 cm³ |
| Package type | Polybag |
| Sustainability | |
| Doesn't contain | Halogen |
| Technical data | |
| Colour | White |
| Side A | RJ45 plug straight |
| Type | Cat.6A |
| Length packaging | 0.165m |
| Wire pairs used for power transmission | The specific method used is determined by the PSE (Power Sourcing Equipment) |
| Diameter | AWG 26 |
| Sheath | TPE |
| Patch cable category | Cat.6A |
| Article length | 25.00cm |
| Length | 0.30m |
| Operation temperature | -10 to +60°C |
| Article width | 1.00cm |
| Weight | 0.022kg |
| Height packaging | 0.015m |
| Side B | RJ45 plug straight |
| Assignment | 1:1 |
| Max. supported power | 90W |
| Design | Round cable |
| Conductor material | CU (copper) |
| Max. supported data transfer rate | 10Gb/s |
| Shielding | S/FTP (PiMf) |
| Packing | Retail |
| Outer diameter | 6,2mm |
| Net weight | 0.019kg |
| Signal | Network |
| NVP value | 77% |
| Packaging volume | 0.0003m³ |
| Article height | 1.50cm |
| Data transmission rate | 10Gb/s |
| Width packaging | 0.100m |
| Max. supported PoE standard | 802.3bt |
| UL | |
| PoE/PoE+/PoE++ | |
| Weight & dimensions | |
| Width | 10 mm |
| Depth | 250 mm |
| Height | 15 mm |
| Outer diameter | 6.2 mm |
| Weight | 19 g |
Questions & answers
What is the delivery time of InLine® Patch cable, Cat.6A, S/FTP, TPE flexible, white, 0.3m?
The article InLine® Patch cable, Cat.6A, S/FTP, TPE flexible, white, 0.3m is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Inline 74833W to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you InLine® Patch cable, Cat.6A, S/FTP, TPE flexible, white, 0.3m always at the best possible price. We can give you a discount of 2% on InLine® Patch cable, Cat.6A, S/FTP, TPE flexible, white, 0.3m if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 50 pieces of InLine® Patch cable, Cat.6A, S/FTP, TPE flexible, white, 0.3m we can offer you a price of 1,71 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
