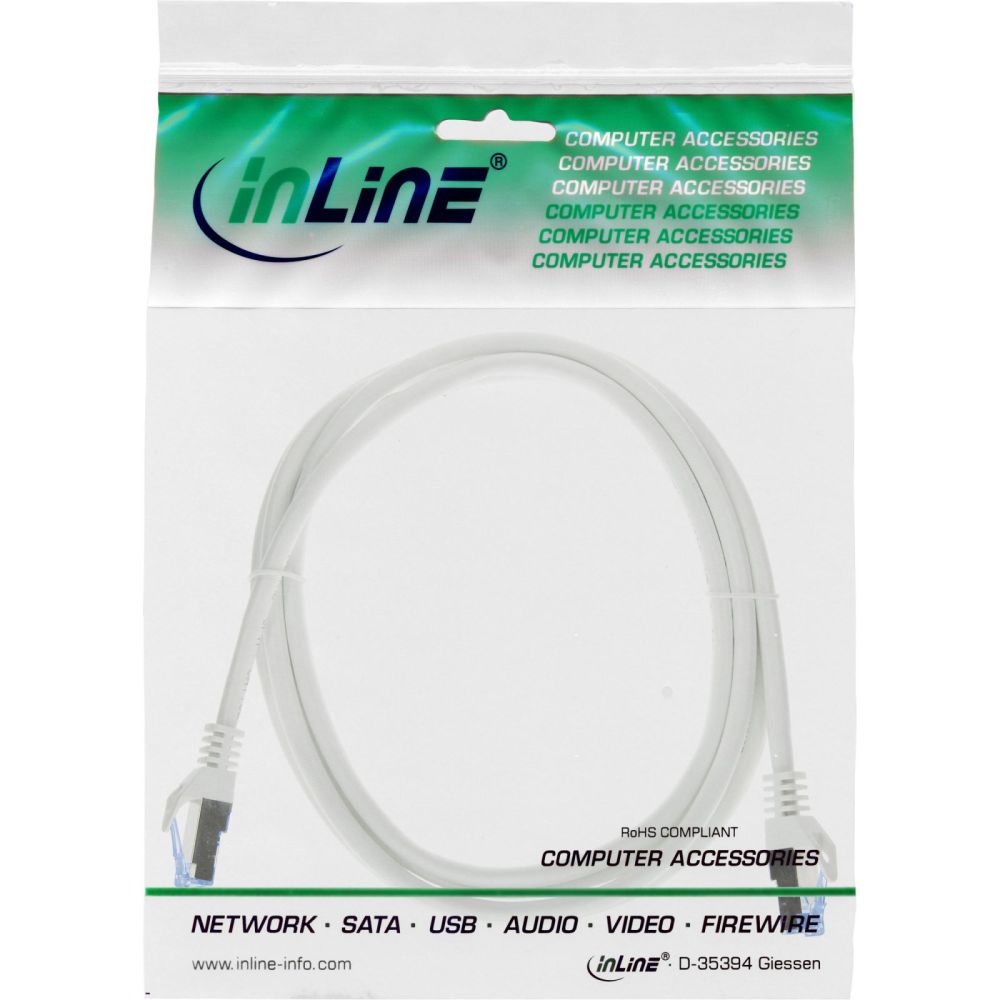

InLine® Patch cable, Cat.6A, S/FTP, TPE flexible, white, 0.25m
|
1,70 EUR |
|||||||||||
|
( 2,02 EUR incl. VAT ) ≈ £1.42 | ≈ $1.90 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |||||||||||
| In Stock: >1000 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 22196466 | ||||||||||
| Mfg Part No: | 74822W | ||||||||||
| UPC/EAN: | 4043718333608 | ||||||||||
| Weight: | 0.02 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Inline 74822W:
S/FTP (PiMf) shielding, pairs in metal foil shielded with braid overall screen
Cable with TPE sheath, 500MHz, halogen free
Flexible cable, resistant
provides super small bending radium to till min.10mm
RJ45 plug on both sides, with blue-transparent dyed plastic
Gold plated contacts, 750 cycles min.
4x2xAWG26 full copper strands
Assignment 1:1, according to T568B
Supports POE/POE+
In resealable PE bag with EAN code
| Certificates | |
| Compliance certificates | RoHS |
| Features | |
| Product colour | White |
| Cable length | 0.25 m |
| Cable standard | Cat6a |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Gold |
| Jacket material | Thermoplastic elastomer (TPE) |
| Cable shape | Round |
| Conductor type | Stranded |
| Conductor material | Copper |
| AWG wire size | 26 |
| Data transfer rate | 10000 Mbit/s |
| Bend radius (min) | 1 cm |
| Power over Ethernet (PoE) type supported | PoE+, PoE++ (4PPoE) |
| Connector shielding | |
| Power over Ethernet (PoE) | |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 60 °C |
| Other features | |
| Dimensions (WxDxH) | 11 x 250 x 15 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 100 mm |
| Package depth | 170 mm |
| Package height | 14 mm |
| Package weight | 20 g |
| Package volume | 300 cm³ |
| Package type | Polybag |
| Sustainability | |
| Doesn't contain | Halogen |
| Technical data | |
| Colour | White |
| Side A | RJ45 plug straight |
| Width packaging | 0.100m |
| Max. supported PoE standard | 802.3bt |
| NVP value | 77% |
| Packaging volume | 0.0003m³ |
| Article height | 1.50cm |
| Data transmission rate | 10Gb/s |
| Assignment | 1:1 |
| Max. supported data transfer rate | 10Gb/s |
| Shielding | S/FTP (PiMf) |
| Height packaging | 0.014m |
| Side B | RJ45 plug straight |
| Type | Cat.6A |
| Length packaging | 0.170m |
| Wire pairs used for power transmission | The specific method used is determined by the PSE (Power Sourcing Equipment) |
| Diameter | AWG 26 |
| Packing | Retail |
| Outer diameter | 6,2mm |
| Net weight | 0.017kg |
| Signal | Network |
| Conductor material | CU (copper) |
| Operation temperature | -10 to +60°C |
| Article width | 1.10cm |
| Weight | 0.020kg |
| Max. supported power | 90W |
| Design | Round cable |
| Sheath | TPE |
| Patch cable category | Cat.6A |
| Article length | 25.00cm |
| PoE/PoE+/PoE++ | |
| UL | |
| Weight & dimensions | |
| Width | 11 mm |
| Depth | 250 mm |
| Height | 15 mm |
| Outer diameter | 6.2 mm |
| Weight | 17 g |
