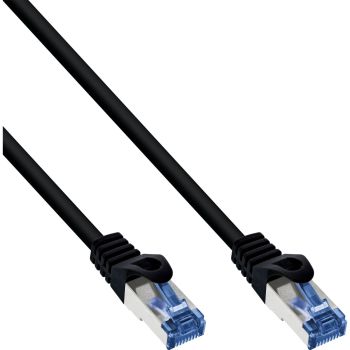

InLine® Patch cable, Cat.6A, S/FTP, PE outdoor, black, 0.5m
|
1,73 EUR |
|||||||||||
|
( 2,06 EUR incl. VAT ) ≈ £1.45 | ≈ $1.94 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |||||||||||
| In Stock: >100 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 22196342 | ||||||||||
| Mfg Part No: | 72855S | ||||||||||
| UPC/EAN: | 4043718259649 | ||||||||||
| Weight: | 0.029 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Inline 72855S:
S/FTP (PiMf) shielding, pairs in metal foil with braiding
cable with PE sheet
Resistant against oils and water, ideal for outdoor usage
RJ45 plug on both sides, with blue-transparent inlay
gold plated contacts, minimum 750 plug cycles
4x2xAWG27 full copper stranded wire
Pin asignment 1:1, following to T568B
POE/POE+ compatible
for temperature range -10°C ... +60°C
in a resealable zip bag with EAN barcode
| Features | |
| Product colour | Black |
| Cable length | 0.5 m |
| Cable standard | Cat6a |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Jacket material | Polyethylene (PE) |
| Conductor type | Stranded |
| Conductor material | Copper |
| Cabling technology | 10GBase-T |
| AWG wire size | 27 |
| Data transfer rate | 10000 Mbit/s |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 60 °C |
| Other features | |
| Dimensions (WxDxH) | 12 x 500 x 15 mm |
| Category | 6 |
| Packaging data | |
| Package width | 115 mm |
| Package depth | 200 mm |
| Package height | 15 mm |
| Package weight | 29 g |
| Package volume | 400 cm³ |
| Sustainability | |
| Doesn't contain | Halogen |
| Technical data | |
| Packing | Retail |
| Outer diameter | 6.5mm |
| Max. supported PoE standard | 802.3bt |
| Design | Round cable |
| Side A | RJ45 plug straight |
| Signal | Network |
| NVP value | 77% |
| Packaging volume | 0.0004m³ |
| Net weight | 0.026kg |
| Sheath | PE, halogen free (LSZH) |
| Max. supported power | 60W |
| Diameter | AWG 27 |
| Type | Cat.6A |
| Length packaging | 0.200m |
| Max. supported data transfer rate | 10Gb/s |
| Shielding | S/FTP (PiMf) |
| Conductor material | CU (copper) |
| Article height | 1.50cm |
| Data transmission rate | 10Gb/s |
| Article length | 50.00cm |
| Colour | Black |
| Patch cable category | Cat.6A |
| Height packaging | 0.015m |
| Side B | RJ45 plug straight |
| Wire pairs used for power transmission | The specific method used is determined by the PSE (Power Sourcing Equipment) |
| Assignment | 1:1 |
| Width packaging | 0.115m |
| Article width | 1.20cm |
| Weight | 0.029kg |
| UL | |
| PoE/PoE+/PoE++ | |
| Weight & dimensions | |
| Width | 12 mm |
| Depth | 500 mm |
| Height | 15 mm |
| Weight | 26 g |
Questions & answers
What is the delivery time of InLine® Patch cable, Cat.6A, S/FTP, PE outdoor, black, 0.5m?
The article InLine® Patch cable, Cat.6A, S/FTP, PE outdoor, black, 0.5m is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Inline 72855S to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you InLine® Patch cable, Cat.6A, S/FTP, PE outdoor, black, 0.5m always at the best possible price. We can give you a discount of 2% on InLine® Patch cable, Cat.6A, S/FTP, PE outdoor, black, 0.5m if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 50 pieces of InLine® Patch cable, Cat.6A, S/FTP, PE outdoor, black, 0.5m we can offer you a price of 1,67 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
