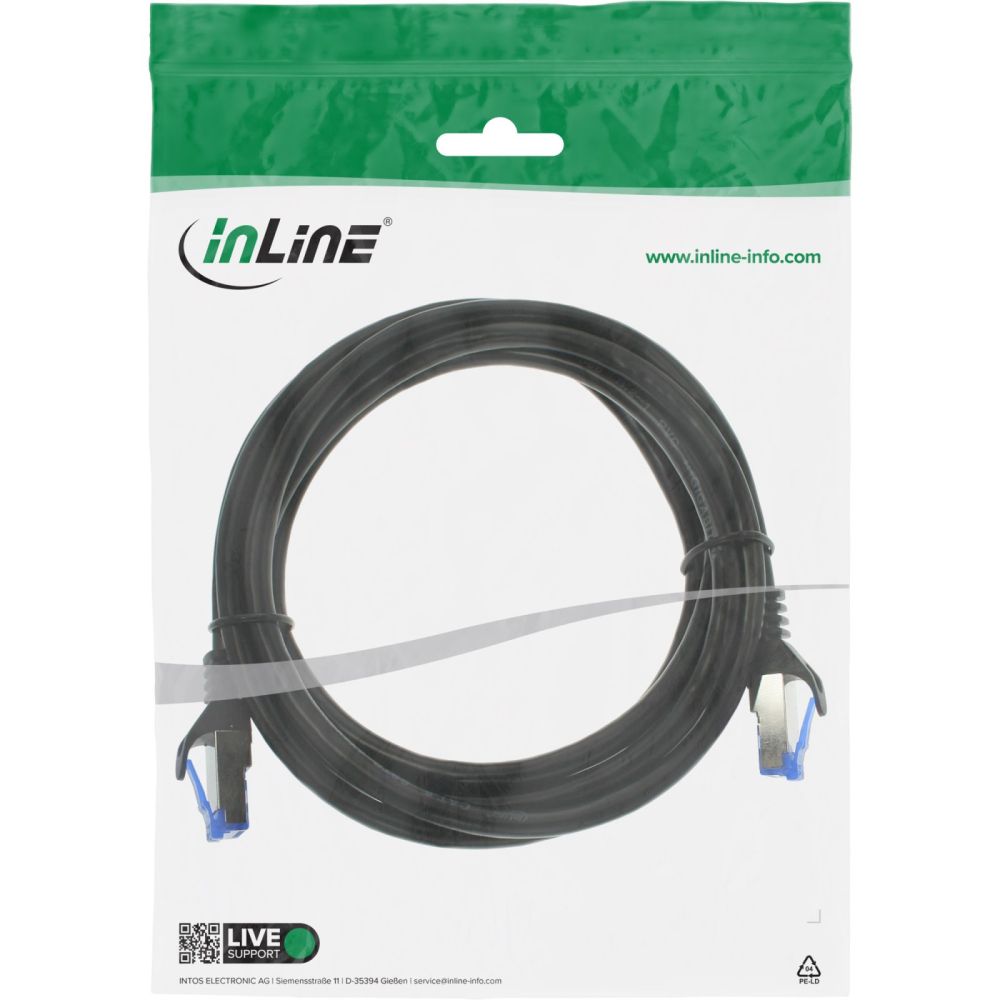

InLine® Patch cable, Cat.6A, S/FTP, PE outdoor, black, 1m
|
2,25 EUR |
|||||||||||
|
( 2,68 EUR incl. VAT ) ≈ £1.88 | ≈ $2.52 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |||||||||||
| In Stock: >100 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 22196600 | ||||||||||
| Mfg Part No: | 72801S | ||||||||||
| UPC/EAN: | 4043718259588 | ||||||||||
| Weight: | 0.056 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Inline 72801S:
S/FTP (PiMf) shielding, pairs in metal foil with braiding
cable with PE sheet
Resistant against oils and water, ideal for outdoor usage
RJ45 plug on both sides, with blue-transparent inlay
gold plated contacts, minimum 750 plug cycles
4x2xAWG27 full copper stranded wire
Pin asignment 1:1, following to T568B
POE/POE+ compatible
for temperature range -10°C ... +60°C
in a resealable zip bag with EAN barcode
| Features | |
| Product colour | Black |
| Cable length | 1 m |
| Cable standard | Cat6a |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Jacket material | Polyethylene (PE) |
| Conductor type | Stranded |
| Conductor material | Copper |
| Cabling technology | 10GBase-T |
| AWG wire size | 27 |
| Data transfer rate | 10000 Mbit/s |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 60 °C |
| Other features | |
| Dimensions (WxDxH) | 12 x 1000 x 15 mm |
| Category | 6 |
| Packaging data | |
| Package width | 155 mm |
| Package depth | 160 mm |
| Package height | 20 mm |
| Package weight | 56 g |
| Package volume | 500 cm³ |
| Sustainability | |
| Doesn't contain | Halogen |
| Technical data | |
| Type | Cat.6A |
| Sheath | PE, halogen free (LSZH) |
| Max. supported power | 60W |
| Conductor material | CU (copper) |
| Article length | 100.00cm |
| Data transmission rate | 10Gb/s |
| Packing | Retail |
| Length packaging | 0.160m |
| Max. supported data transfer rate | 10Gb/s |
| Shielding | S/FTP (PiMf) |
| Side A | RJ45 plug straight |
| Net weight | 0.053kg |
| Signal | Network |
| NVP value | 77% |
| Patch cable category | Cat.6A |
| Width packaging | 0.155m |
| Article width | 1.20cm |
| Diameter | AWG 27 |
| Side B | RJ45 plug straight |
| Wire pairs used for power transmission | The specific method used is determined by the PSE (Power Sourcing Equipment) |
| Height packaging | 0.020m |
| Outer diameter | 6.5mm |
| Max. supported PoE standard | 802.3bt |
| Design | Round cable |
| Assignment | 1:1 |
| Article height | 1.50cm |
| Weight | 0.056kg |
| Packaging volume | 0.0005m³ |
| Colour | Black |
| UL | |
| PoE/PoE+/PoE++ | |
| Weight & dimensions | |
| Width | 12 mm |
| Depth | 1000 mm |
| Height | 15 mm |
| Weight | 53 g |
