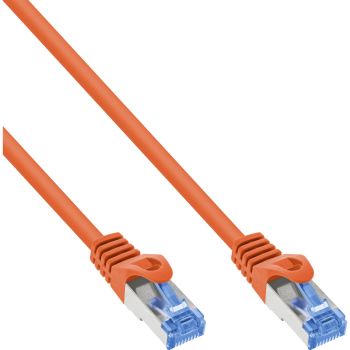

InLine® patch cable, Cat.6A, S/FTP, TPE (LSZH), CCA, orange, 3m
|
3,02 EUR |
|||||||||||
|
( 3,59 EUR incl. VAT ) ≈ £2.53 | ≈ $3.38 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |||||||||||
| In Stock: >100 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 22196606 | ||||||||||
| Mfg Part No: | 72603O | ||||||||||
| UPC/EAN: | 4043718337118 | ||||||||||
| Weight: | 0.106 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Inline 72603O:
Fast & stable internet connection: Supports up to 10 Gbps for smooth streaming, online gaming & large file transfers.
PoE-compatible for versatile applications: Supplies PoE-capable devices such as surveillance cameras and routers with power directly via the network cable.
Maximum security & flexibility: The TPE sheath (LSZH) is extremely flexible, halogen-free and reduces smoke development in the event of fire. Ideal for use in living areas.
Perfect for home networks & home office: Ideal for routers, switches, smart TVs, consoles and more.
The InLine® patch cable Cat.6A S/FTP offers a first-class combination of high quality and attractive price. The use of copper-clad aluminum, a CCA alloy with 40% copper content, achieves improved conductivity, which enables signal stability, fast transmissions of up to 10 Gbit/s and a bandwidth of 500 MHz - ideal for streaming in 4K/8K, online gaming, cloud services and fast working in the home office.
Thanks to the double shielding (S/FTP), your connection remains interference-free, even if there are many electronic devices nearby.
A special highlight is the highly flexible TPE sheath (LSZH):
✔ Flame-retardant & halogen-free, for greater safety in your home.
✔ Particularly flexible and bendable - ideal for narrow installation routes behind furniture, in cable ducts and hidden installations.
Please note: This cable variant is available up to 10 meters, as CCA material loses signal quality over longer distances. For longer distances, we recommend our high-quality copper patch cables.
Additional technical specifications:
Conductor material: High-quality CCA alloy (40% copper)
Sheath material: TPE (LSZH – flame retardant, halogen-free, flexible)
Operating temperature: -20 to +75 °C
Outlet diameter: 6.0 mm
Population: 1:1 according to T568B
PoE support: Compatible with PoE/PoE+/PoE++
| Certificates | |
| Compliance certificates | CE, REACH, RoHS |
| Features | |
| Product colour | Orange |
| Cable length | 3 m |
| Cable standard | Cat6a |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Gold |
| Jacket material | Low smoke zero halogen (LSZH) |
| Cable shape | Round |
| Conductor material | Copper-Clad Aluminium (CCA) |
| AWG wire size | 26 |
| Data transfer rate | 10000 Mbit/s |
| Power over Ethernet (PoE) type supported | PoE+, PoE++ (4PPoE) |
| Power over Ethernet (PoE) | |
| Molded cable boot | |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 75 °C |
| Other features | |
| Dimensions (WxDxH) | 12 x 3000 x 17 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 1200 mm |
| Package depth | 175 mm |
| Package height | 25 mm |
| Package weight | 106 g |
| Package volume | 700 cm³ |
| Package type | Polybag |
| Technical data | |
| Packing | Retail |
| Operation temperature | -20 to +75°C |
| Signal | Network |
| Patch cable category | Cat.6A |
| Article height | 1.70cm |
| Assignment | 1:1 |
| Wire pairs used for power transmission | All |
| Shielding | S/FTP (PiMf) |
| Length packaging | 0.175m |
| Max. supported power | 90W |
| Type | Cat.6A |
| Sheath | TPE (LSZH) |
| Max. supported PoE standard | 802.3bt |
| Diameter | AWG 26 |
| Colour | Orange |
| Side B | RJ45 plug straight |
| Net weight | 0.094kg |
| Weight | 0.106kg |
| Height packaging | 0.025m |
| Outer diameter | 6.0mm |
| Conductor material | CCA (copper/aluminium) |
| Max. supported data transfer rate | 10Gb/s |
| Design | Round cable |
| Packaging volume | 0.0007m³ |
| Article width | 1.20cm |
| Side A | RJ45 plug straight |
| Width packaging | 1.200m |
| Article length | 300.00cm |
| Data transmission rate | 10Gb/s |
| UL | |
| PoE/PoE+/PoE++ | |
| Gold plated contacts | |
| Weight & dimensions | |
| Width | 12 mm |
| Depth | 3000 mm |
| Height | 17 mm |
| Outer diameter | 5 mm |
| Weight | 94 g |
