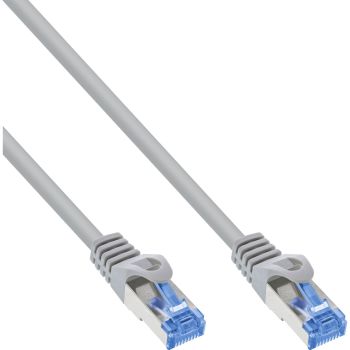

Inline 72603
Patchkabel SF/FTP Cat6A grau 3m content_copy

Cost-efficient network solution with high-quality CCA alloy: 40% copper content for improved conductivity and reduced signal loss.
Powerful for modern networks: Supports up to 10 Gbit/s and a bandwidth of 500 MHz for stable connections.
4PPOE support for maximum efficiency: PoE, PoE+ and PoE++ with up to 90 watts of power for network devices such as cameras, access points or VoIP telephones.
Flexible, flame-retardant cable sheath: The TPE sheath (LSZH) offers high flexibility for tight installation conditions and reduces smoke development in the event of fire.
Safe & interference-free connection: S/FTP shielding (pair and overall shielding) reliably protects against electromagnetic interference.
The InLine® Cat.6A S/FTP patch cable is the perfect choice for network infrastructures that require high performance at an economical price. Thanks to a high-quality CCA alloy of copper-clad aluminum conductors with 40% copper content, it offers improved conductivity compared to conventional CCA cables. This reduces electrical resistance and enables stable transmission at up to 10 Gbit/s over distances of up to 10 meters.
Another advantage: the cable is 4PPOE-capable and supports PoE, PoE+ and PoE++ with up to 90 watts of power. This means that IP cameras, VoIP telephones and access points can be efficiently supplied with power via the network cable - a cost-effective solution for professional applications.The double shielding (S/FTP) minimizes interference and ensures a stable connection even in demanding environments such as data centers, industrial halls or office buildings. The halogen-free TPE jacket (LSZH) is not only flame-retardant, but also particularly flexible – ideal for installations with limited space.
Please note: Due to the material properties of CCA, this cable is limited to lengths of up to 10 meters. For longer distances, we recommend our copper patch cables, which guarantee consistent signal quality.
Additional technical specifications:
Conductor material: High-quality CCA alloy made from copper-clad aluminum conductors (40% copper)
Sheath material: TPE (LSZH – flame retardant, halogen-free, flexible)
Operating temperature: -20 to +75 °C
Outlet diameter: 6.0 mm
Population: 1:1 according to T568B
PoE support: 4PPOE, compatible with PoE/PoE+/PoE++ (up to 90 W)

Certificates
Compliance certificates	CE, REACH, RoHS
Features
Product colour	Grey
Cable length	3 m
Cable standard	Cat6a
Cable shielding	S/FTP (S-STP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector 1 gender	Male
Connector 2 gender	Male
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Connector contacts plating	Gold
Jacket material	Low smoke zero halogen (LSZH)
Cable shape	Round
Conductor material	Copper-Clad Aluminium (CCA)
AWG wire size	26
Data transfer rate	10000 Mbit/s
Power over Ethernet (PoE) type supported	PoE+, PoE++ (4PPoE)
Power over Ethernet (PoE)
Molded cable boot
Operational conditions
Operating temperature (T-T)	-20 - 75 °C
Other features
Dimensions (WxDxH)	12 x 3000 x 17 mm
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	200 mm
Package depth	175 mm
Package height	25 mm
Package weight	106 g
Package volume	700 cm³
Package type	Polybag
Technical data
Colour	Grey
Side B	RJ45 plug straight
Net weight	0.094kg
Weight	0.106kg
Assignment	1:1
Wire pairs used for power transmission	All
Shielding	S/FTP (PiMf)
Side A	RJ45 plug straight
Width packaging	1.200m
Article length	300.00cm
Data transmission rate	10Gb/s
Packaging volume	0.0007m³
Article width	1.20cm
Length packaging	0.175m
Max. supported power	90W
Type	Cat.6A
Sheath	TPE (LSZH)
Max. supported PoE standard	802.3bt
Diameter	AWG 26
Conductor material	CCA (copper/aluminium)
Max. supported data transfer rate	10Gb/s
Design	Round cable
Patch cable category	Cat.6A
Article height	1.70cm
Length	3m
Operation temperature	-20 to +75°C
Signal	Network
Height packaging	0.025m
Outer diameter	6.0mm
UL
PoE/PoE+/PoE++
Weight & dimensions
Width	12 mm
Depth	3000 mm
Height	17 mm
Outer diameter	5 mm
Weight	94 g

---
