InLine® patch cable, Cat.6A, S/FTP, TPE (LSZH), CCA, green, 10m content_copy

High-quality & inexpensive solution for home networks: 40% copper content in the CCA alloy for improved signal quality at a low price.
Fast & stable internet connection: Supports up to 10 Gbps for smooth streaming, online gaming & large file transfers.
PoE-compatible for versatile applications: Supplies PoE-capable devices such as surveillance cameras and routers with power directly via the network cable.
Maximum security & flexibility: The TPE sheath (LSZH) is extremely flexible, halogen-free and reduces smoke development in the event of fire. Ideal for use in living areas.
Perfect for home networks & home office: Ideal for routers, switches, smart TVs, consoles and more.

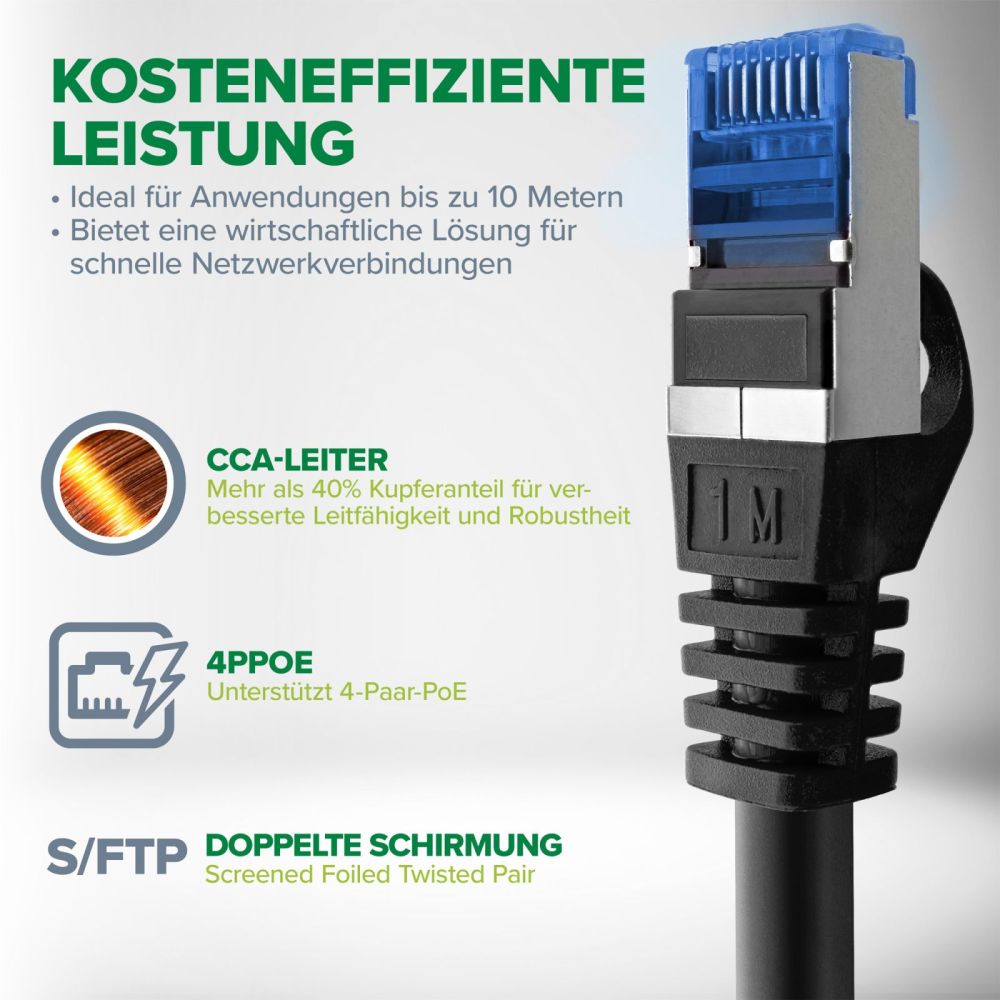

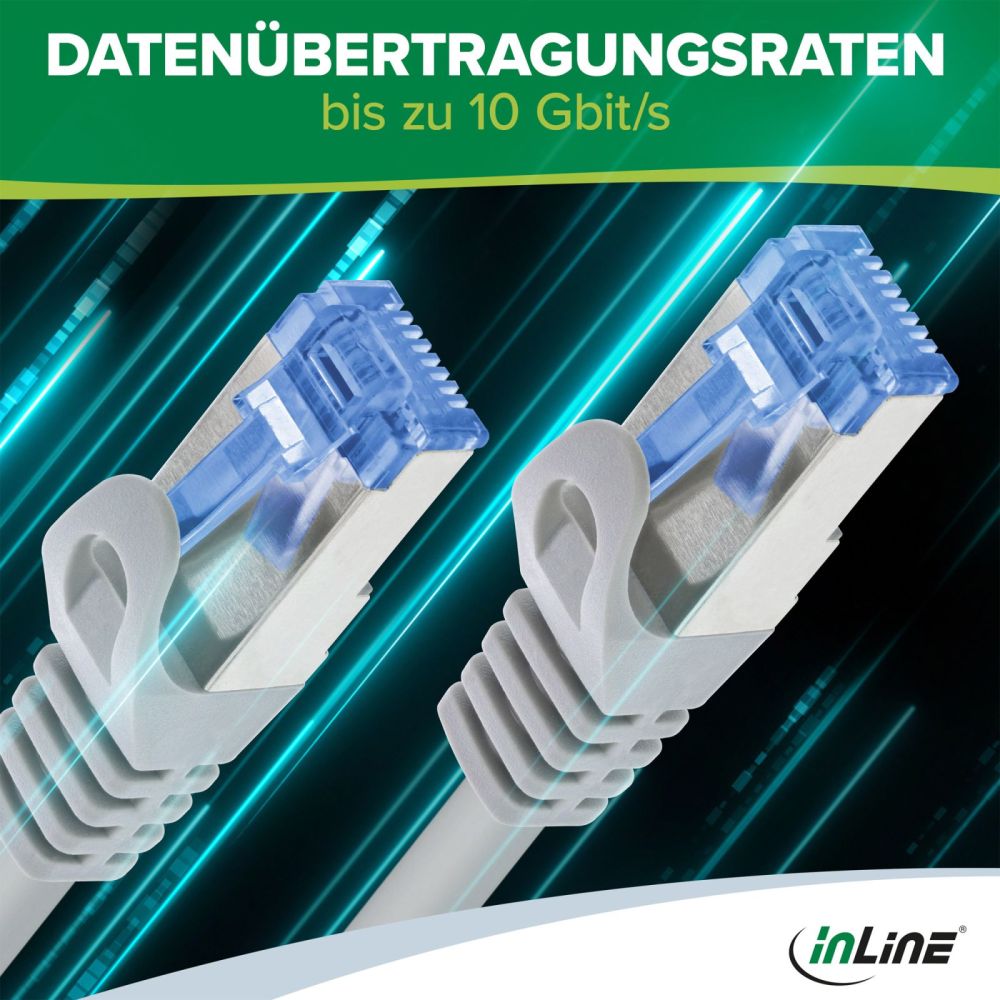

The InLine® patch cable Cat.6A S/FTP offers a first-class combination of high quality and attractive price. The use of copper-clad aluminum, a CCA alloy with 40% copper content, achieves improved conductivity, which enables signal stability, fast transmissions of up to 10 Gbit/s and a bandwidth of 500 MHz - ideal for streaming in 4K/8K, online gaming, cloud services and fast working in the home office.
Thanks to the double shielding (S/FTP), your connection remains interference-free, even if there are many electronic devices nearby.

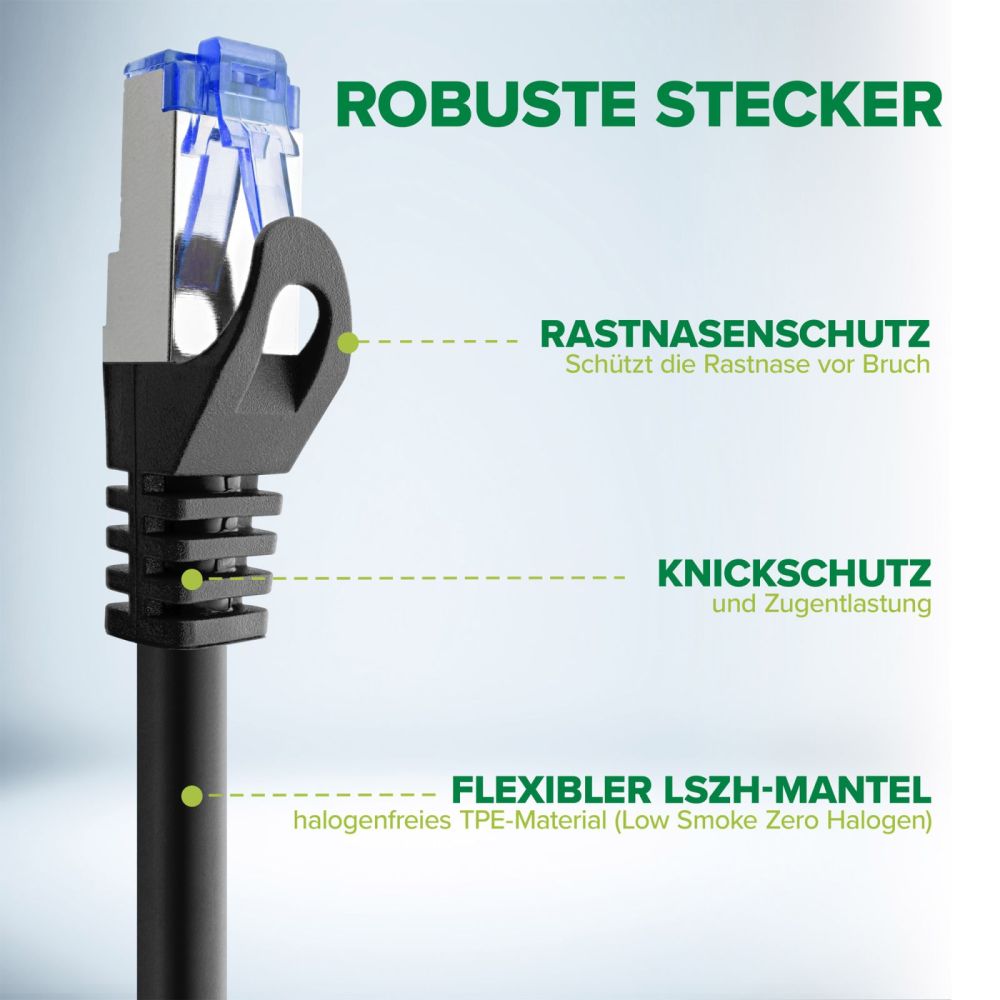

A special highlight is the highly flexible TPE sheath (LSZH):
✔ Flame-retardant & halogen-free, for greater safety in your home.
✔ Particularly flexible and bendable - ideal for narrow installation routes behind furniture, in cable ducts and hidden installations.
Please note: This cable variant is available up to 10 meters, as CCA material loses signal quality over longer distances. For longer distances, we recommend our high-quality copper patch cables.
Additional technical specifications:
Conductor material: High-quality CCA alloy (40% copper)
Sheath material: TPE (LSZH – flame retardant, halogen-free, flexible)
Operating temperature: -20 to +75 °C
Outlet diameter: 6.0 mm
Population: 1:1 according to T568B
PoE support: Compatible with PoE/PoE+/PoE++

Certificates
Compliance certificates	CE, REACH, RoHS
Features
Product colour	Green
Cable length	10 m
Cable standard	Cat6a
Cable shielding	S/FTP (S-STP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector 1 gender	Male
Connector 2 gender	Male
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Connector contacts plating	Gold
Jacket material	Low smoke zero halogen (LSZH)
Cable shape	Round
Conductor material	Copper-Clad Aluminium (CCA)
AWG wire size	26
Data transfer rate	10000 Mbit/s
Power over Ethernet (PoE) type supported	PoE+, PoE++ (4PPoE)
Power over Ethernet (PoE)
Molded cable boot
Operational conditions
Operating temperature (T-T)	-20 - 75 °C
Other features
Dimensions (WxDxH)	12 x 10000 x 16 mm
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	1200 mm
Package depth	170 mm
Package height	50 mm
Package weight	288 g
Package volume	1500 cm³
Package type	Polybag
Technical data
Packing	Retail
Outer diameter	6.0mm
Length	10m
Patch cable category	Cat.6A
Article height	1.60cm
Packaging volume	0.0015m³
Article width	1.20cm
Shielding	S/FTP (PiMf)
Colour	Green
Side B	RJ45 plug straight
Net weight	0.276kg
Weight	0.288kg
Side A	RJ45 plug straight
Width packaging	1.200m
Article length	1000.00cm
Type	Cat.6A
Sheath	TPE (LSZH)
Max. supported PoE standard	802.3bt
Signal	Network
Length packaging	0.170m
Max. supported power	90W
Diameter	AWG 26
Height packaging	0.050m
Operation temperature	-20 to +75°C
Conductor material	CCA (copper/aluminium)
Max. supported data transfer rate	10Gb/s
Assignment	1:1
Wire pairs used for power transmission	All
Design	Round cable
Data transmission rate	10Gb/s
Gold plated contacts
UL
PoE/PoE+/PoE++
Weight & dimensions
Width	12 mm
Depth	10000 mm
Height	16 mm
Outer diameter	5 mm
Weight	276 g

---
