InLine® Slim patch cable, U/FTP PiMf, Cat.6A, white, 0.3 m content_copy

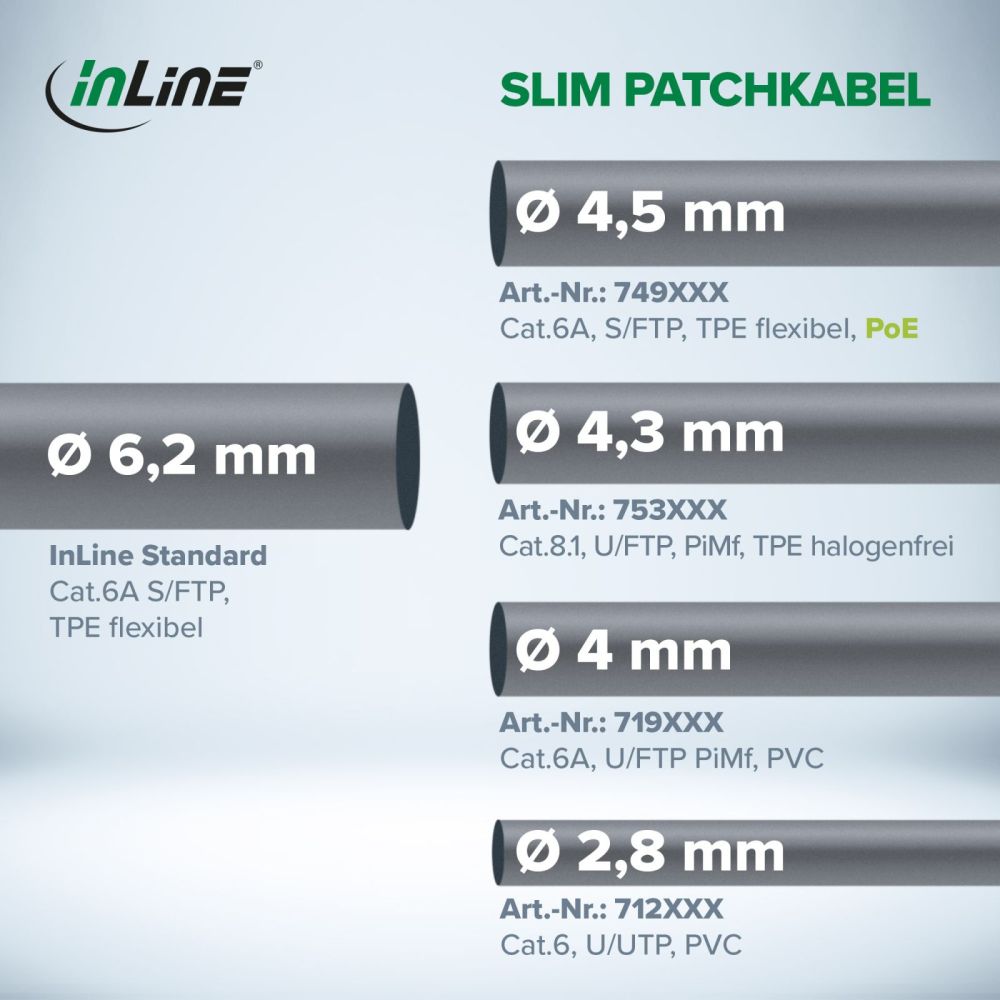

Slim Cat.6A network cable for flexible RJ45 connectionsSpace-saving installation: With an outer diameter of just 4 mm, this slim LAN cable can be neatly routed through cable ducts and in congested areas, even where space is limited.
Sturdy, shielded connection: The U/FTP construction shields each twisted pair of wires separately with metal foil and supports reliable Cat.6A data transmission up to 500 MHz.
Flexible cable management: The extra-thin PVC sheath makes it easy to route the cable flexibly behind furniture, under desks and in the network cabinet without taking up unnecessary space.
Secure connection: Two moulded RJ45 connectors with latch protection make handling easier and protect the locking mechanism when plugging in, unplugging and rearranging the network connection.
Robust conductor construction: Four twisted pairs of solid copper strands and the 1:1 pinout in accordance with EIA/TIA-568B form the technical basis for structured Ethernet connections in compatible networks.
The InLine cable is suitable for structured connections between patch panels, switches, routers, network sockets and compatible end devices. It can be used at workstations, in technical areas and in central network distribution points.
In new installations, it supports direct device connections and the interconnection of various network components. In existing installations, it can be used for expansions, the replacement of individual devices and the adaptation of connection routes.
The pre-terminated cable is designed for compatible network connectors. This allows local connections to be set up in an organised manner and existing installations to be expanded step by step.
Round cable construction
4 twisted pairs
Solid copper strands
Conductor configuration: 4x2x32 AWG/7

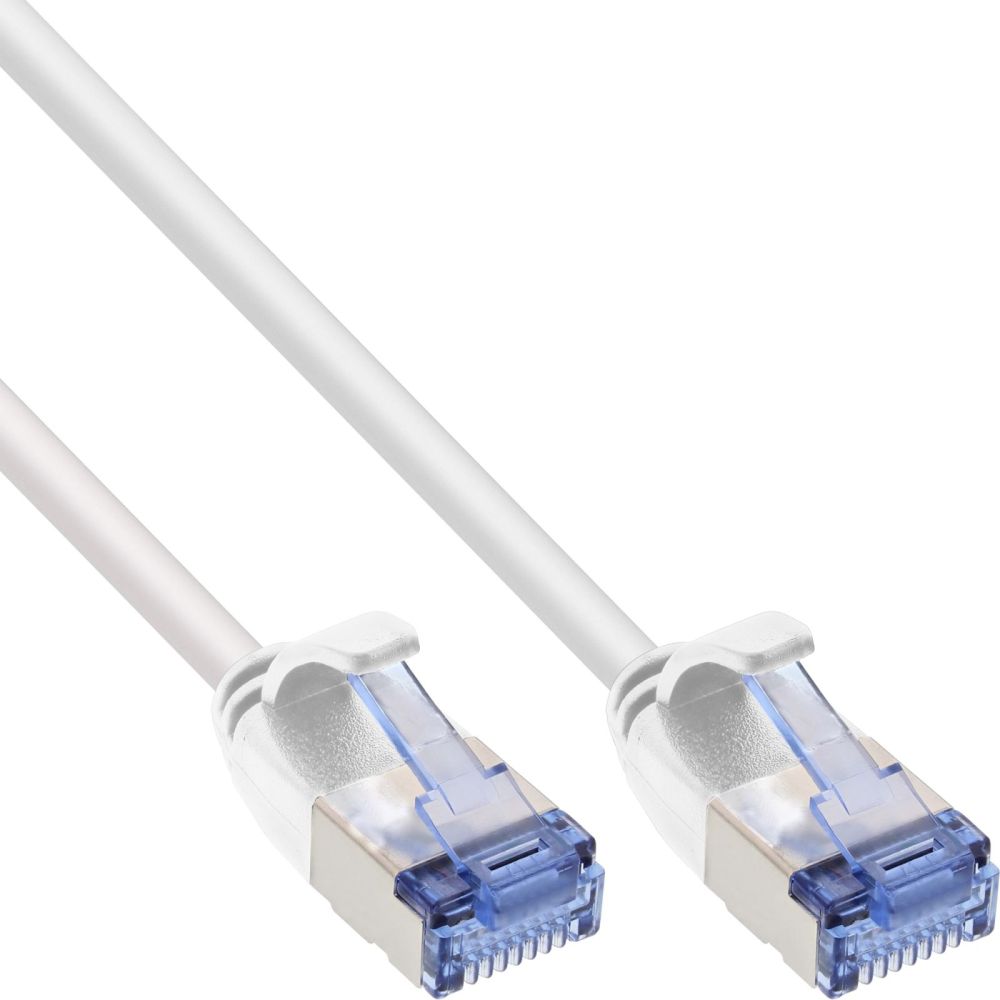

2x shielded RJ45 connectors, 8P8C
1:1 pinout according to EIA/TIA-568B
Gold-plated contact pins
Nickel-plated metal shielding on the connectors

Features
Product colour	White
Cable length	0.3 m
Cable standard	Cat6a
Cable shielding	U/FTP (STP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector 1 gender	Male
Connector 2 gender	Male
Jacket material	Polyvinyl chloride (PVC)
Cable shape	Round
Conductor material	Copper
AWG wire size	32
Other features
Dimensions (WxDxH)	14 x 300 x 12 mm
Cable diameter	4 mm
Packaging data
Package width	80 mm
Package depth	85 mm
Package height	15 mm
Package weight	13 g
Package volume	200 cm³
Technical data
Storage temperature	0 bis +50°C
Design	Round cable slim
Max. supported PoE standard	802.3af
Conductor material	CU (copper)
Operation temperature	-10 to +60°C
Article width	1.20cm
Sheath	PVC
Diameter	AWG 32
Packaging volume	0.0002m³
Article length	30.00cm
Data transmission rate	10Gb/s
Assignment	1:1
Width packaging	0.090m
Max. supported data transfer rate	10Gb/s
Shielding	U/FTP
Type	Cat.6A
Outer diameter	4.0mm
Max. supported power	15.4W
Signal	Network
Length packaging	0.140m
Wire pairs used for power transmission	The specific method used is determined by the PSE (Power Sourcing Equipment)
Height packaging	0.015m
Side A	RJ45 plug straight
Colour	White
Patch cable category	Cat.6A
Length	0.30m
Article height	1.50cm
Weight	0.014kg
Packing	Retail
Side B	RJ45 plug straight
Net weight	0.011kg
UL
PoE/PoE+/PoE++
Weight & dimensions
Width	14 mm
Depth	300 mm
Height	12 mm
Weight	10 g

---
